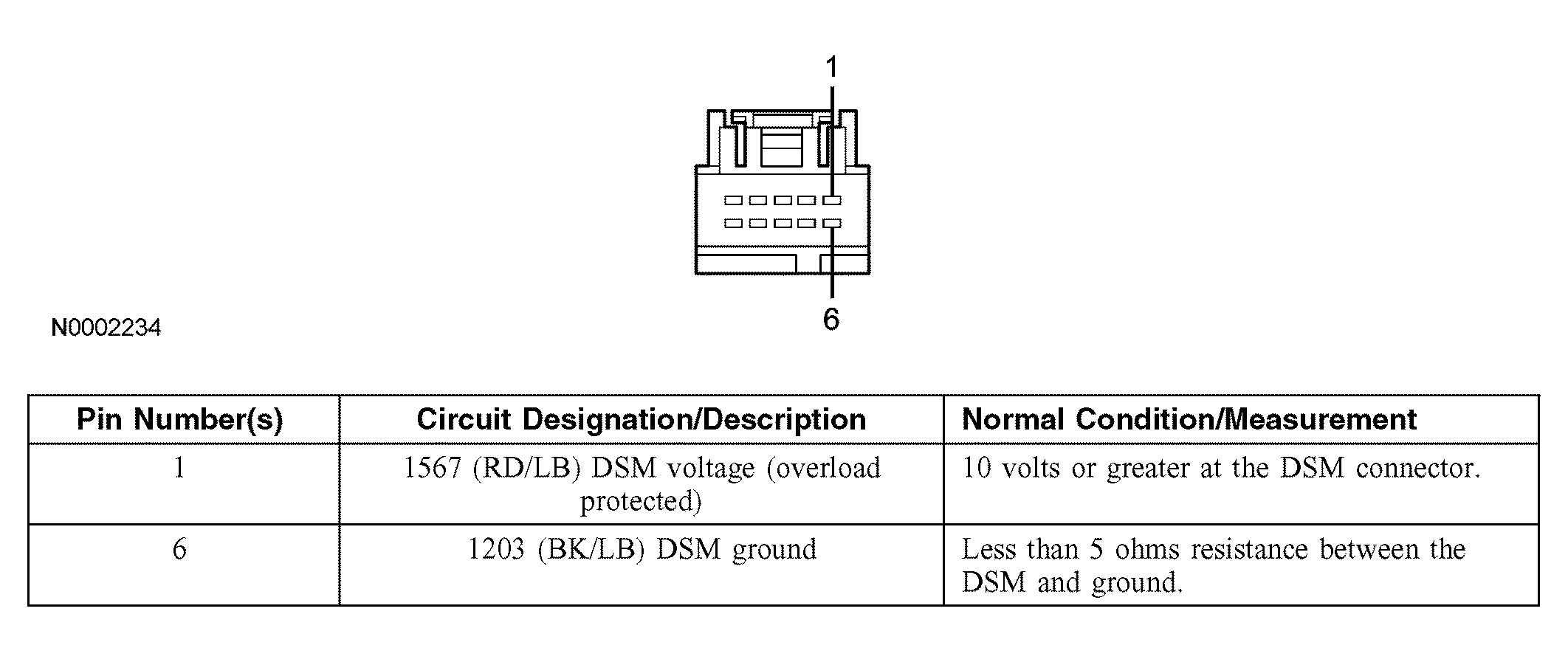

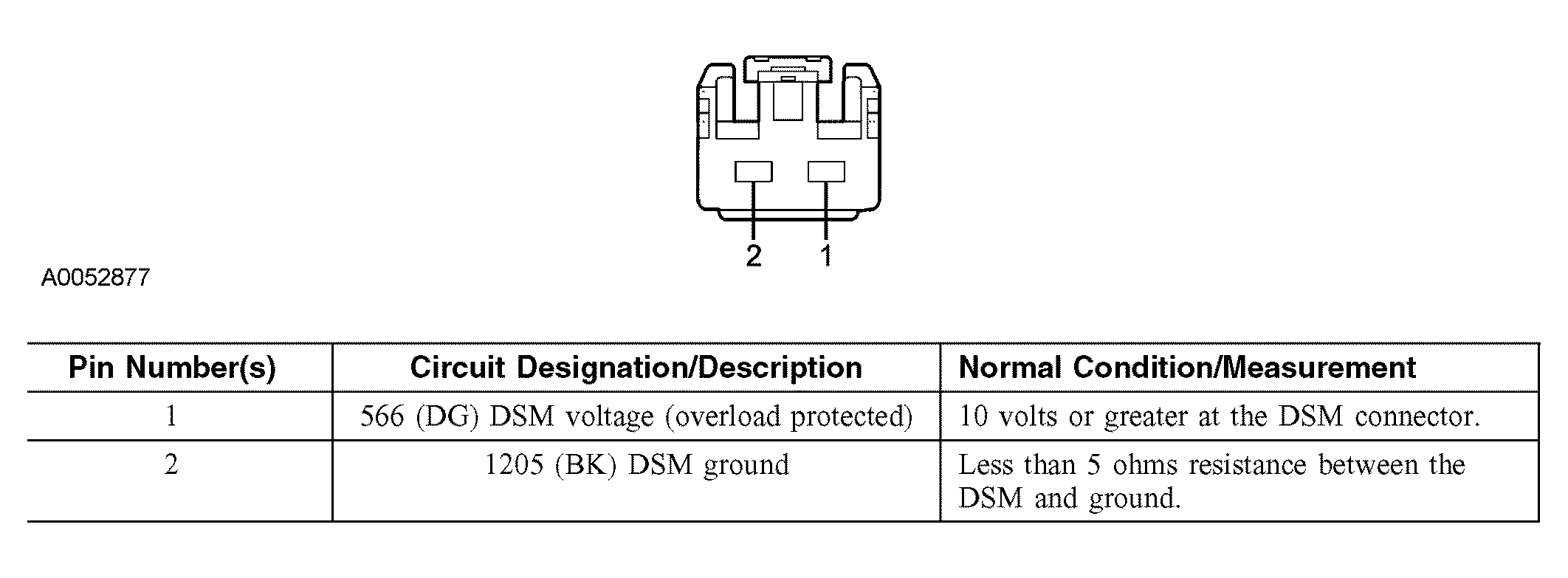

Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> MULTIFUNCTION Electronic Modules System >> Diagnosis And Testing >> Driver Seat Module (DSM) >> Connector Circuit Reference
