Generic Electronic Module (GEM): Removal

CAUTION: Prior to removal of the generic electronic module (GEM), it is necessary to upload the module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

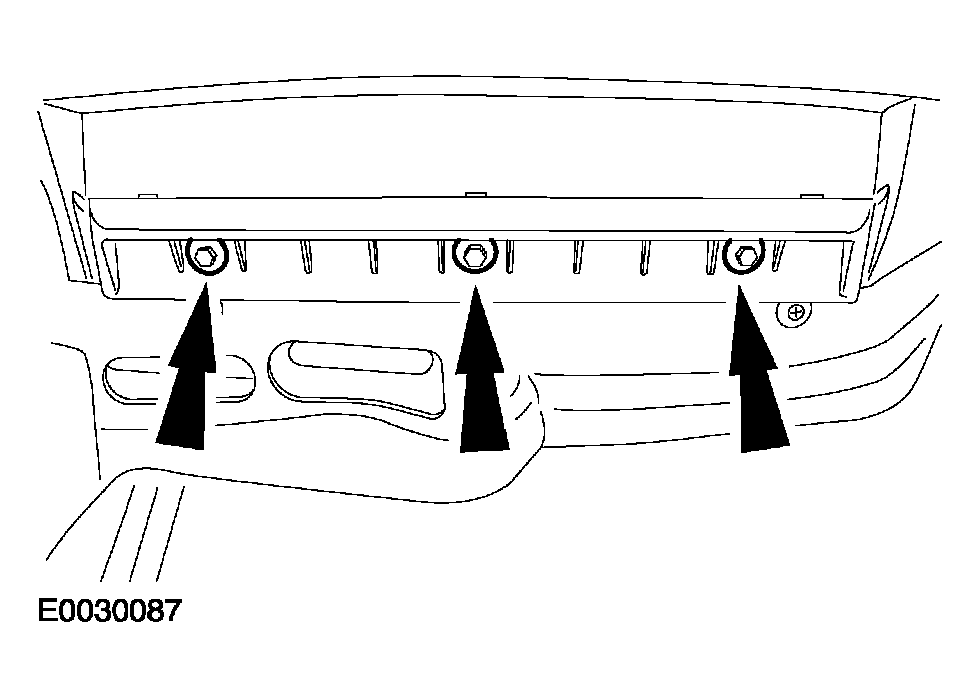

Fig 1: Removing Glove Compartment
Courtesy of FORD MOTOR CO.
1. Remove the glove compartment.
2. Disconnect the GEM electrical connectors.

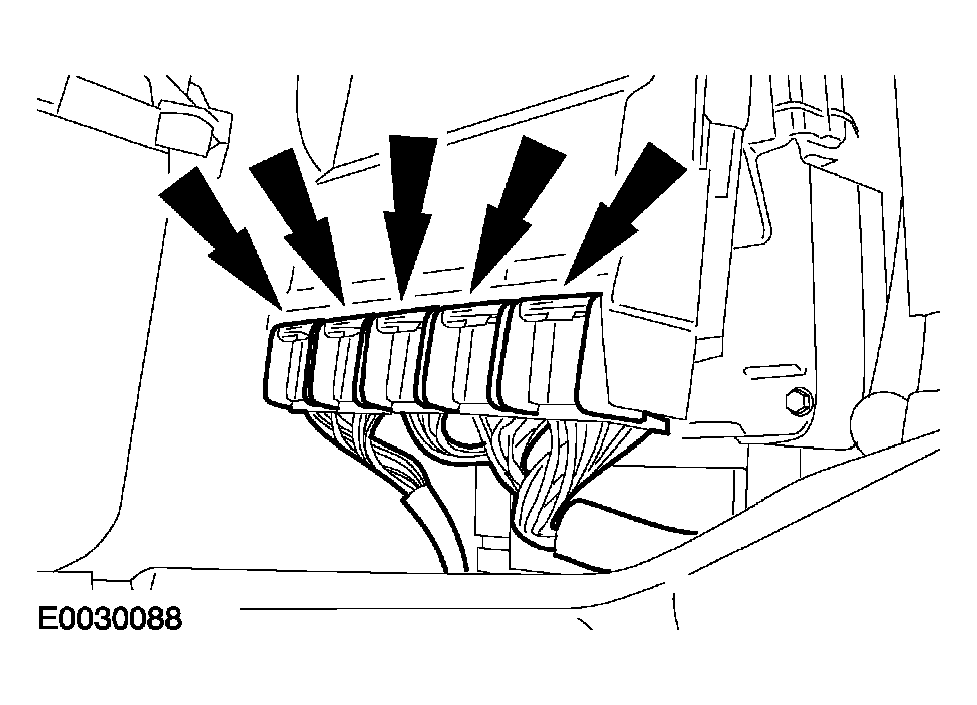

   Fig 2: Disconnecting GEM Electrical Connectors

   Courtesy of FORD MOTOR CO.
3. Remove the GEM.

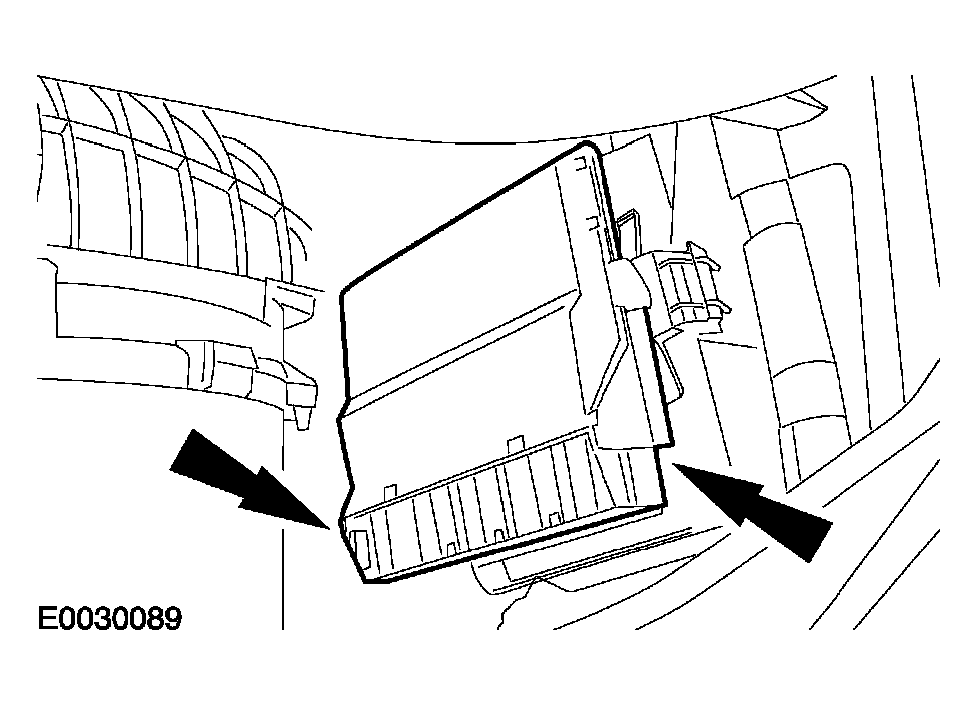

Fig 3: Removing Generic Electronic Module

Courtesy of FORD MOTOR CO.
