Speed Control Deactivator Switch: Removal

    NOTE: Brake pedal position switch (BPP) and clutch pedal position (CPP) switch removed for clarity.

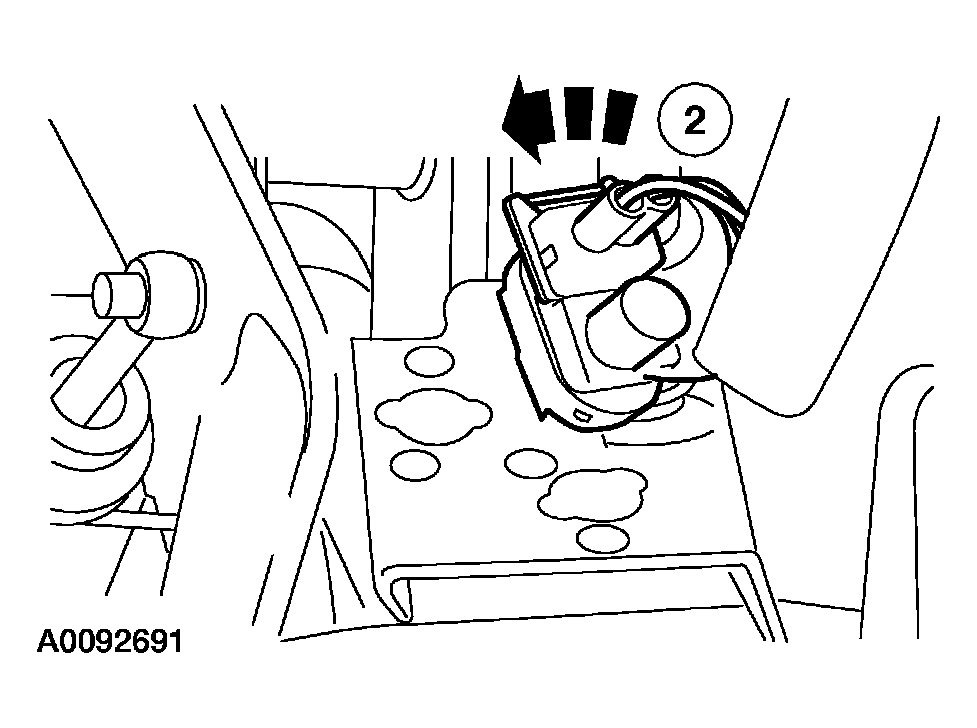

    Fig 1: Removing Speed Control Deactivator Switch
    G03951931Courtesy of FORD MOTOR CO.
  1. Remove the speed control deactivator switch.
    1. Disconnect the electrical connector.
    2. Rotate the speed control deactivator switch counterclockwise.
  2. Pull out the speed control deactivator switch plunger until it is fully extended.
    1. Measure the plunger length. It should measure 24 mm (0.94 in).
    Fig 2: Measuring Plunger Length
    G03951916Courtesy of FORD MOTOR CO.
