Pinpoint Test E: The Speed Control Switch Is Inoperative
- E1 CHECK THE SPEED CONTROL SWITCH
- Key in OFF position.
- Disconnect: Speed Control Actuator C122.

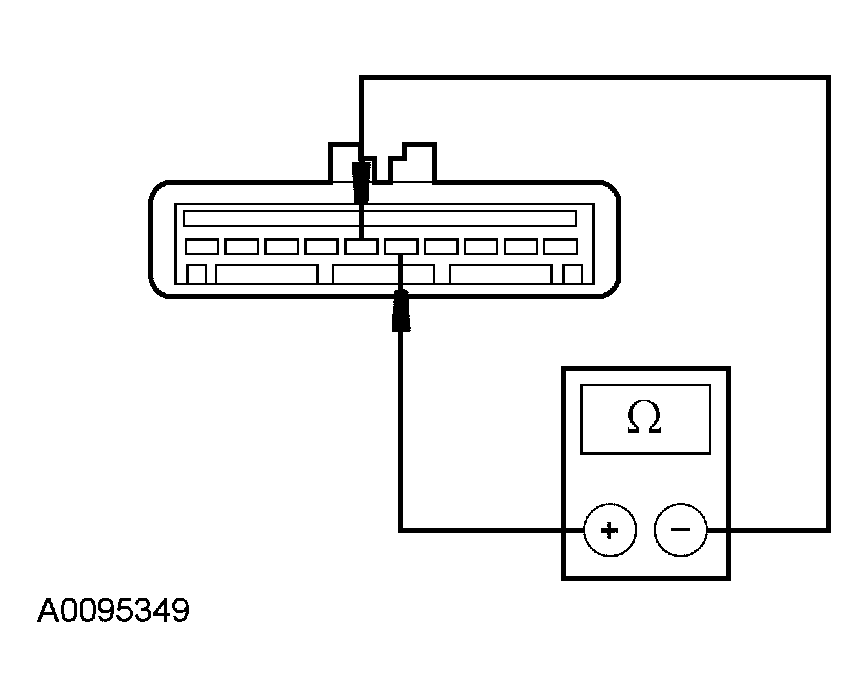

- Measure the resistance between the speed control actuator C122 pin 5, circuit 8-PG13 (WH), harness side and the speed control actuator C122 pin 6, circuit 9-PG13 (BN), harness side while pressing the speed control switch as follows:SPEED CONTROL SWITCH RESISTANCE
Speed Control Switch Resistance Value COAST Between 114 and 126 ohms SET/ACC Between 612 and 748 ohms RES Between 2,090 and 2,310 ohms OFF Less than 5 ohms - Are the speed control switch resistance values OK?
- Yes : INSTALL a new speed control actuator. REFER to SPEED CONTROL ACTUATOR . TEST the system for normal operation.
- No : INSTALL a new speed control switch. REFER to SPEED CONTROL SWITCH . TEST the system for normal operation.
