Steering Column

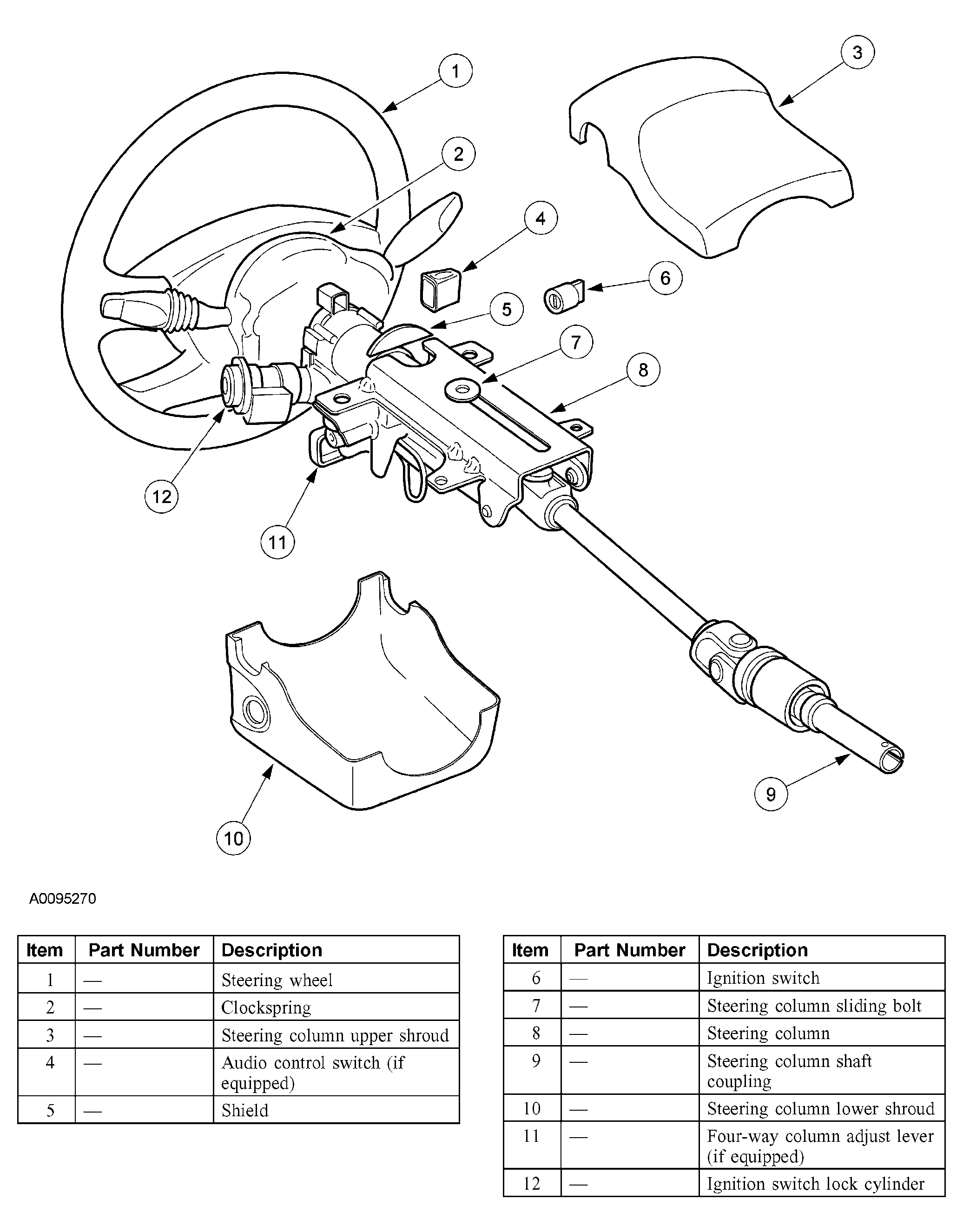

Fig 1: Identifying Steering Column Components

G03950229

Courtesy of FORD MOTOR CO.
