Manual Transaxle: Notes

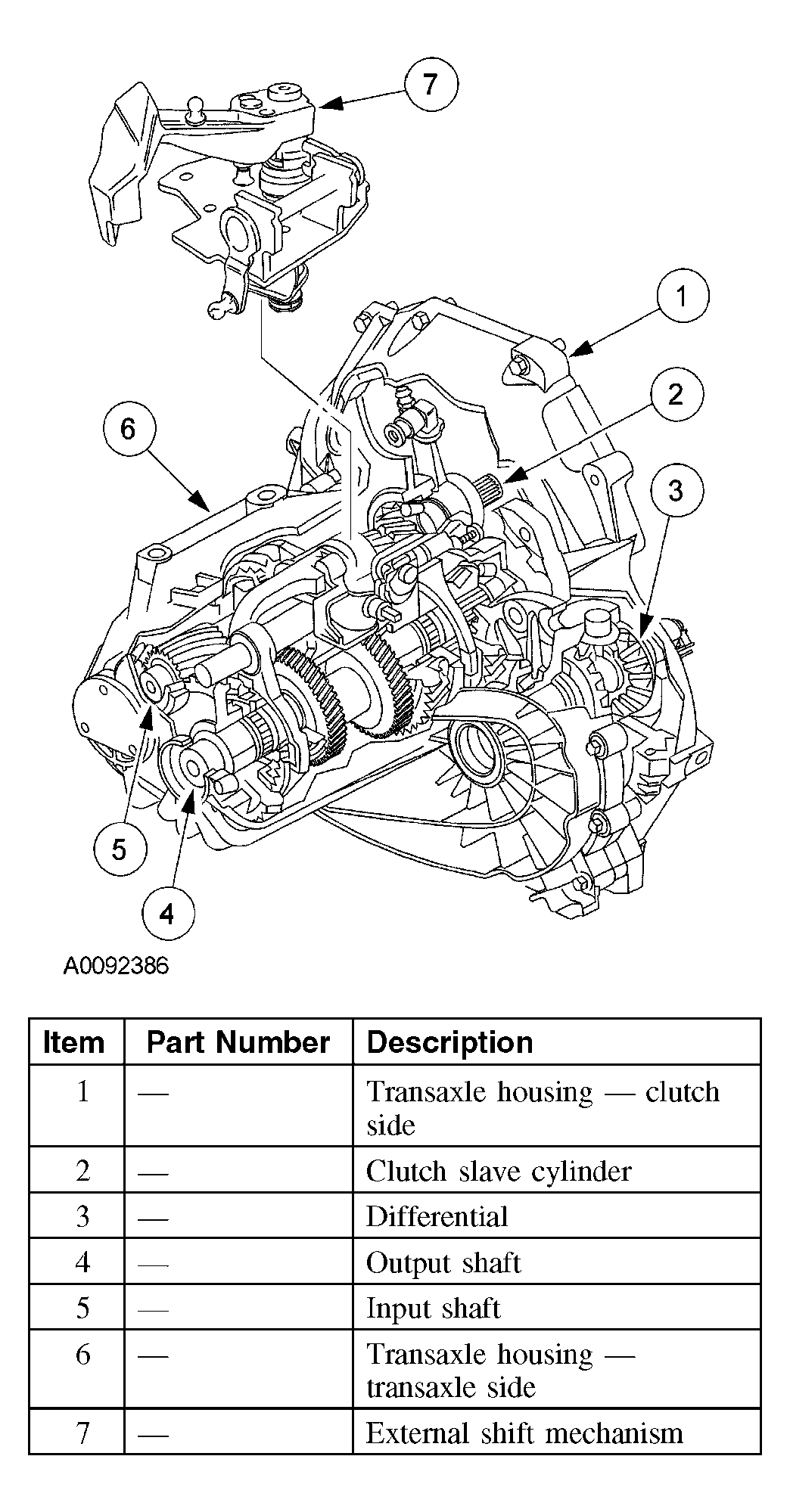

The MTX-75 is a five speed synchronized unit. The MTX-75 has the following features:
- Two-part aluminum housing
- The input shaft has two tapered roller bearings. Input shaft end play is controlled by a selective shim located under the bearing cup.
- The output shaft has two tapered roller bearings. Output shaft end play is controlled by a selective shim located under the bearing cup.
- The differential has two tapered roller bearings. Differential end play is controlled by a selective shim located under the bearing cup.
- All gears are bevel cut.
- All gears, including reverse, turn on needle bearings.
- Synchronized in all gears.
- First and second gear are dual synchronized.
- Single piece brass shift forks.
The input shaft, output shaft, and the differential assembly are assembled under preload. If the transmission is disassembled, a preload measurement must be taken.
