Speed Control Deactivator Switch: Installation
- Apply the brake pedal.

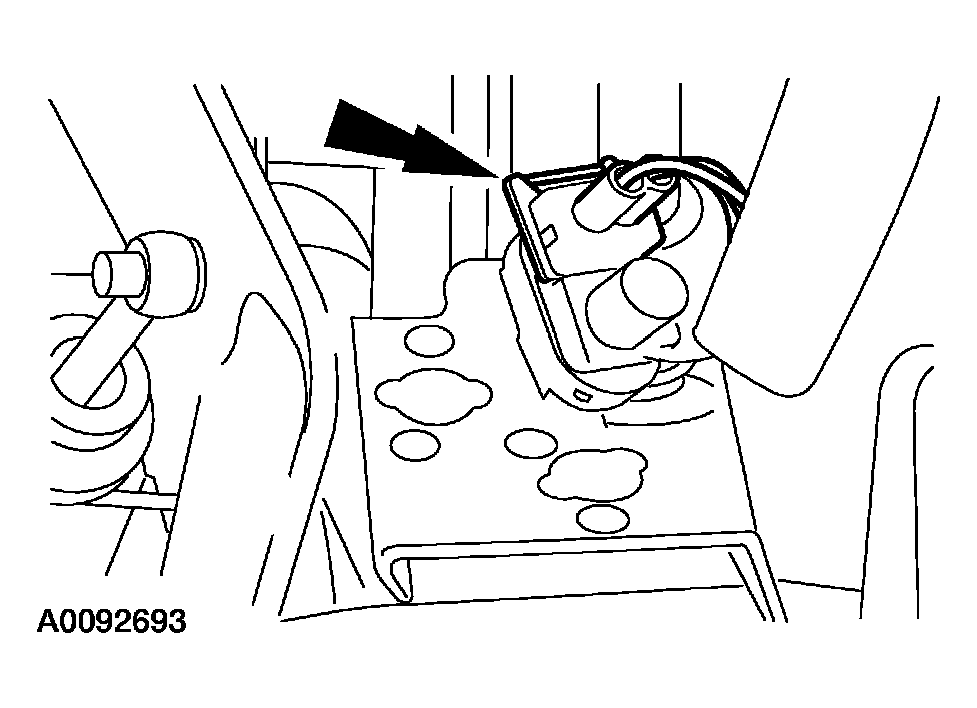

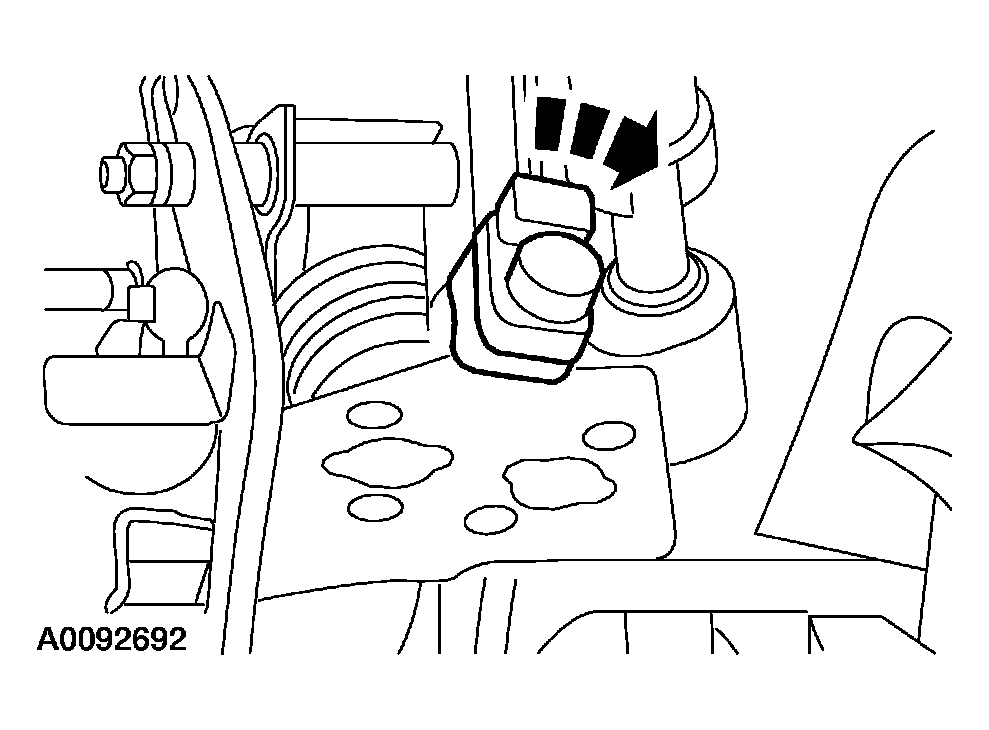

- Install the speed control deactivator switch by turning the switch clockwise.
- Slowly release the brake pedal.
- Connect the electrical connector to the speed control deactivator switch.
CAUTION:
When installing the deactivator switch, the switch is rotated clockwise. Failure to follow this instruction will result in the switch plunger binding inside the switch.
NOTE:
The speed control deactivator switch is automatically adjusted during installation.
NOTE:
A slight ratcheting noise and feel during installation of the speed control deactivator switch is normal.
