Transmission Selector Lever Knob: Installation

    CAUTION: When installing the selector lever knob, make sure the wiring harness is positioned forward and is centered on the shift lever shaft, or damage to the shift lever or wiring harness will occur.

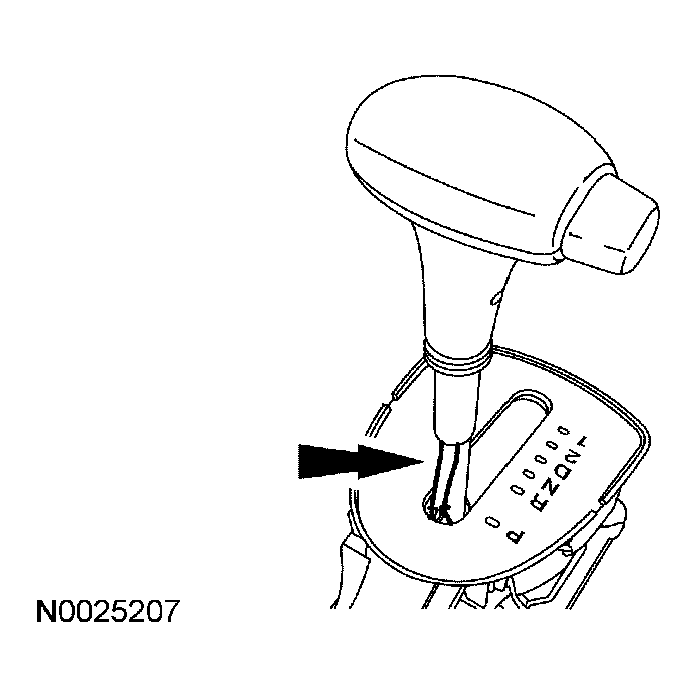

    Fig 1: Installing Selector Onto Lever
    G03951793Courtesy of FORD MOTOR CO.
  1. Position the selector lever knob onto the lever and route the wiring harness through the transmission range indicator.
  2. Slide the selector lever knob down the shaft and install the screw.

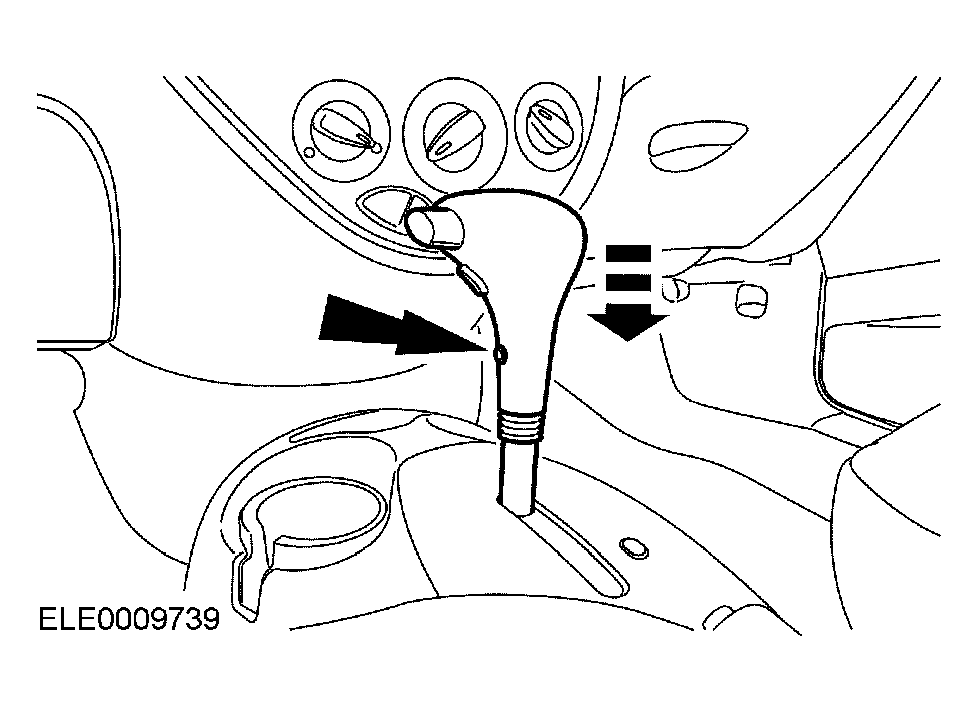

    Fig 2: Sliding Selector Lever Knob Down Shaft
    G03951794Courtesy of FORD MOTOR CO.
  3. Connect the O/D switch electrical connector (selector lever assembly removed shown).
  4. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
    Fig 3: Installing Floor Console
    G03951753Courtesy of FORD MOTOR CO.
