Removal and Installation

Remove the steering column upper shroud.
- Using a suitable tool, release the 2 clips (one on each side).

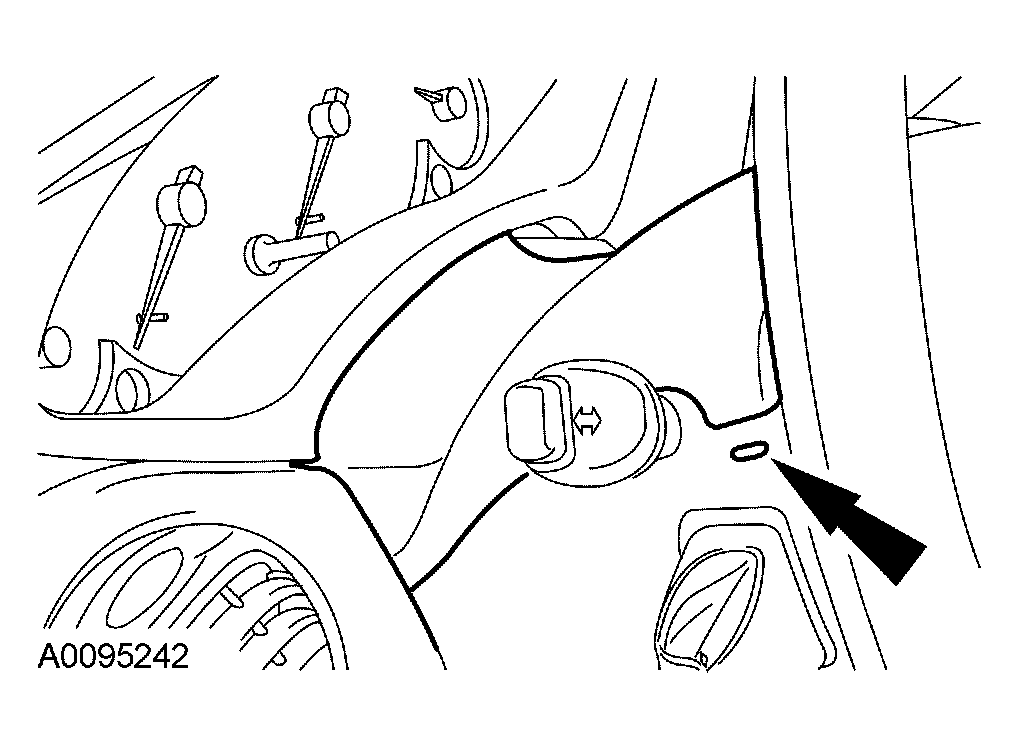

Fig 1: Removing Steering Column Upper Shroud
Courtesy of FORD MOTOR CO.
Remove the audio control switch (if equipped).
- Using a suitable tool, release the locking tab.
- Disconnect the electrical connector.

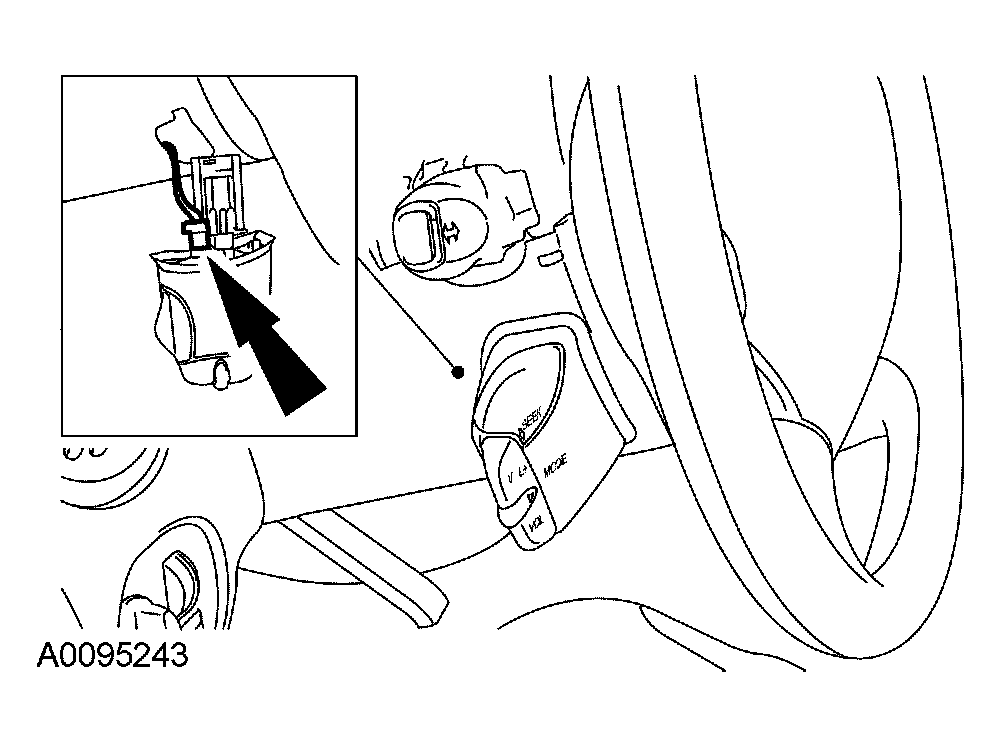

Fig 2: Removing Audio Control Switch
Courtesy of FORD MOTOR CO.
Remove the steering column lower shroud.
1. Release the steering column locking lever (if equipped).
2. Remove the screws.

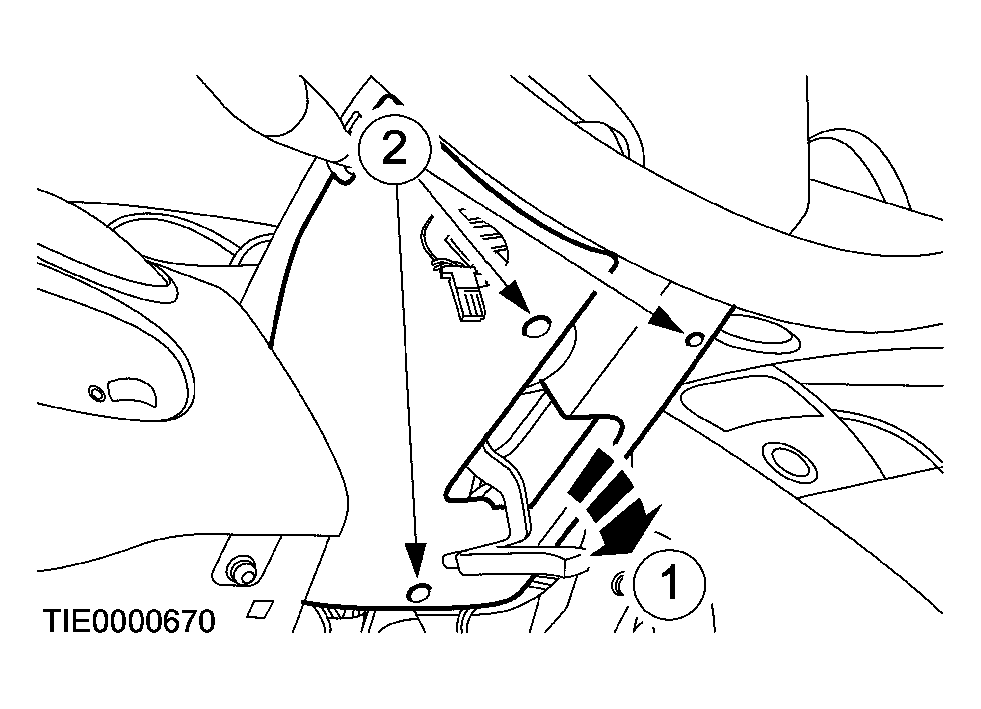

Fig 3: Removing Steering Column Lower Shroud
Courtesy of FORD MOTOR CO.

NOTE: LH multifunction switch shown, RH similar.

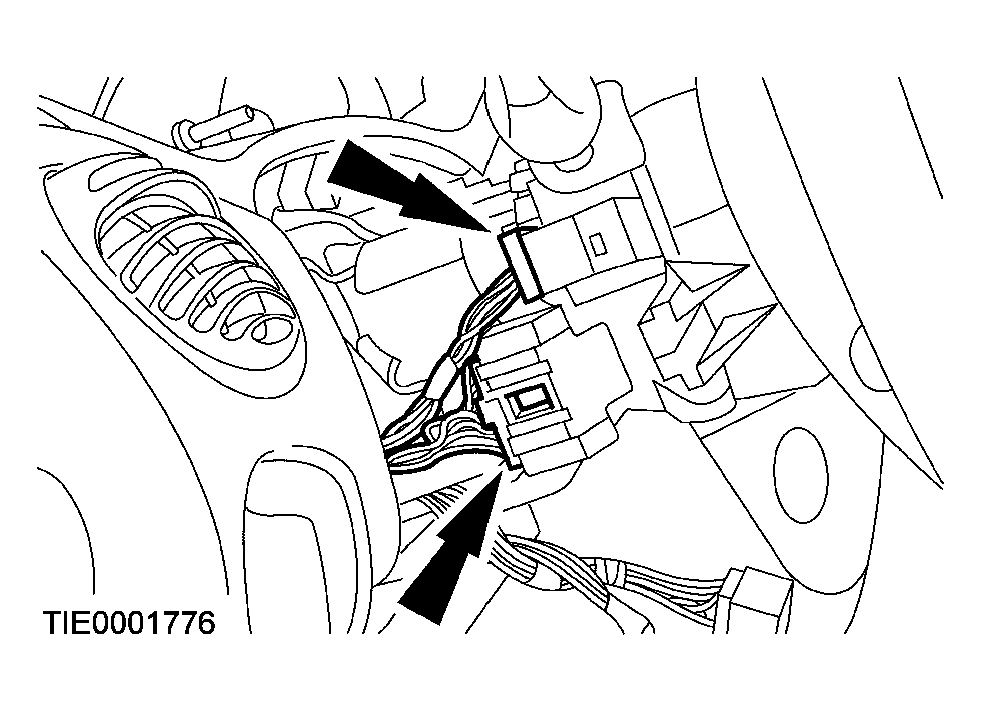

Fig 4: Disconnecting Electrical Connectors

Courtesy of FORD MOTOR CO.

Disconnect the electrical connectors.
Remove the multifunction switch.
1. Press the locking tab.
2. Lift the multifunction switch upwards.

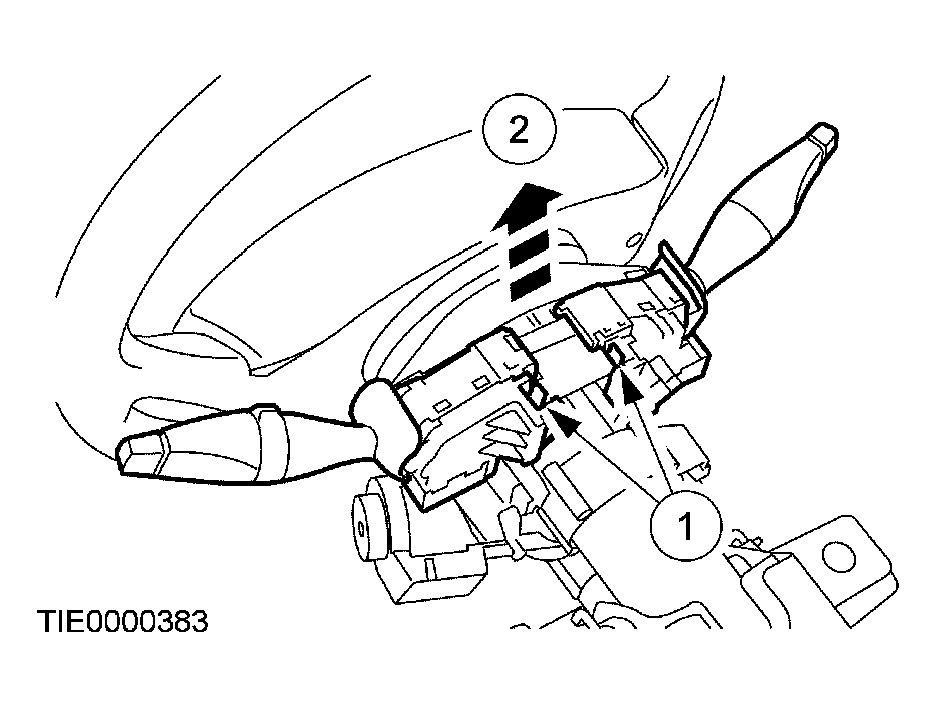

Fig 5: Removing Multifunction Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
