Removal and Installation

  1. Disconnect the power steering pressure (PSP) switch electrical connector.

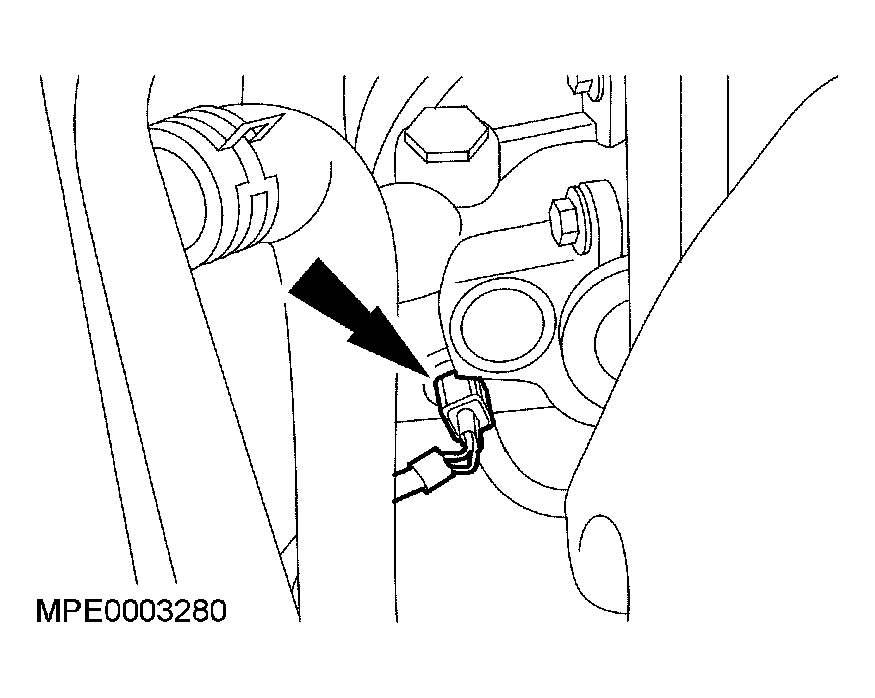

    Fig 1: Disconnecting Power Steering Pressure Switch Electrical Connector
    G03951155Courtesy of FORD MOTOR CO.
  2. Remove the PSP switch.

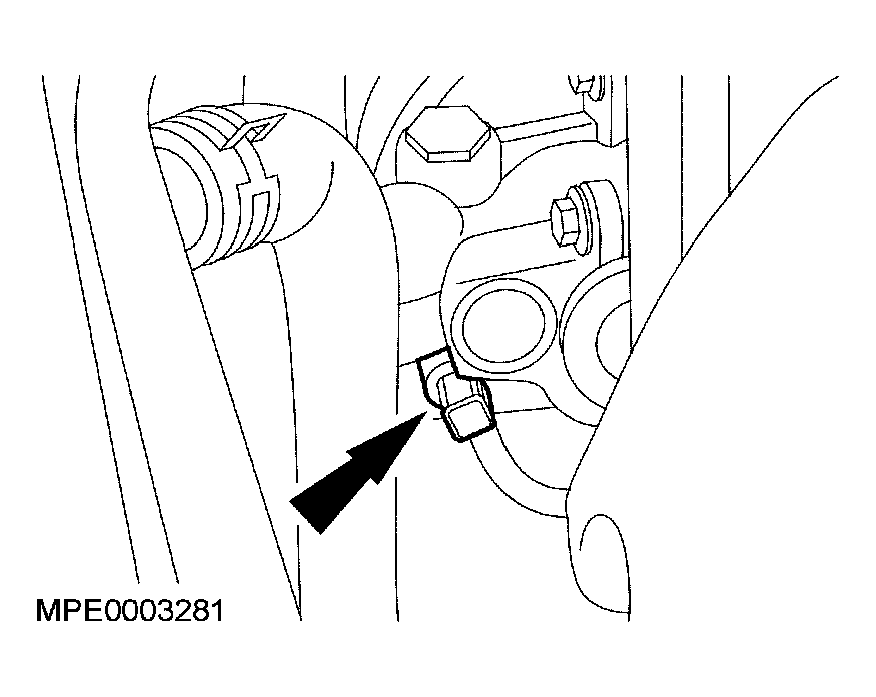

    Fig 2: Removing PSP Switch
    G03951156Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

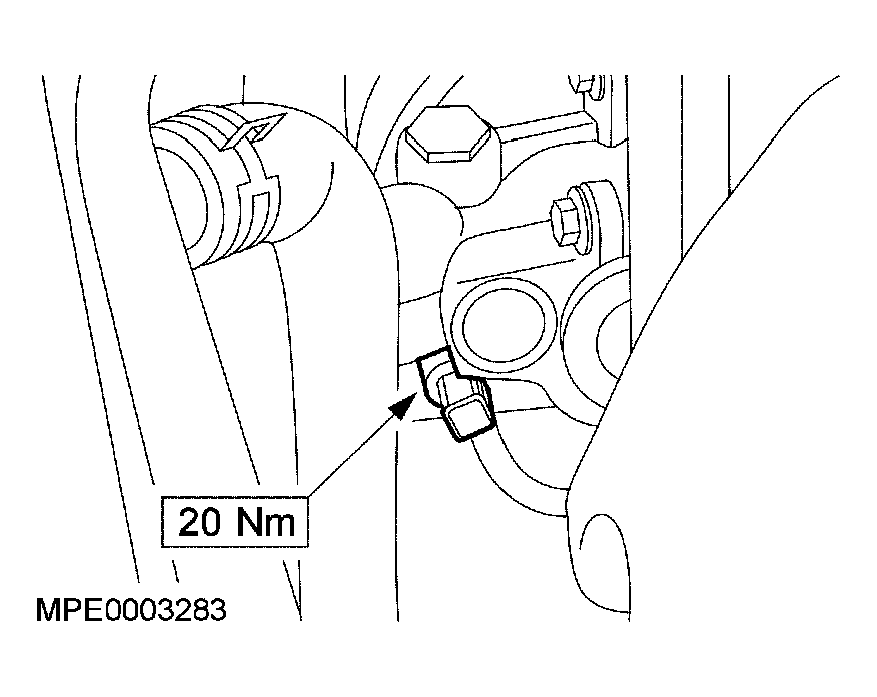

    Fig 3: Installing PSP Switch
    G03951157Courtesy of FORD MOTOR CO.
