Removal and Installation

Remove the wheel and tire assembly. For additional information, refer to WHEELS AND TIRES .
Detach the brake hose from the support bracket and detach the stabilizer bar connecting link.

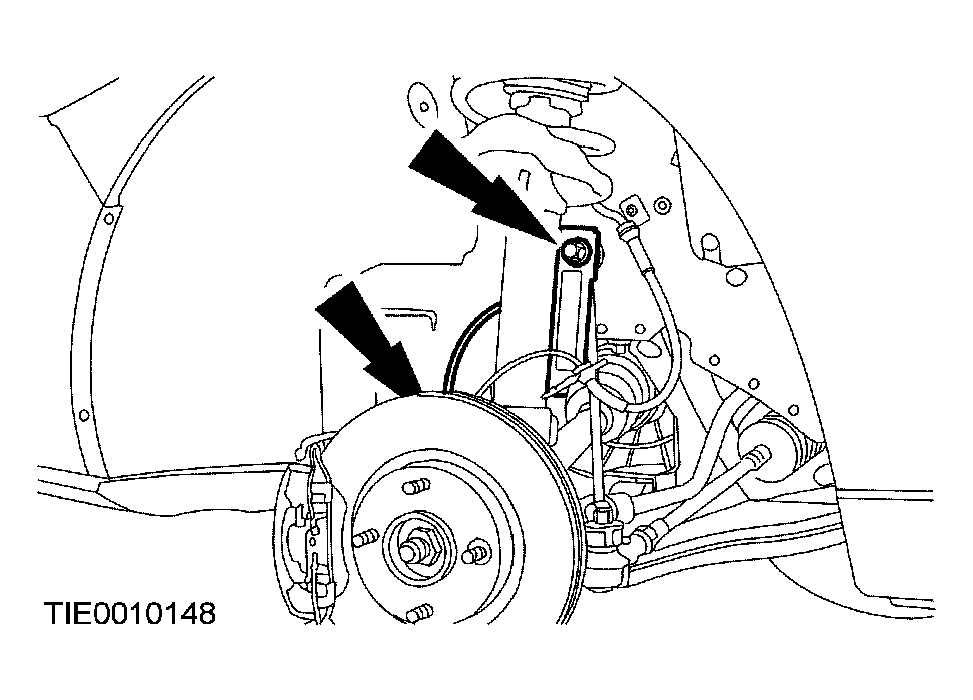

Fig 1: Detaching Brake Hose From Support Bracket And Stabilizer Bar Connecting Link
Courtesy of FORD MOTOR CO.
Remove the wheel knuckle bolt.

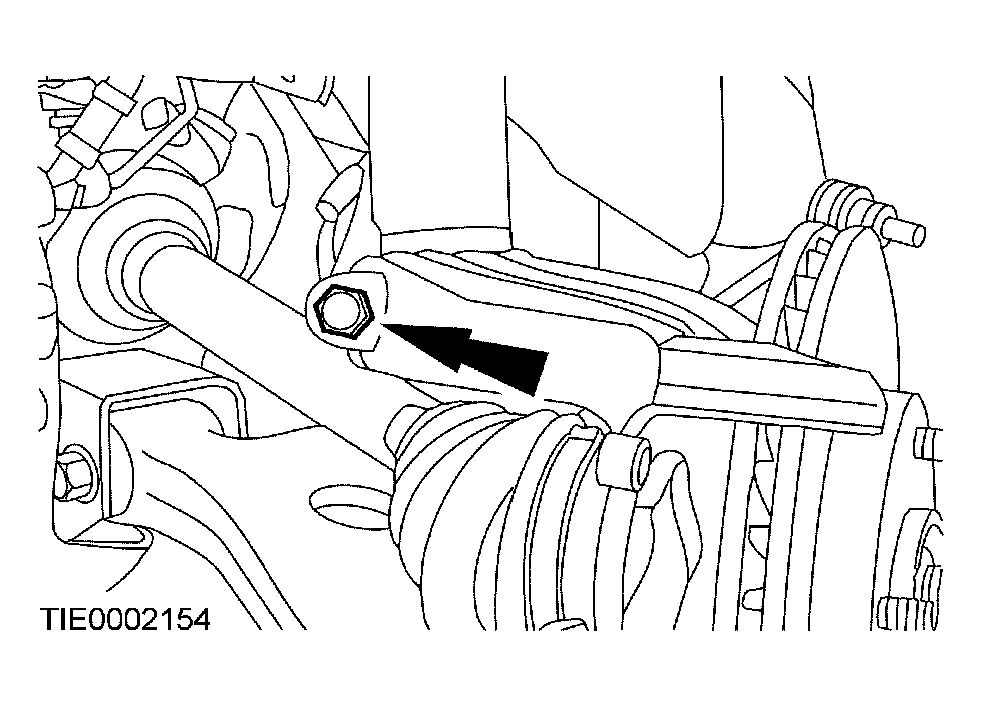

Fig 2: Removing Wheel Knuckle Bolt
Courtesy of FORD MOTOR CO.
Detach the wheel knuckle.
1. Using a suitable lever, release the knuckle.
2. Detach the wheel knuckle.
  - Support the halfshaft out of the way.

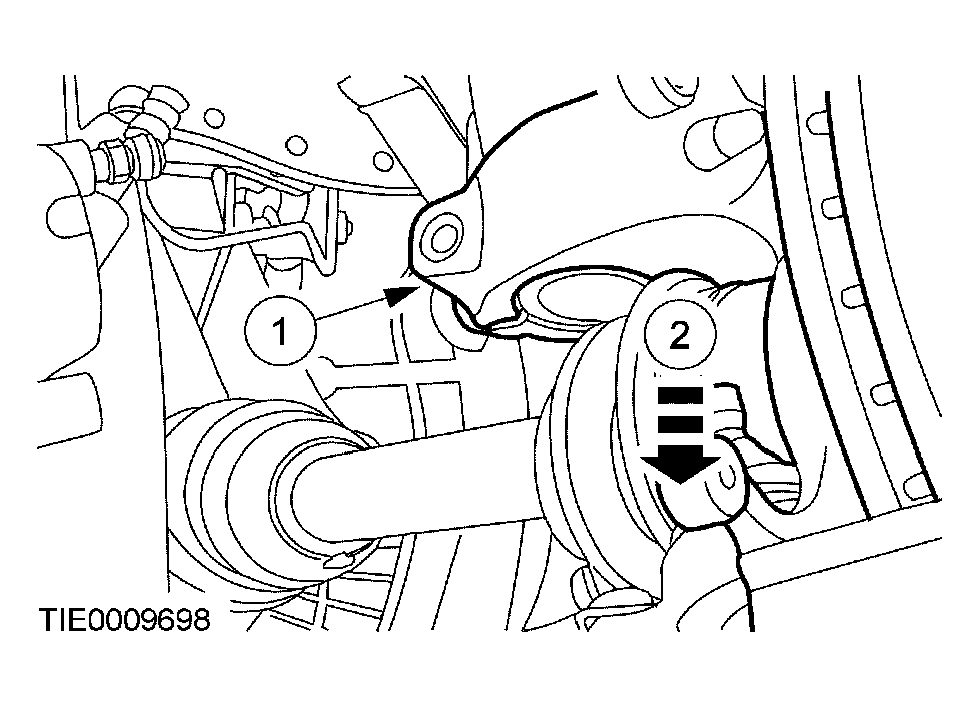

Fig 3: Detaching Wheel Knuckle
Courtesy of FORD MOTOR CO.

CAUTION: Support the strut and spring assembly to prevent damage.

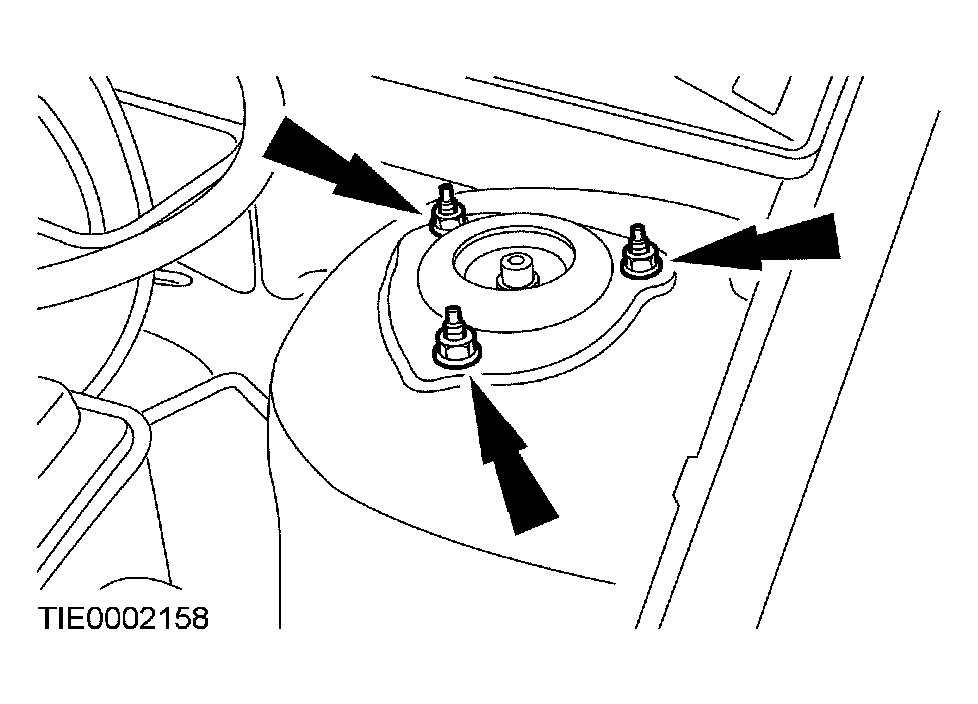

Fig 4: Removing Strut Tower Nuts

Courtesy of FORD MOTOR CO.

Remove the strut tower nuts.
Remove the strut and spring assembly.
To install, reverse the removal procedure.

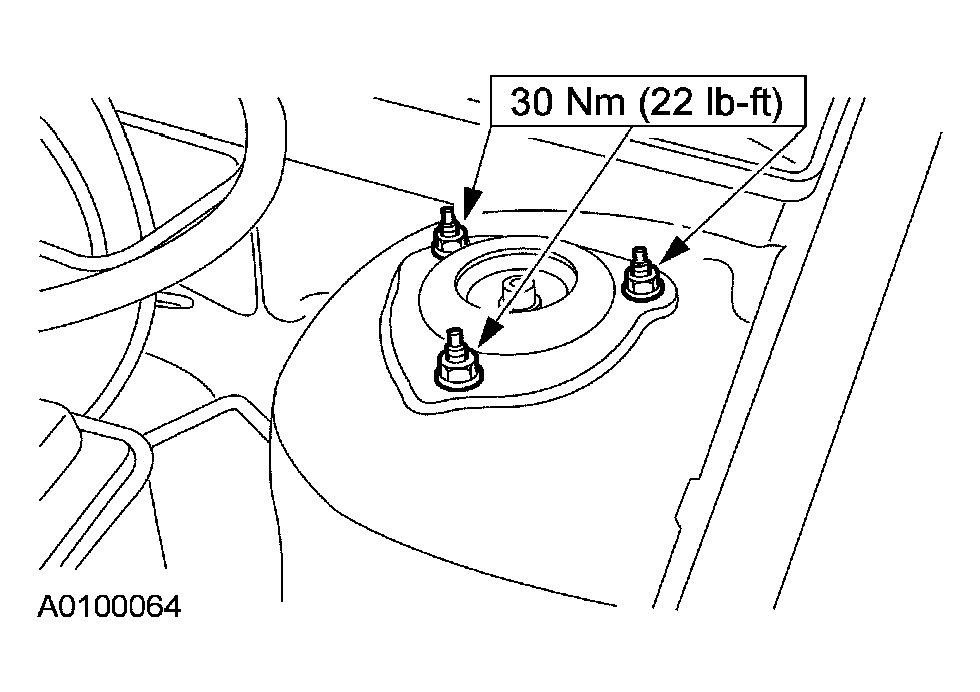

Fig 5: Installing Strut Tower Nuts
Courtesy of FORD MOTOR CO.

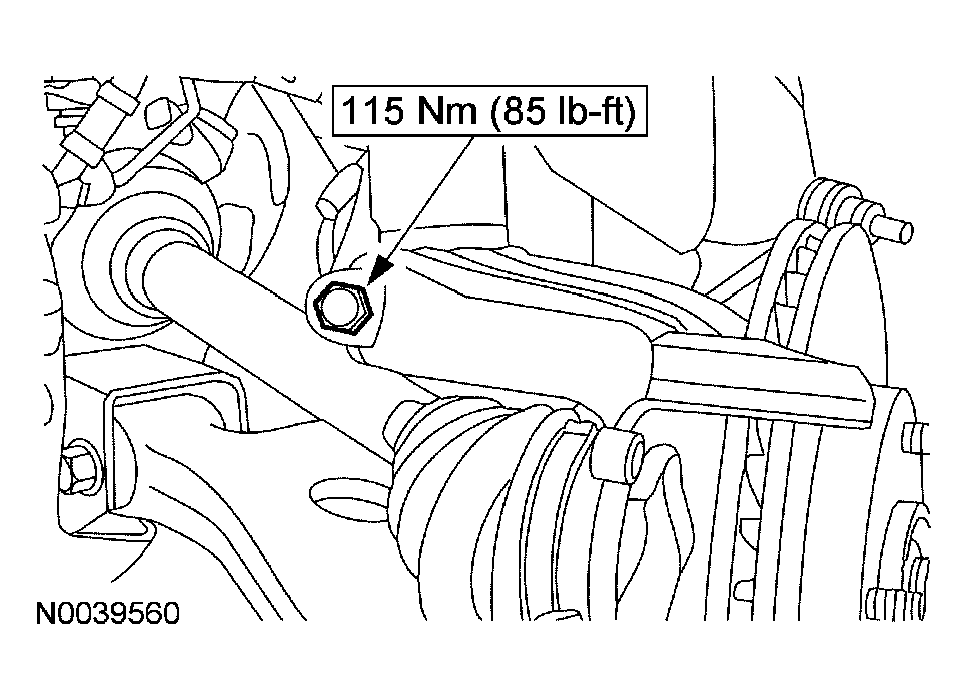

Fig 6: Installing Wheel Knuckle Bolt
Courtesy of FORD MOTOR CO.
Check the front wheel alignment. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .

Fig 7: Checking Front Wheel Alignment
Courtesy of FORD MOTOR CO.
