Block Heater: Installation

  1. Install the block heater.

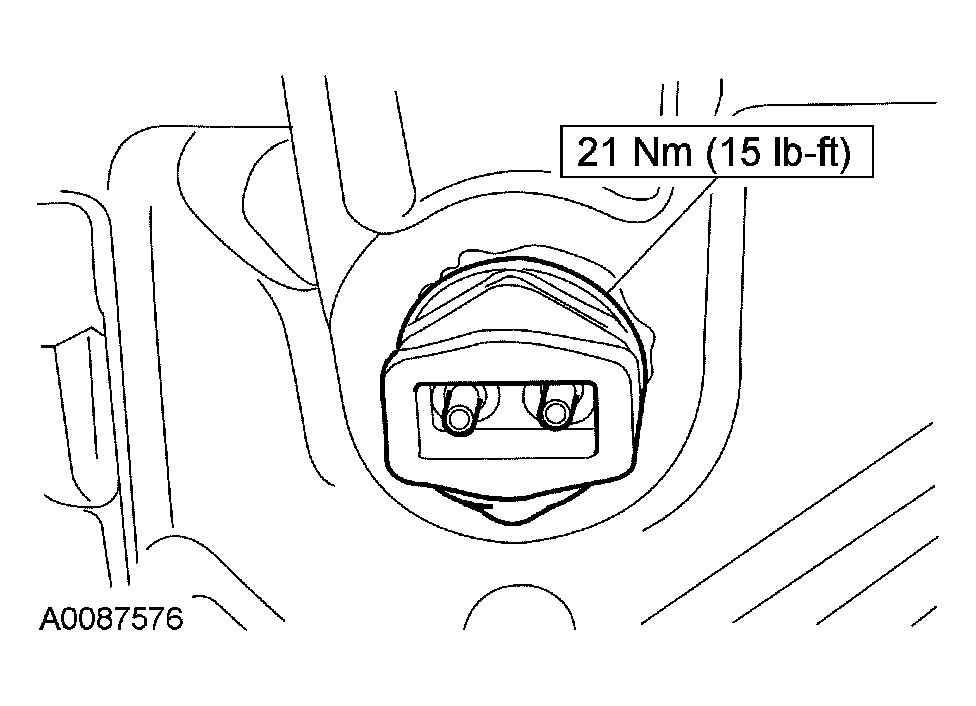

    Fig 1: Installing Block Heater
    G03950843Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the block heater wiring is routed and secured away from rotating or hot components, or damage to the wiring can occur.

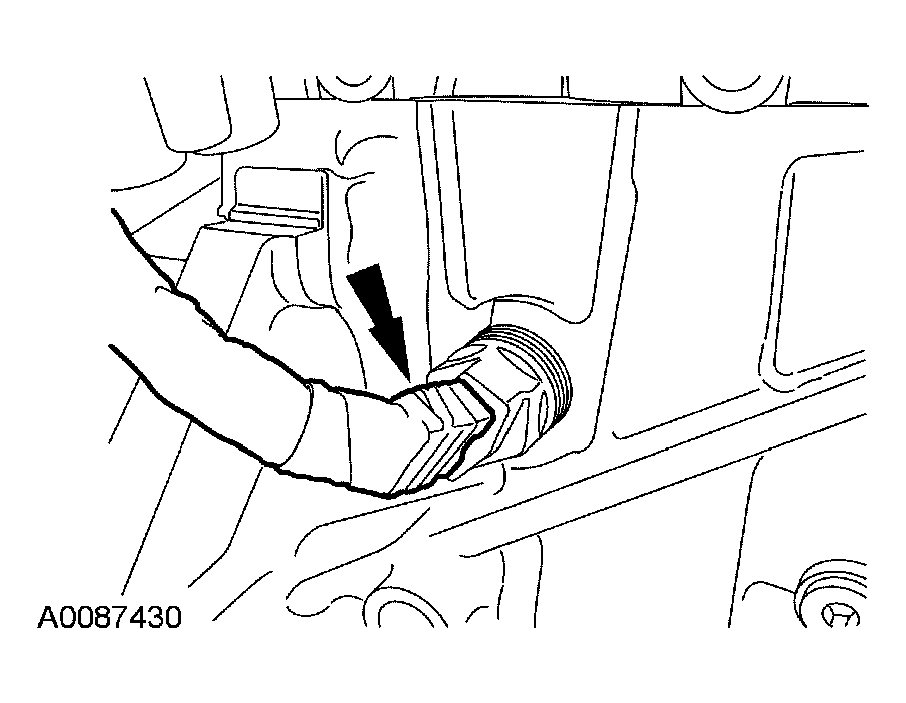

    Fig 2: Connecting Block Heater Electrical Connector
    G03897864Courtesy of FORD MOTOR CO.
  2. Connect the block heater electrical connector.
  3. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
