Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07845742

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07845743

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07845744

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07845745

Courtesy of FORD MOTOR CO.

Fig 5: Generator Connector End View (C102c)

G07845746

Courtesy of FORD MOTOR CO.

Fig 6: Oil Pressure Switch Connector End View (C103)

G07845747

Courtesy of FORD MOTOR CO.

Fig 7: Knock Sensor Connector End View (C109)

G07845748

Courtesy of FORD MOTOR CO.

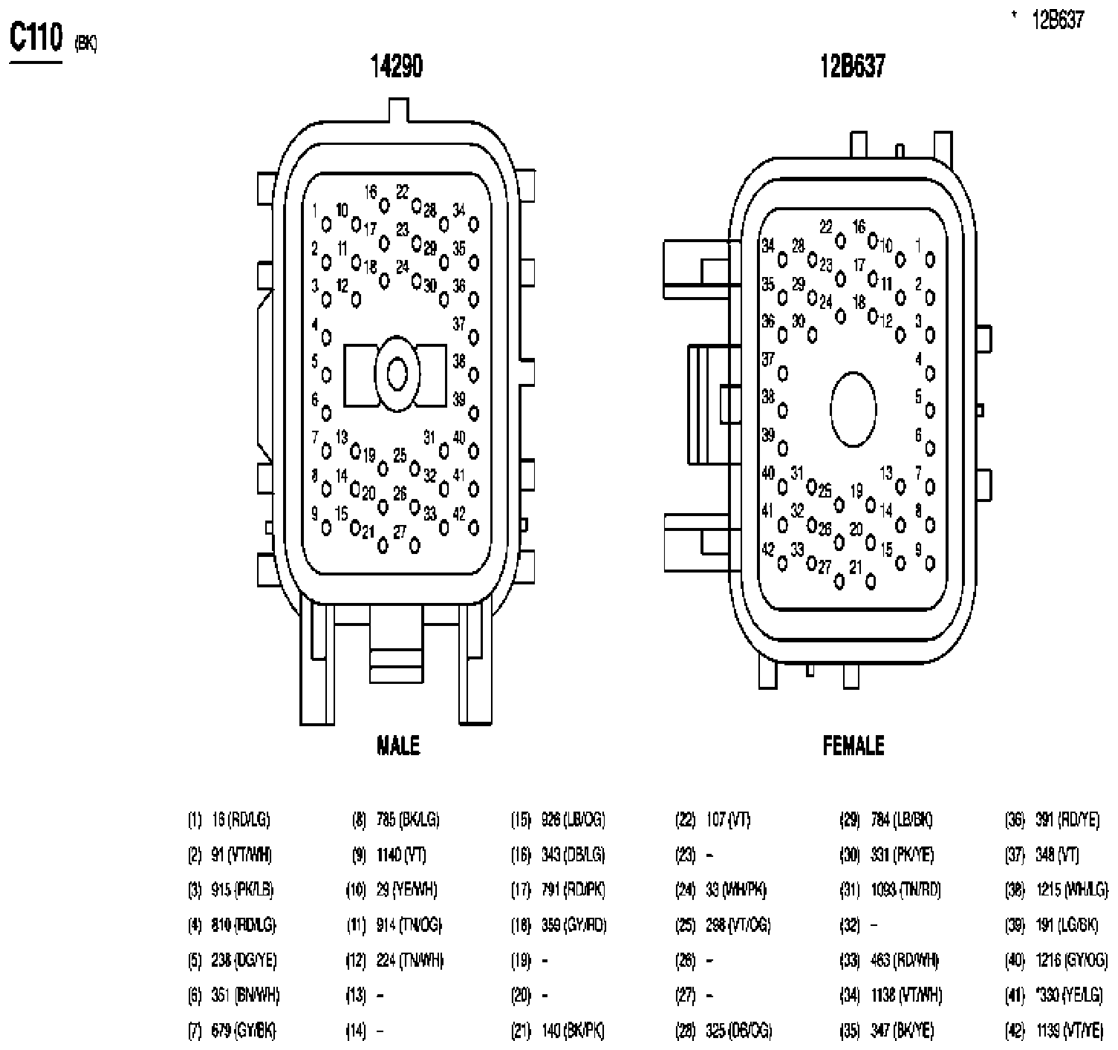

Fig 8: Inline Connector End View (C110)

G07845749

Courtesy of FORD MOTOR CO.

Fig 9: Speed Control Actuator Connector End View (C122)

G07845750

Courtesy of FORD MOTOR CO.

Fig 10: Brake Fluid Level Switch Connector End View (C124)

G07845751

Courtesy of FORD MOTOR CO.

Fig 11: Windshield Wiper Motor Connector End View (C125)

G07845752

Courtesy of FORD MOTOR CO.

Fig 12: ABS Test Connector End View (C126)

G07845753

Courtesy of FORD MOTOR CO.

Fig 13: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07845754

Courtesy of FORD MOTOR CO.

Fig 14: Horn Connector End View (C131)

G07845755

Courtesy of FORD MOTOR CO.

Fig 15: Ambient Air Temperature Sensor Connector End View (C132)

G07845756

Courtesy of FORD MOTOR CO.

Fig 16: ABS Control Module Connector End View (C135)

G07845757

Courtesy of FORD MOTOR CO.

Fig 17: Windshield Washer Pump Motor Connector End View (C137)

G07845758

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C139)

G07845759

Courtesy of FORD MOTOR CO.

Fig 19: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07845760

Courtesy of FORD MOTOR CO.

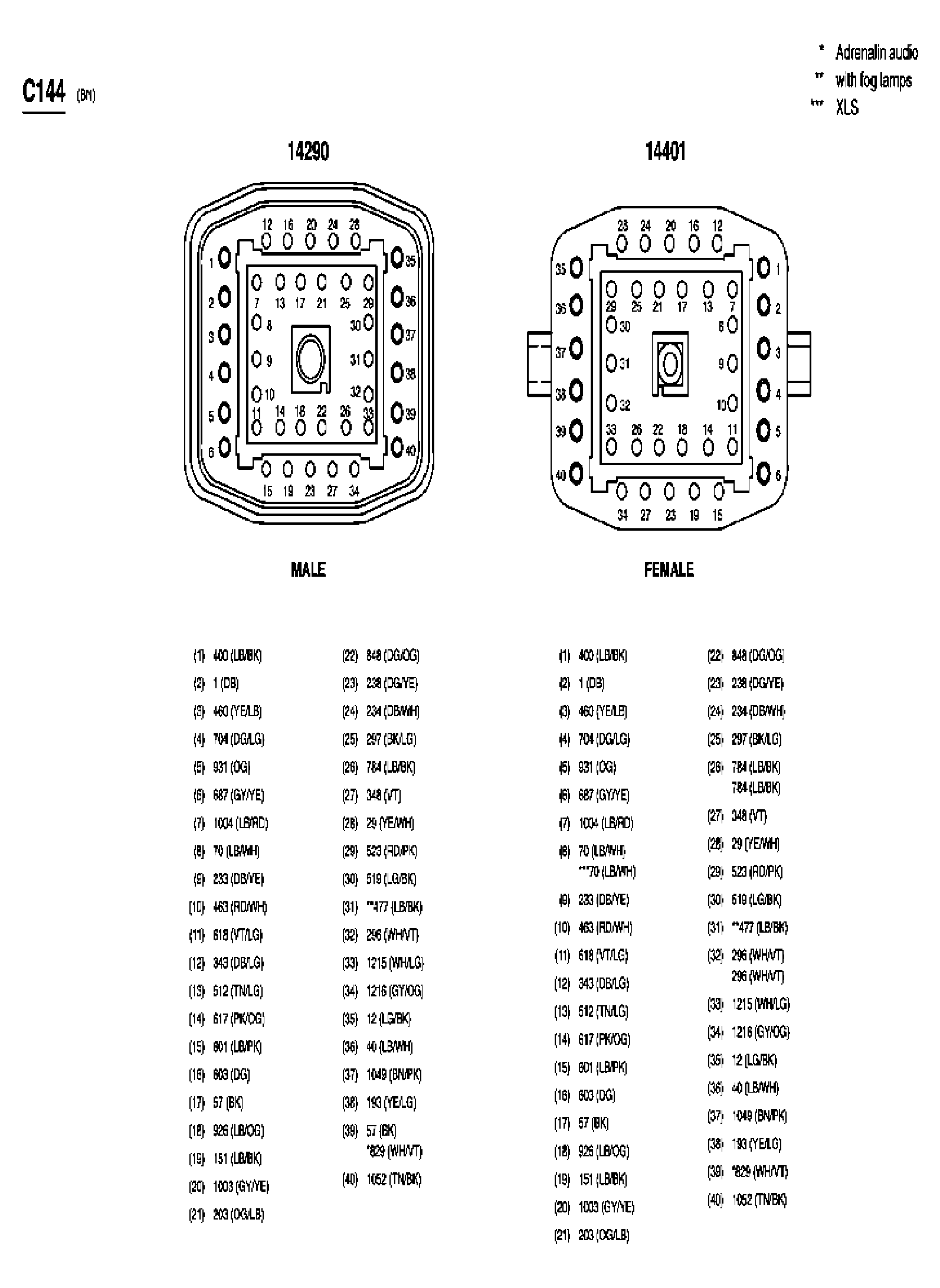

Fig 20: Inline Connector End View (C144)

G04000335

Courtesy of FORD MOTOR CO.

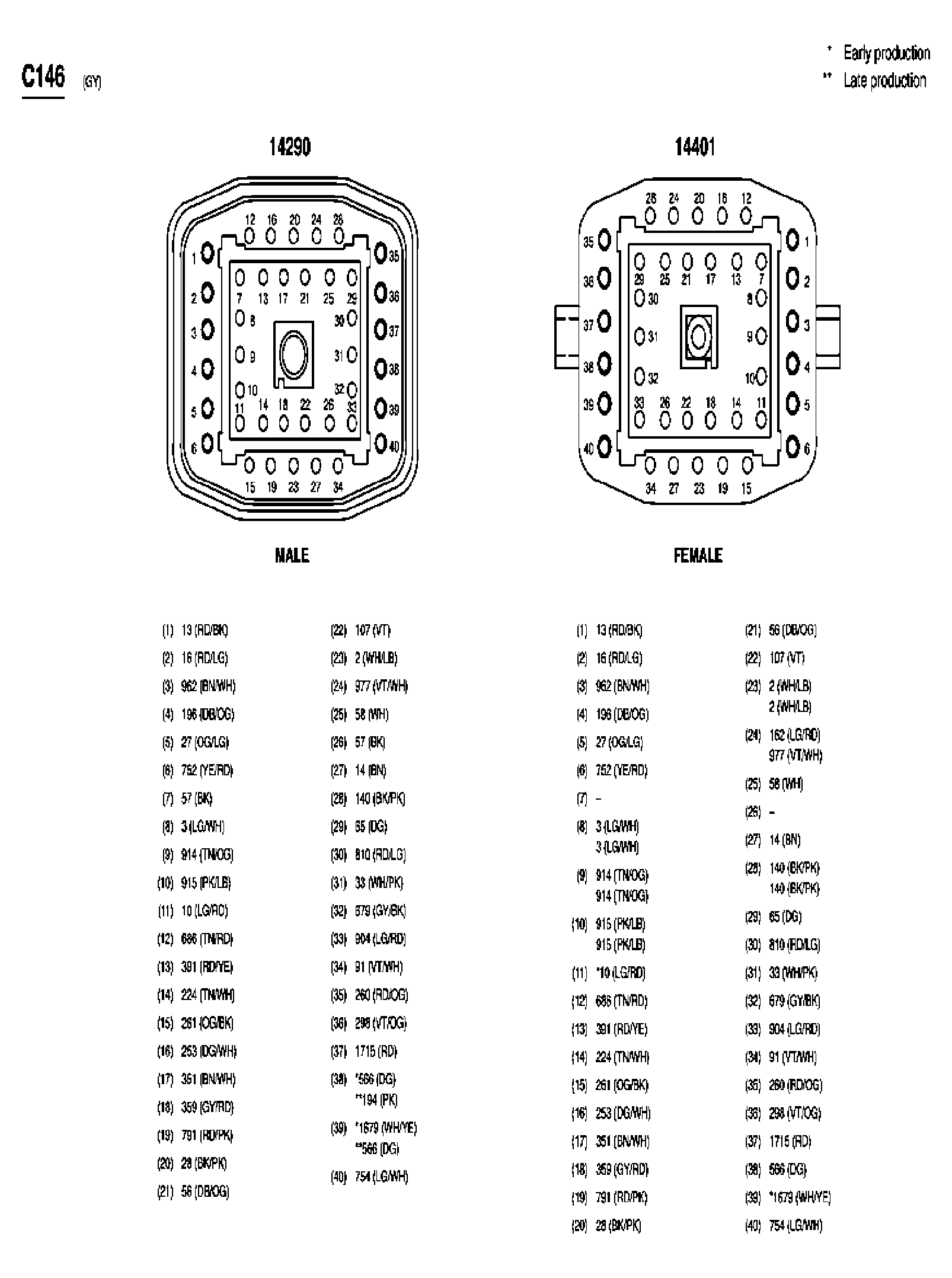

Fig 21: Inline Connector End View (C146)

G04000336

Courtesy of FORD MOTOR CO.

Fig 22: Wheel Speed Sensor, Left Front Connector End View (C150)

G07845761

Courtesy of FORD MOTOR CO.

Fig 23: Fog Lamp, Left Front Connector End View (C152)

G07845762

Courtesy of FORD MOTOR CO.

Fig 24: Wheel Speed Sensor, Right Front Connector End View (C160)

G07845763

Courtesy of FORD MOTOR CO.

Fig 25: Fog Lamp, Right Front Connector End View (C162)

G07845764

Courtesy of FORD MOTOR CO.

Fig 26: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G07845765

Courtesy of FORD MOTOR CO.

Fig 27: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07845766

Courtesy of FORD MOTOR CO.

Fig 28: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07845767

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07845768

Courtesy of FORD MOTOR CO.

Fig 30: Fuel Rail Pressure/Temperature Sensor Connector End View (C173)

G07845769

Courtesy of FORD MOTOR CO.

Fig 31: Ignition Transformer Capacitor 1 Connector End View (C174)

G07845770

Courtesy of FORD MOTOR CO.

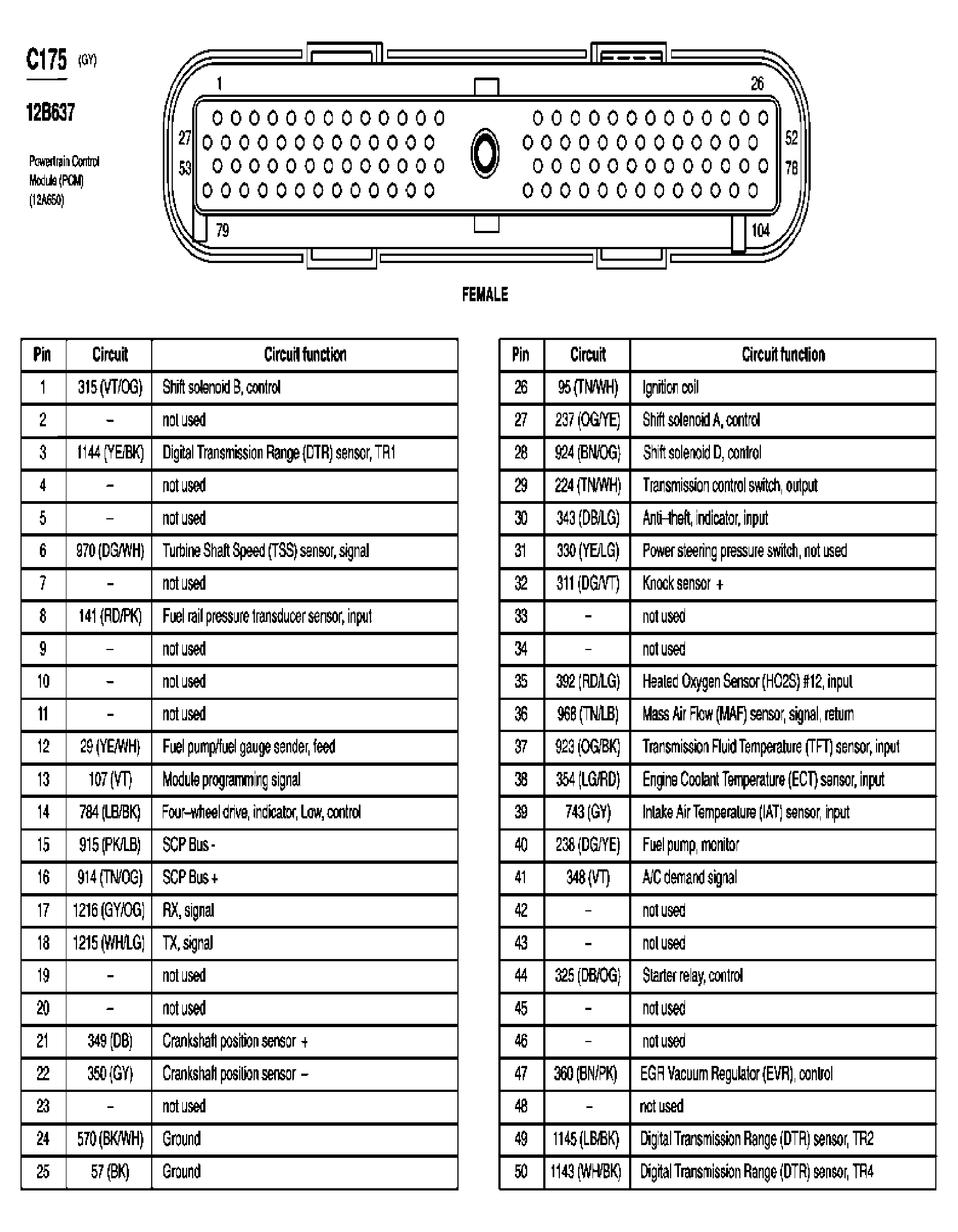

Fig 32: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G04000339

Courtesy of FORD MOTOR CO.

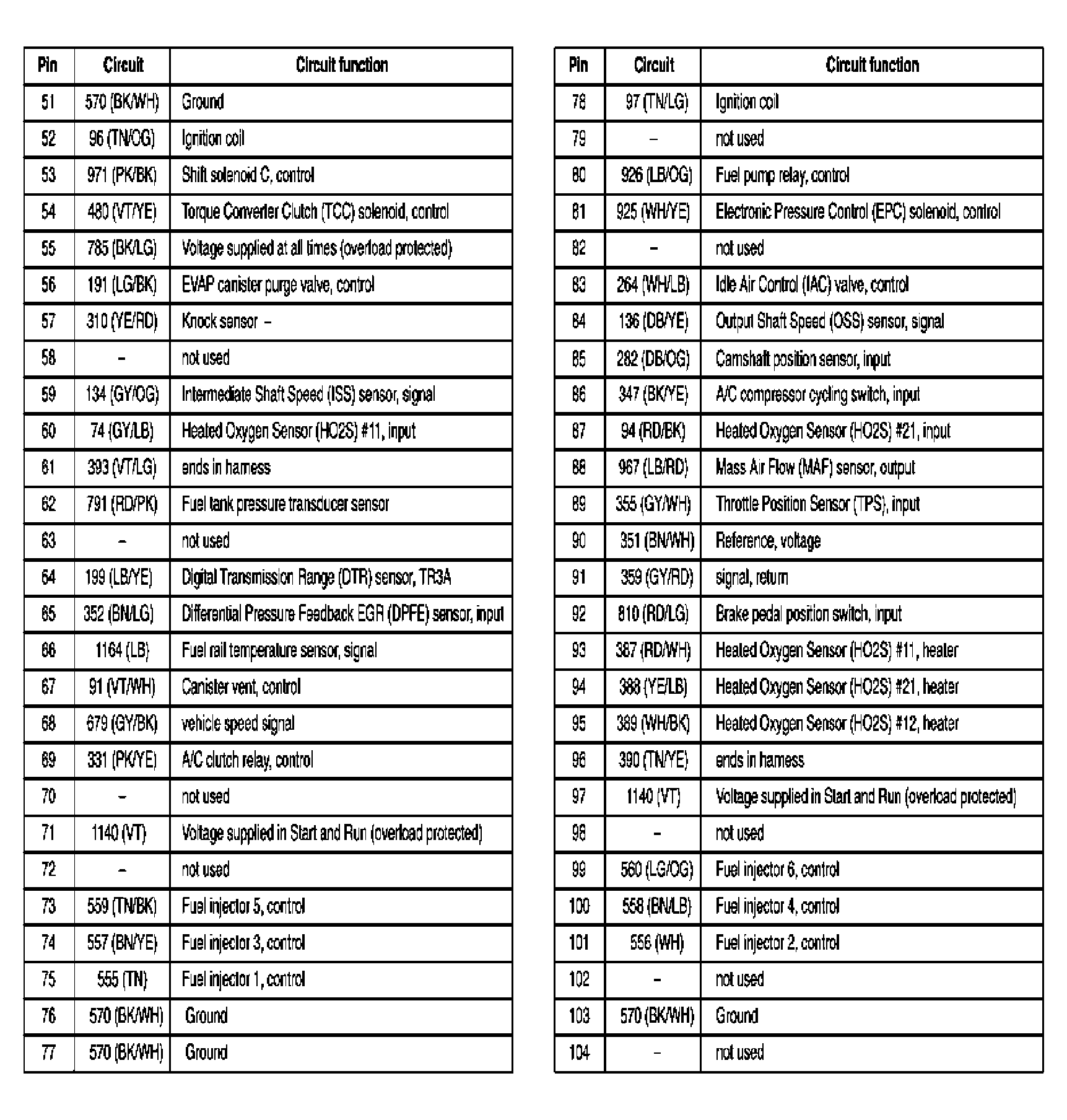

Fig 33: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G04000340

Courtesy of FORD MOTOR CO.

Fig 34: Forward Crash Sensor Connector End View (C177)

G07845771

Courtesy of FORD MOTOR CO.

Fig 35: Camshaft Position Sensor Connector End View (C180)

G07845772

Courtesy of FORD MOTOR CO.

Fig 36: Fuel Injector 1 Connector End View (C181)

G07845773

Courtesy of FORD MOTOR CO.

Fig 37: Fuel Injector 2 Connector End View (C182)

G07845774

Courtesy of FORD MOTOR CO.

Fig 38: Fuel Injector 3 Connector End View (C183)

G07845775

Courtesy of FORD MOTOR CO.

Fig 39: Fuel Injector 4 Connector End View (C184)

G07845776

Courtesy of FORD MOTOR CO.

Fig 40: Fuel Injector 5 Connector End View (C185)

G07845777

Courtesy of FORD MOTOR CO.

Fig 41: Fuel Injector 6 Connector End View (C186)

G07845778

Courtesy of FORD MOTOR CO.

Fig 42: Throttle Position Sensor (TPS) Connector End View (C189)

G07845779

Courtesy of FORD MOTOR CO.

Fig 43: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07845780

Courtesy of FORD MOTOR CO.

Fig 44: Starter Motor Connector End View (C197a)

G07845781

Courtesy of FORD MOTOR CO.

Fig 45: Starter Motor Connector End View (C197b)

G07845782

Courtesy of FORD MOTOR CO.

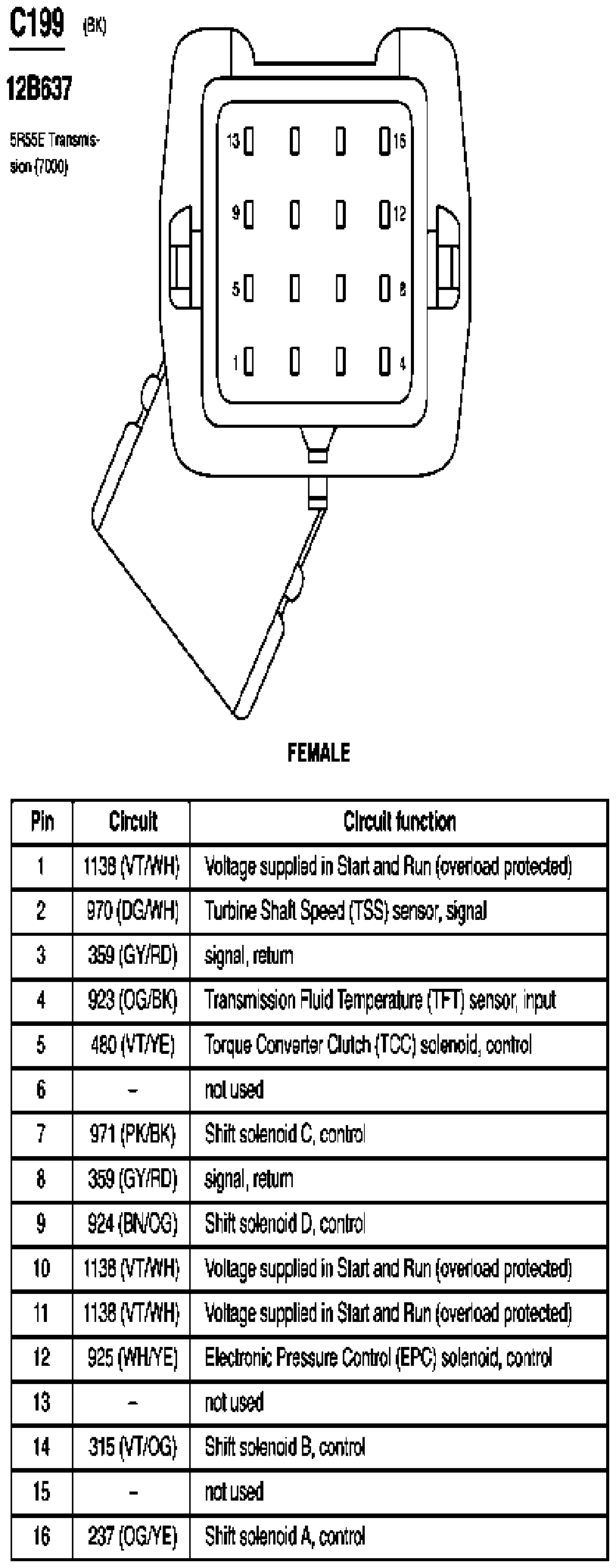

Fig 46: 5RSSE Transmission Connector End View (C199)

G07845783

Courtesy of FORD MOTOR CO.

Fig 47: Multifunction Switch Connector End View (C202a)

G07845784

Courtesy of FORD MOTOR CO.

Fig 48: Multifunction Switch Connector End View (C202b)

G07845785

Courtesy of FORD MOTOR CO.

Fig 49: Main Light Switch Connector End View (C205a)

G07845786

Courtesy of FORD MOTOR CO.

Fig 50: Main Light Switch Connector End View (C205b)

G07845787

Courtesy of FORD MOTOR CO.

Fig 51: Inline Connector End View (C210)

G07845788

Courtesy of FORD MOTOR CO.

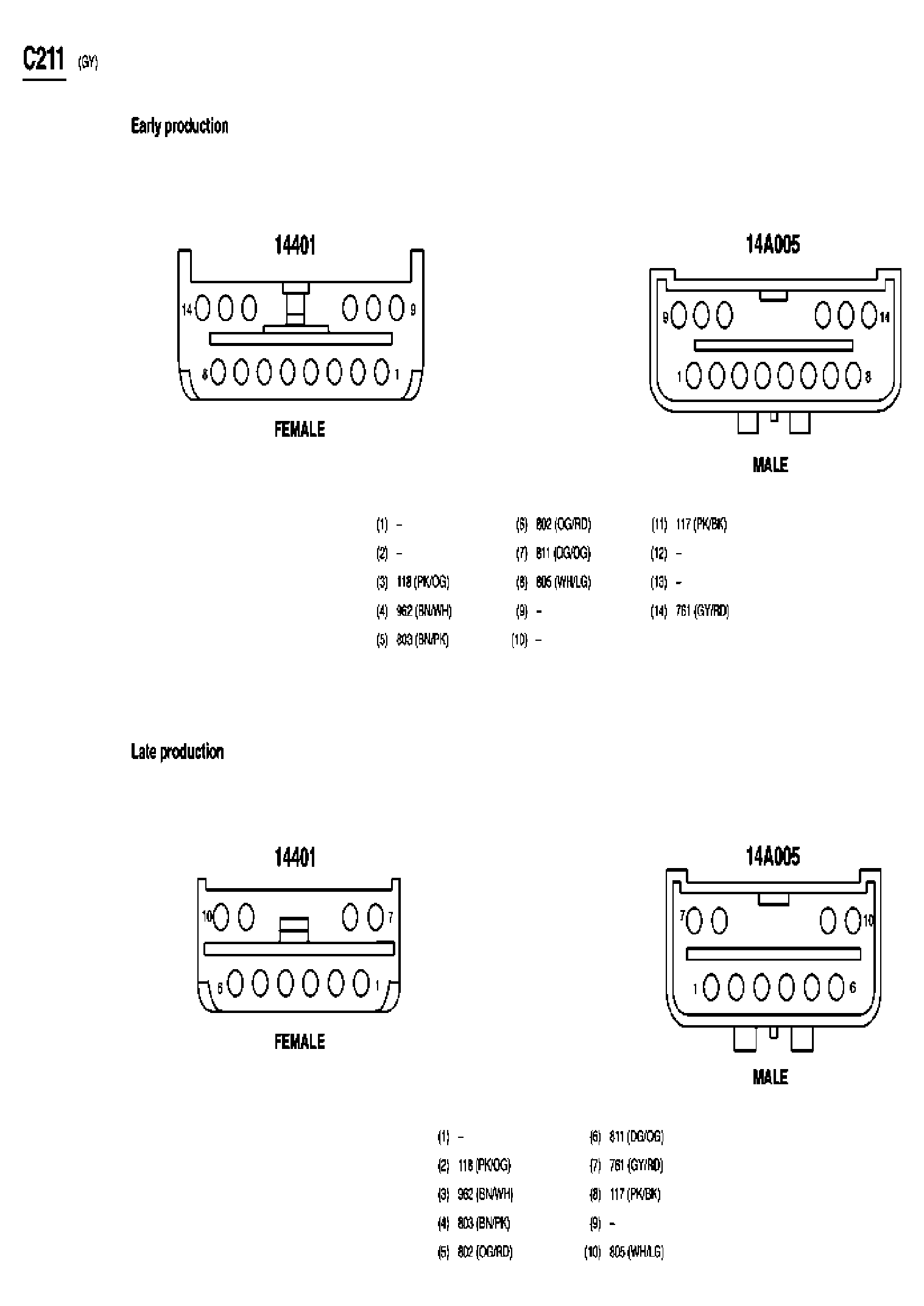

Fig 52: Inline Connector End View (C211)

G04000346

Courtesy of FORD MOTOR CO.

Fig 53: Inline Connector End View (C212)

G07845789

Courtesy of FORD MOTOR CO.

Fig 54: Inline Connector End View (C213)

G07845790

Courtesy of FORD MOTOR CO.

Fig 55: Inline Connector End View (C214)

G07845791

Courtesy of FORD MOTOR CO.

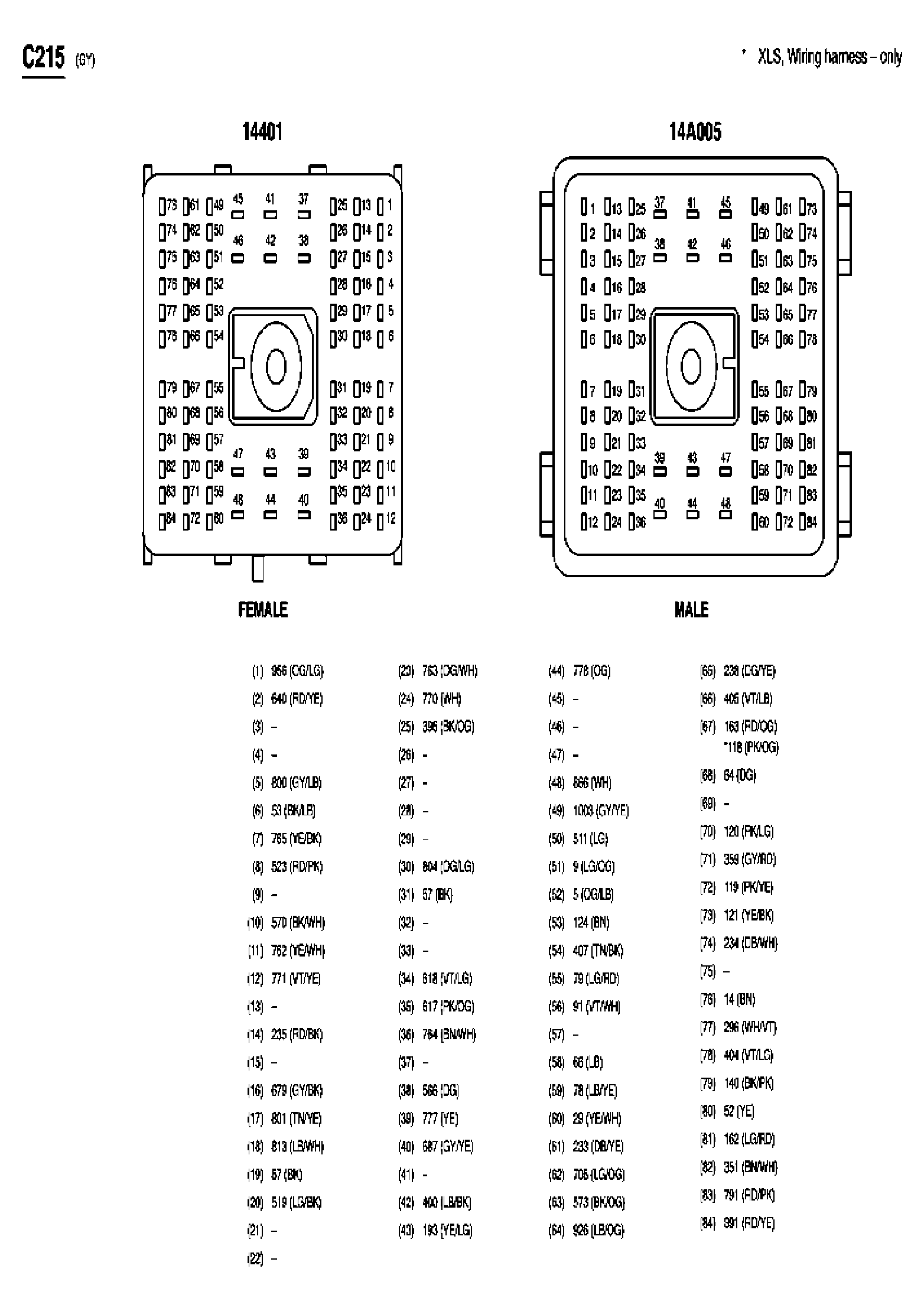

Fig 56: Inline Connector End View (C215)

G04000348

Courtesy of FORD MOTOR CO.

Fig 57: Driver Air Bag Connector End View (C216)

G07845792

Courtesy of FORD MOTOR CO.

Fig 58: Air Bag Sliding Contact Connector End View (C218a)

G07845793

Courtesy of FORD MOTOR CO.

Fig 59: Air Bag Sliding Contract Connector End View (C218b)

G07845794

Courtesy of FORD MOTOR CO.

Fig 60: Inline Connector End View (C219)

G07845795

Courtesy of FORD MOTOR CO.

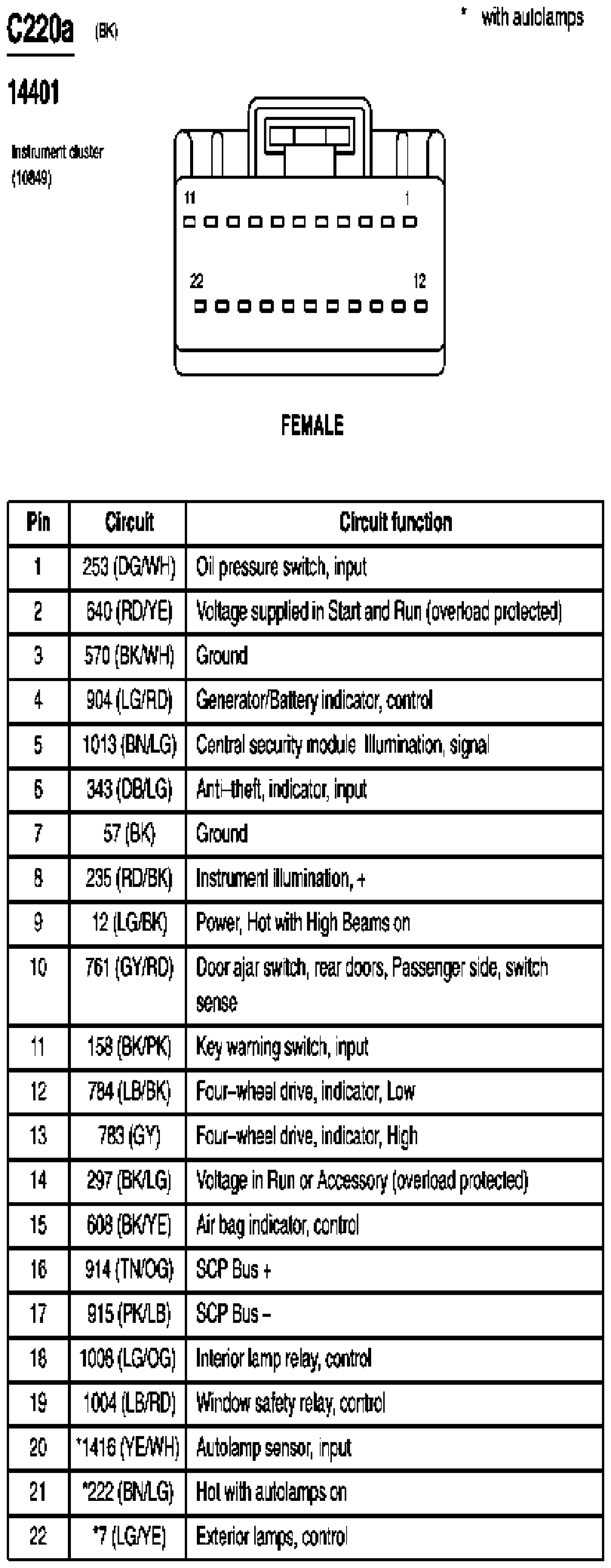

Fig 61: Instrument Cluster Connector End View (C220a)

G07845796

Courtesy of FORD MOTOR CO.

Fig 62: Instrument Cluster Connector End View (C220b)

G07845797

Courtesy of FORD MOTOR CO.

Fig 63: Inline Connector End View (C237)

G07845798

Courtesy of FORD MOTOR CO.

Fig 64: Inline Connector End View (C238)

G07845799

Courtesy of FORD MOTOR CO.

Fig 65: Inline Connector End View (C248)

G07845800

Courtesy of FORD MOTOR CO.

Fig 66: Ignition Switch Connector End View (C250)

G07845801

Courtesy of FORD MOTOR CO.

Fig 67: Data Link Connector (DLC) Connector End View (C251)

G07845802

Courtesy of FORD MOTOR CO.

Fig 68: Passenger Air Bag Module Connector End View (C256)

G07845803

Courtesy of FORD MOTOR CO.

Fig 69: Inline Connector End View (C263)

G07845804

Courtesy of FORD MOTOR CO.

Fig 70: Inline Connector End View (C264)

G07845805

Courtesy of FORD MOTOR CO.

Fig 71: Control Security Module Connector End View (C274a)

G07845806

Courtesy of FORD MOTOR CO.

Fig 72: Central Security Module Connector End View (C274b)

G07845807

Courtesy of FORD MOTOR CO.

Fig 73: Brake Pedal Position Switch Connector End View (C278)

G07845808

Courtesy of FORD MOTOR CO.

Fig 74: Transmission Control Switch Connector End View (C279)

G07845809

Courtesy of FORD MOTOR CO.

Fig 75: Four-Wheel Driver Control Module Connector End View (C281a)

G07845810

Courtesy of FORD MOTOR CO.

Fig 76: Four-Wheel Driver Control Module Connector End View (C281b)

G07845811

Courtesy of FORD MOTOR CO.

Fig 77: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07845812

Courtesy of FORD MOTOR CO.

Fig 78: Four-Wheel Driver Switch Connector End View (C284)

G07845813

Courtesy of FORD MOTOR CO.

Fig 79: Autolamp Sensor Connector End View (C287)

G07845814

Courtesy of FORD MOTOR CO.

Fig 80: Temperature Blend Door Actuator Connector End View (C289)

G07845815

Courtesy of FORD MOTOR CO.

Fig 81: Radio Connector End View (C290a)

G07845816

Courtesy of FORD MOTOR CO.

Fig 82: Radio Connector End View (C290b)

G07845817

Courtesy of FORD MOTOR CO.

Fig 83: Function Selector Switch Assembly, Front Connector End View (C294a)

G07845818

Courtesy of FORD MOTOR CO.

Fig 84: Function Selector Switch Assembly, Front Connector End View (C294b)

G07845819

Courtesy of FORD MOTOR CO.

Fig 85: Function Selector Switch Assembly, Front Connector End View (C294c)

G07845820

Courtesy of FORD MOTOR CO.

Fig 86: Function Selector Switch Assembly, Front Connector End View (C294d)

G07845821

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C300)

G07845822

Courtesy of FORD MOTOR CO.

Fig 88: Passenger Safety Belt Retractor Pretension Connector End View (C303)

G07845823

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C315)

G07845824

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C316)

G07845825

Courtesy of FORD MOTOR CO.

Fig 91: Seat Heater Switch, Driver Side Connector End View (C320)

G07845826

Courtesy of FORD MOTOR CO.

Fig 92: Seat Heater Switch, Passenger Side Connector End View (C321)

G07845827

Courtesy of FORD MOTOR CO.

Fig 93: Driver Safety Belt Buckle Pretensioner Connector End View (C323)

G07845828

Courtesy of FORD MOTOR CO.

Fig 94: Inline Connector End View (C327)

G07845829

Courtesy of FORD MOTOR CO.

Fig 95: Inline Connector End View (C328)

G07845830

Courtesy of FORD MOTOR CO.

Fig 96: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07845831

Courtesy of FORD MOTOR CO.

Fig 97: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07845832

Courtesy of FORD MOTOR CO.

Fig 98: Seat Cushion Heater, Passenger Side Connector End View (C334)

G07845833

Courtesy of FORD MOTOR CO.

Fig 99: Seat Back Heater, Passenger Side Connector End View (C335)

G07845834

Courtesy of FORD MOTOR CO.

Fig 100: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07845835

Courtesy of FORD MOTOR CO.

Fig 101: Side Air Bag Module Right Connector End View (C337)

G07845836

Courtesy of FORD MOTOR CO.

Fig 102: Inline Connector End View (C339)

G07845837

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C340)

G07845838

Courtesy of FORD MOTOR CO.

Fig 104: Transfer Case Assembly Connector End View (C350)

G07845839

Courtesy of FORD MOTOR CO.

Fig 105: Rear Window Motor Connector End View (C351)

G07845840

Courtesy of FORD MOTOR CO.

Fig 106: Power Seat Motor Assembly, Left Connector End View (C357)

G07845841

Courtesy of FORD MOTOR CO.

Fig 107: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07845842

Courtesy of FORD MOTOR CO.

Fig 108: Seat Cushion Heater, Driver Side Connector End View (C364)

G07845843

Courtesy of FORD MOTOR CO.

Fig 109: Seat Back Heater, Driver Side Connector End View (C365)

G07845844

Courtesy of FORD MOTOR CO.

Fig 110: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07845845

Courtesy of FORD MOTOR CO.

Fig 111: Side Air Bag Module, Left Connector End View (C367)

G07845846

Courtesy of FORD MOTOR CO.

Fig 112: Seat Adjust Switch, Driver Side Front Connector End View (C369)

G07845847

Courtesy of FORD MOTOR CO.

Fig 113: Power Point Assembly Connector End View (C380)

G07845848

Courtesy of FORD MOTOR CO.

Fig 114: Inline Connector End View (C421)

G07845849

Courtesy of FORD MOTOR CO.

Fig 115: Inline Connector End View (C422)

G07845850

Courtesy of FORD MOTOR CO.

Fig 116: Fuel Pump Driver Module Connector End View (C433)

G07845851

Courtesy of FORD MOTOR CO.

Fig 117: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07845852

Courtesy of FORD MOTOR CO.

Fig 118: Trailer Tow Connector End View (C439)

G07845853

Courtesy of FORD MOTOR CO.

Fig 119: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07845854

Courtesy of FORD MOTOR CO.

Fig 120: Reversing Lamp, Left Connector End View (C451)

G07845855

Courtesy of FORD MOTOR CO.

Fig 121: License Plate Lamp, Left Connector End View (C454)

G07845856

Courtesy of FORD MOTOR CO.

Fig 122: Rear Axle Speed Sensor Connector End View (C455)

G07845857

Courtesy of FORD MOTOR CO.

Fig 123: Reversing Lamp, Right Connector End View (C461)

G07845858

Courtesy of FORD MOTOR CO.

Fig 124: License Pulse Lamp, Right Connector End View (C464)

G07845859

Courtesy of FORD MOTOR CO.

Fig 125: Subwoofer Amplifier Connector End View (C466a)

G07845860

Courtesy of FORD MOTOR CO.

Fig 126: Subwoofer Amplifier Connector End View (C466b)

G07845861

Courtesy of FORD MOTOR CO.

Fig 127: Power Point, Rear Connector End View (C474)

G07845862

Courtesy of FORD MOTOR CO.

Fig 128: Master Window Adjust Switch Connector End View (C504a)

G07845863

Courtesy of FORD MOTOR CO.

Fig 129: Master Window Adjust Switch Connector End View (C504b)

G07845864

Courtesy of FORD MOTOR CO.

Fig 130: Door Lock Switch Driver Side Connector End View (C505)

G07845865

Courtesy of FORD MOTOR CO.

Fig 131: Inline Connector End View (C510)

G04000372

Courtesy of FORD MOTOR CO.

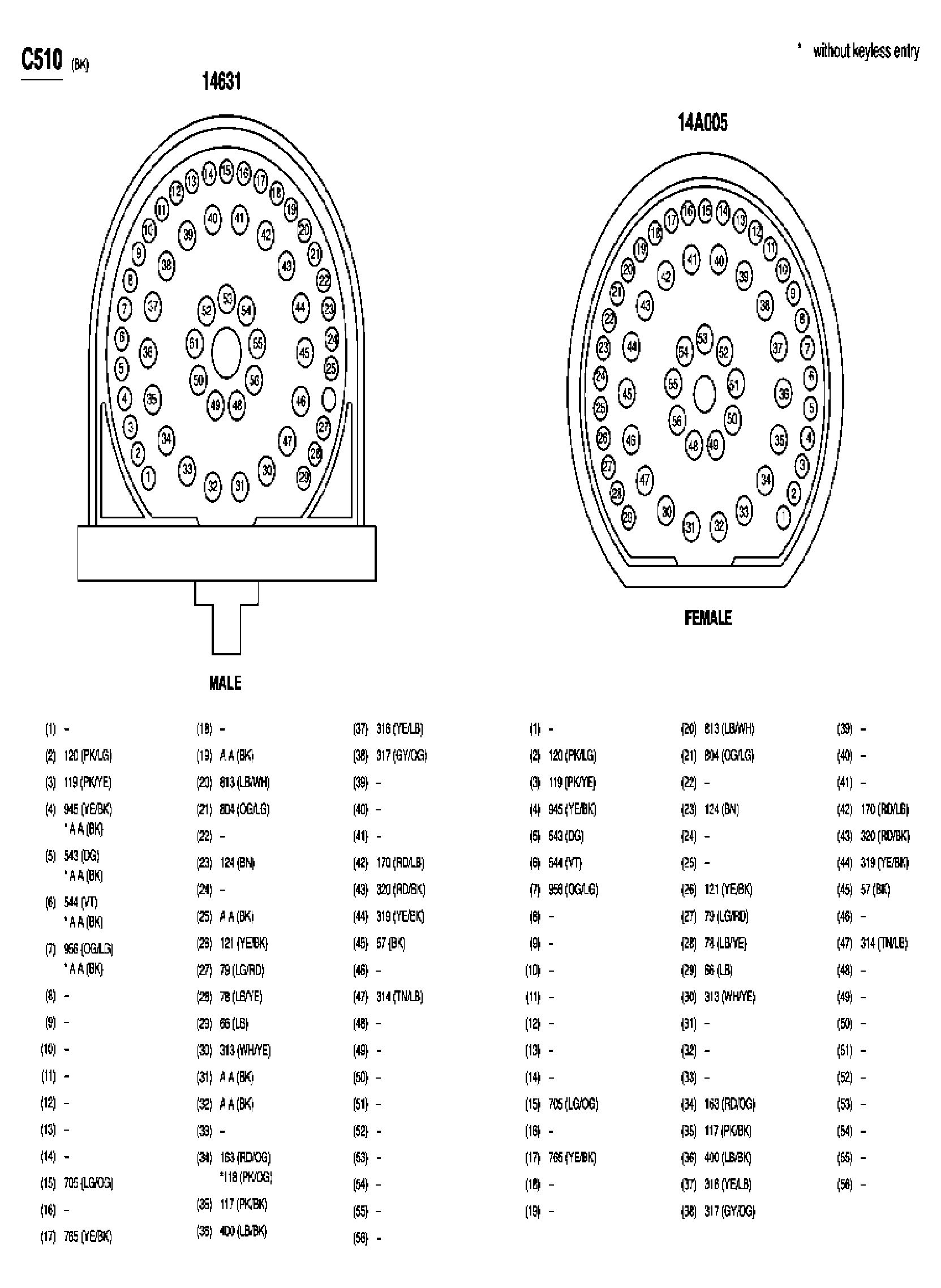

Fig 132: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07845866

Courtesy of FORD MOTOR CO.

Fig 133: Speaker Left Front Connector End View (C523)

G07845867

Courtesy of FORD MOTOR CO.

Fig 134: Power Window Motor, Driver Side Front Connector End View (C524)

G07845868

Courtesy of FORD MOTOR CO.

Fig 135: Door Lock Actuator, Driver Side Connector End View (C525)

G07845869

Courtesy of FORD MOTOR CO.

Fig 136: Door Ajar Switch, Driver Side Front Connector End View (C526a)

G07845870

Courtesy of FORD MOTOR CO.

Fig 137: Door Ajar Switch, Driver Side Front Connector End View (C526b)

G07845871

Courtesy of FORD MOTOR CO.

Fig 138: Exterior Rear View Mirror Switch Connector End View (C527)

G07845872

Courtesy of FORD MOTOR CO.

Fig 139: Key Pad Switch Assembly Connector End View (C530)

G07845873

Courtesy of FORD MOTOR CO.

Fig 140: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07845874

Courtesy of FORD MOTOR CO.

Fig 141: Door Ajar Switch, Passenger Side Front Connector End View (C602a)

G07845875

Courtesy of FORD MOTOR CO.

Fig 142: Door Ajar Switch, Passenger Side Front Connector End View (C602b)

G07845876

Courtesy of FORD MOTOR CO.

Fig 143: Door Lock Actuator, Passenger Side Connector End View (C603)

G07845877

Courtesy of FORD MOTOR CO.

Fig 144: Window Adjust Switch, Passenger Side Connector End View (C604)

G07845878

Courtesy of FORD MOTOR CO.

Fig 145: Door Lock Switch, Passenger Side Connector End View (C605)

G07845879

Courtesy of FORD MOTOR CO.

Fig 146: Power Window Motor, Passenger Side Front Connector End View (C608)

G07845880

Courtesy of FORD MOTOR CO.

Fig 147: Speaker Right Front Connector End View (C612)

G07845881

Courtesy of FORD MOTOR CO.

Fig 148: Window Adjust Switch, Left Rear Connector End View (C701)

G07845882

Courtesy of FORD MOTOR CO.

Fig 149: Speaker, Left Rear Connector End View (C702)

G07845883

Courtesy of FORD MOTOR CO.

Fig 150: Power Window Motor, Left Rear Connector End View (C703)

G07845884

Courtesy of FORD MOTOR CO.

Fig 151: Door Lock Actuator, Left Rear Connector End View (C704)

G07845885

Courtesy of FORD MOTOR CO.

Fig 152: Door Ajar Switch Driver Side Rear Connector End View (C715a)

G07845886

Courtesy of FORD MOTOR CO.

Fig 153: Door Ajar Switch Driver Side Rear Connector End View (C715b)

G07845887

Courtesy of FORD MOTOR CO.

Fig 154: Window Adjust Switch, Right Rear Connector End View (C801)

G07845888

Courtesy of FORD MOTOR CO.

Fig 155: Speaker, Right Rear Connector End View (C802)

G07845889

Courtesy of FORD MOTOR CO.

Fig 156: Power Window Motor Right Rear Connector End View (C803)

G07845890

Courtesy of FORD MOTOR CO.

Fig 157: Door Lock Actuator, Right Rear Connector End View (C804)

G07845891

Courtesy of FORD MOTOR CO.

Fig 158: Door Ajar Switch, Passenger Side Rear Connector End View (C820a)

G07845892

Courtesy of FORD MOTOR CO.

Fig 159: Door Ajar Switch, Passenger Side Rear Connector End View (C820b)

G07845893

Courtesy of FORD MOTOR CO.

Fig 160: Inside Rear View Mirror Unit Connector End View (C911)

G07845894

Courtesy of FORD MOTOR CO.

Fig 161: Roof Opening Panel Switch Connector End View (C912)

G07845895

Courtesy of FORD MOTOR CO.

Fig 162: Roof Opening Panel Module Connector End View (C921)

G07845896

Courtesy of FORD MOTOR CO.

Fig 163: Cargo Lamp Assembly Connector End View (C927)

G07845897

Courtesy of FORD MOTOR CO.

Fig 164: Overload Console Connector End View (C930)

G07845898

Courtesy of FORD MOTOR CO.

Fig 165: Interior Lamps Assembly, Front Connector End View (C931a)

G07845899

Courtesy of FORD MOTOR CO.

Fig 166: Interior/Map Lamps Assembly, Front Connector End View (C931b)

G07845900

Courtesy of FORD MOTOR CO.

Fig 167: Interior/Map Lamps Assembly, Rear Connector End View (C932a)

G07845901

Courtesy of FORD MOTOR CO.

Fig 168: Interior/Map Lamps Assembly, Rear Connector End View (C932b)

G07845902

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C934)

G07845903

Courtesy of FORD MOTOR CO.

Fig 170: Inline Connector End View (C935)

G07845904

Courtesy of FORD MOTOR CO.

Fig 171: Fog Lamp Relay Connector End View (C1007)

G07845905

Courtesy of FORD MOTOR CO.

Fig 172: A/C Clutch Relay Connector End View (C1008)

G07845906

Courtesy of FORD MOTOR CO.

Fig 173: Blower Motor Relay Connector End View (C1011)

G07845907

Courtesy of FORD MOTOR CO.

Fig 174: PCM Power Relay Connector End View (C1016)

G07845908

Courtesy of FORD MOTOR CO.

Fig 175: Starter Relay Connector End View (C1017)

G07845909

Courtesy of FORD MOTOR CO.

Fig 176: PCM Power Diode Connector End View (C1018)

G07845910

Courtesy of FORD MOTOR CO.

Fig 177: Headlamp, Left Connector End View (C1021)

G07845911

Courtesy of FORD MOTOR CO.

Fig 178: Parking Lamp, Left Front Connector End View (C1023)

G07845912

Courtesy of FORD MOTOR CO.

Fig 179: Brake Pressure Switch Connector End View (C1025)

G07845913

Courtesy of FORD MOTOR CO.

Fig 180: EVAP Canister Purge Valve Connector End View (C1029)

G07845914

Courtesy of FORD MOTOR CO.

Fig 181: Daytime Running Lamps Module Connector End View (C1030)

G07845915

Courtesy of FORD MOTOR CO.

Fig 182: Heater Blower Motor Connector End View (C1031)

G07845916

Courtesy of FORD MOTOR CO.

Fig 183: Heater Blower Motor Resistor, Front Connector End View (C1032)

G07845917

Courtesy of FORD MOTOR CO.

Fig 184: Battery Junction Box Connector End View (C1035)

G07845918

Courtesy of FORD MOTOR CO.

Fig 185: Headlamp, Right Connector End View (C1041)

G07845919

Courtesy of FORD MOTOR CO.

Fig 186: Park/Turn Lamp, Right Front Connector End View (C1043)

G07845920

Courtesy of FORD MOTOR CO.

Fig 187: Fuel Pump Relay Connector End View (C1051)

G07845921

Courtesy of FORD MOTOR CO.

Fig 188: High Speed Fan Control Relay Connector End View (C1056)

G07845922

Courtesy of FORD MOTOR CO.

Fig 189: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07845923

Courtesy of FORD MOTOR CO.

Fig 190: Ignition Coil Connector End View (C1065)

G07845924

Courtesy of FORD MOTOR CO.

Fig 191: Idle Air Control (AC) Valve Connector End View (C1066)

G07845925

Courtesy of FORD MOTOR CO.

Fig 192: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07845926

Courtesy of FORD MOTOR CO.

Fig 193: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07845927

Courtesy of FORD MOTOR CO.

Fig 194: A/C High Pressure Switch Connector End View (C1078)

G07845928

Courtesy of FORD MOTOR CO.

Fig 195: A/C Compressor Cycling Switch Connector End View (C1081)

G07845929

Courtesy of FORD MOTOR CO.

Fig 196: A/C Compressor Clutch Diode Connector End View (C1086)

G07845930

Courtesy of FORD MOTOR CO.

Fig 197: Window Safety Relay Connector End View (C1096)

G07845931

Courtesy of FORD MOTOR CO.

Fig 198: Battery Connector End View (C1100a)

G07845932

Courtesy of FORD MOTOR CO.

Fig 199: Battery Connector End View (C1100b)

G07845933

Courtesy of FORD MOTOR CO.

Fig 200: Trailer Tow Relay Connector End View (C1194)

G07845934

Courtesy of FORD MOTOR CO.

Fig 201: Brake Pedal Position Switch Resistor Connector End View (C1528)

G07845935

Courtesy of FORD MOTOR CO.

Fig 202: Brake Shift Interlock Connector End View (C2008)

G07845936

Courtesy of FORD MOTOR CO.

Fig 203: Ashtray Illumination Lamp Connector End View (C2014)

G07845937

Courtesy of FORD MOTOR CO.

Fig 204: Parking Brake Switch Connector End View (C2015)

G07845938

Courtesy of FORD MOTOR CO.

Fig 205: Interior Lamps Relay Connector End View (C2022)

G07845939

Courtesy of FORD MOTOR CO.

Fig 206: Cigar Lighter, Front Connector End View (C2031a)

G07845940

Courtesy of FORD MOTOR CO.

Fig 207: Cigar Lighter, Front Connector End View (C2031b)

G07845941

Courtesy of FORD MOTOR CO.

Fig 208: Power Point Connector End View (C2033)

G07845942

Courtesy of FORD MOTOR CO.

Fig 209: Restraints Control Module Connector End View (C2041a)

G04000392

Courtesy of FORD MOTOR CO.

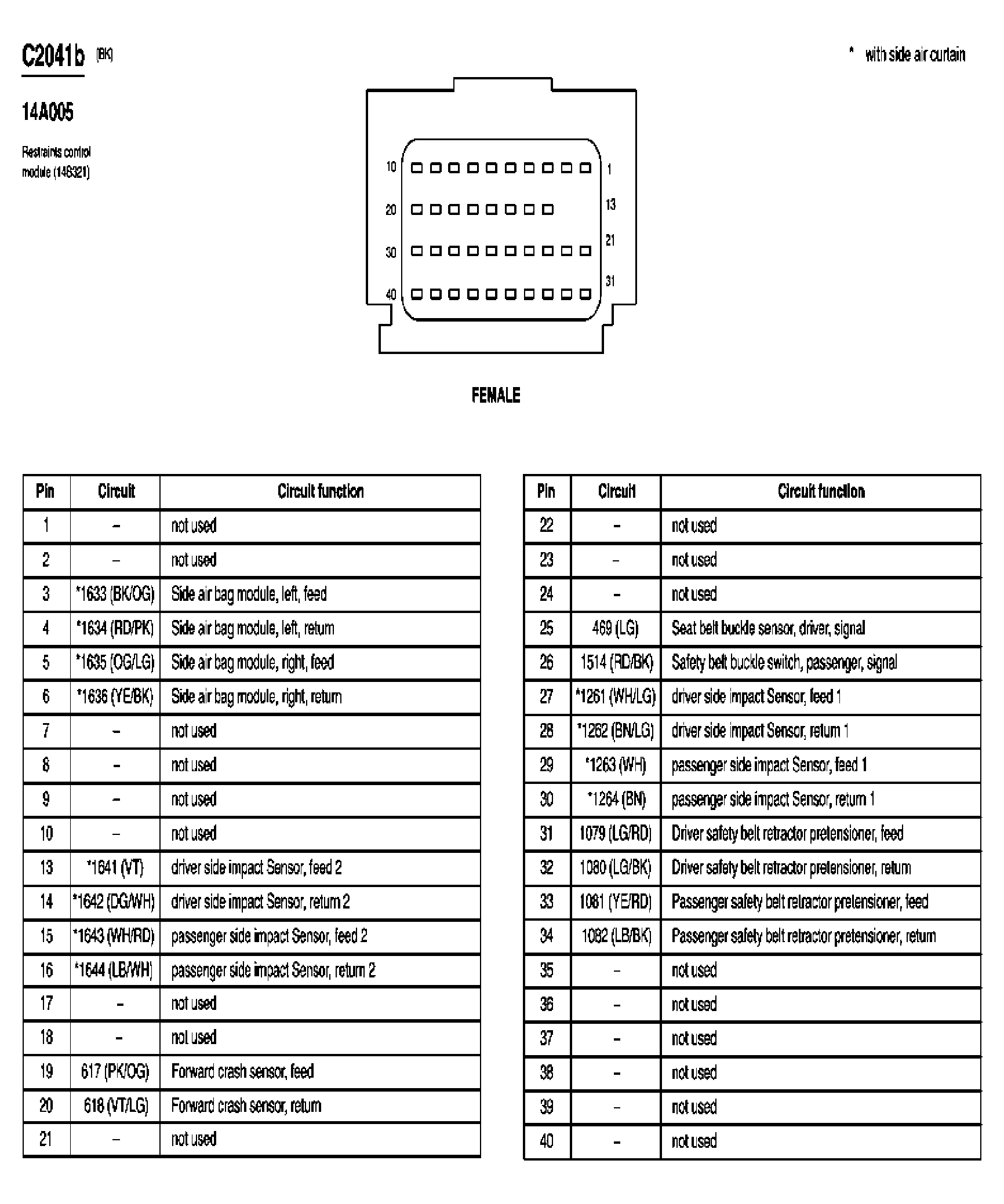

Fig 210: Restraints Control Module Connector End View (C2041b)

G04000393

Courtesy of FORD MOTOR CO.

Fig 211: Indicator Faster Relay Connector End View (C2047)

G07845943

Courtesy of FORD MOTOR CO.

Fig 212: Battery Saver Relay Connector End View (C24048)

G07845944

Courtesy of FORD MOTOR CO.

Fig 213: Rear Window Adjust Switch Connector End View (C2060)

G07845945

Courtesy of FORD MOTOR CO.

Fig 214: Door Unlock Relay Connector End View (C2061)

G07845946

Courtesy of FORD MOTOR CO.

Fig 215: Door Lock Relay Connector End View (C2062)

G07845947

Courtesy of FORD MOTOR CO.

Fig 216: Horn Relay Connector End View (C2077)

G07845948

Courtesy of FORD MOTOR CO.

Fig 217: Passive Anti-Theft Transceiver Module Connector End View (C2097)

G07845949

Courtesy of FORD MOTOR CO.

Fig 218: Radio Connector End View (C2188a)

G07845950

Courtesy of FORD MOTOR CO.

Fig 219: Radio Connector End View (C2188b)

G07845951

Courtesy of FORD MOTOR CO.

Fig 220: Autolamp Headlamp Relay Connector End View (C2233)

G07845952

Courtesy of FORD MOTOR CO.

Fig 221: Neutral Tow Indicator Connector End View (C2260)

G07845953

Courtesy of FORD MOTOR CO.

Fig 222: Blower Motor, Rear Connector End View (C3002)

G07845954

Courtesy of FORD MOTOR CO.

Fig 223: Heater Blower Motor Resistor, Rear Connector End View (C3003)

G07845955

Courtesy of FORD MOTOR CO.

Fig 224: Function Selector Switch Assembly, Rear Connector End View (C3006)

G07845956

Courtesy of FORD MOTOR CO.

Fig 225: Power Seat Motor Assembly, Right Connector End View (C3015)

G07845957

Courtesy of FORD MOTOR CO.

Fig 226: Subwoofer Connector End View (C3020)

G07845958

Courtesy of FORD MOTOR CO.

Fig 227: Seat Belt Buckle Sensor, Driver Connector End View (C3065)

G07845959

Courtesy of FORD MOTOR CO.

Fig 228: Radio Amplifier Connector End View (C3154a)

G07845960

Courtesy of FORD MOTOR CO.

Fig 229: Radio Amplifier Connector End View (C3154b)

G07845961

Courtesy of FORD MOTOR CO.

Fig 230: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07845962

Courtesy of FORD MOTOR CO.

Fig 231: Side Impact Sensor, Driver 2 Connector End View (C3210)

G07845963

Courtesy of FORD MOTOR CO.

Fig 232: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07845964

Courtesy of FORD MOTOR CO.

Fig 233: Side Impact Sensor, Passenger 2 Connector End View (C3212)

G07845965

Courtesy of FORD MOTOR CO.

Fig 234: Heated Seats Relay Connector End View (C3250)

G07845966

Courtesy of FORD MOTOR CO.

Fig 235: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07845967

Courtesy of FORD MOTOR CO.

Fig 236: Fuel Tank Unit Connector End View (C4033)

G07845968

Courtesy of FORD MOTOR CO.

Fig 237: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G04000404

Courtesy of FORD MOTOR CO.
