Removal and Installation

NOTE: Driver window control switch shown, all others are similar.

    Front door

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    2. All doors

  2. Remove the window control switch panel.
    • Disconnect the electrical connectors.

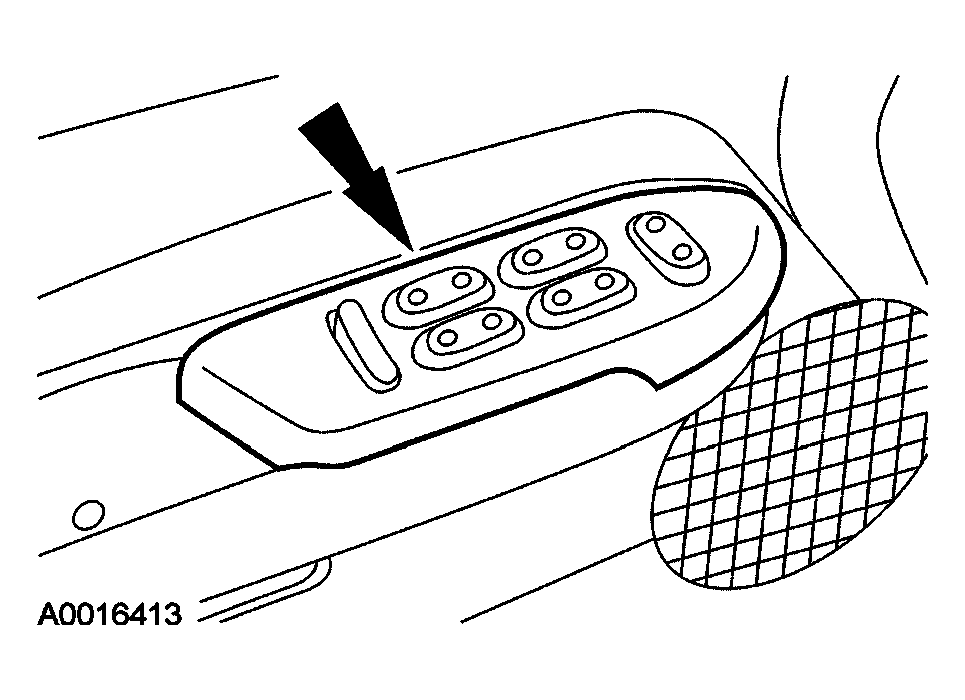

      Fig 1: Removing Window Control Switch Panel
      G03916861Courtesy of FORD MOTOR CO.
  3. Remove the window control switch.
    • Release the locking clips.
      Fig 2: Releasing Locking Clips
      G03916862Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
