Frame and Body Mounting

The frame consists of two steel channel rails, a rear crossmember, additional support crossmembers and a front crossmember.

The rails and crossmembers are not to be removed from the frame (5005) for repair except for the spare tire carrier plate. A front frame rail repair kit (5D058 and 5D059) is available if the front rail is to be repaired.

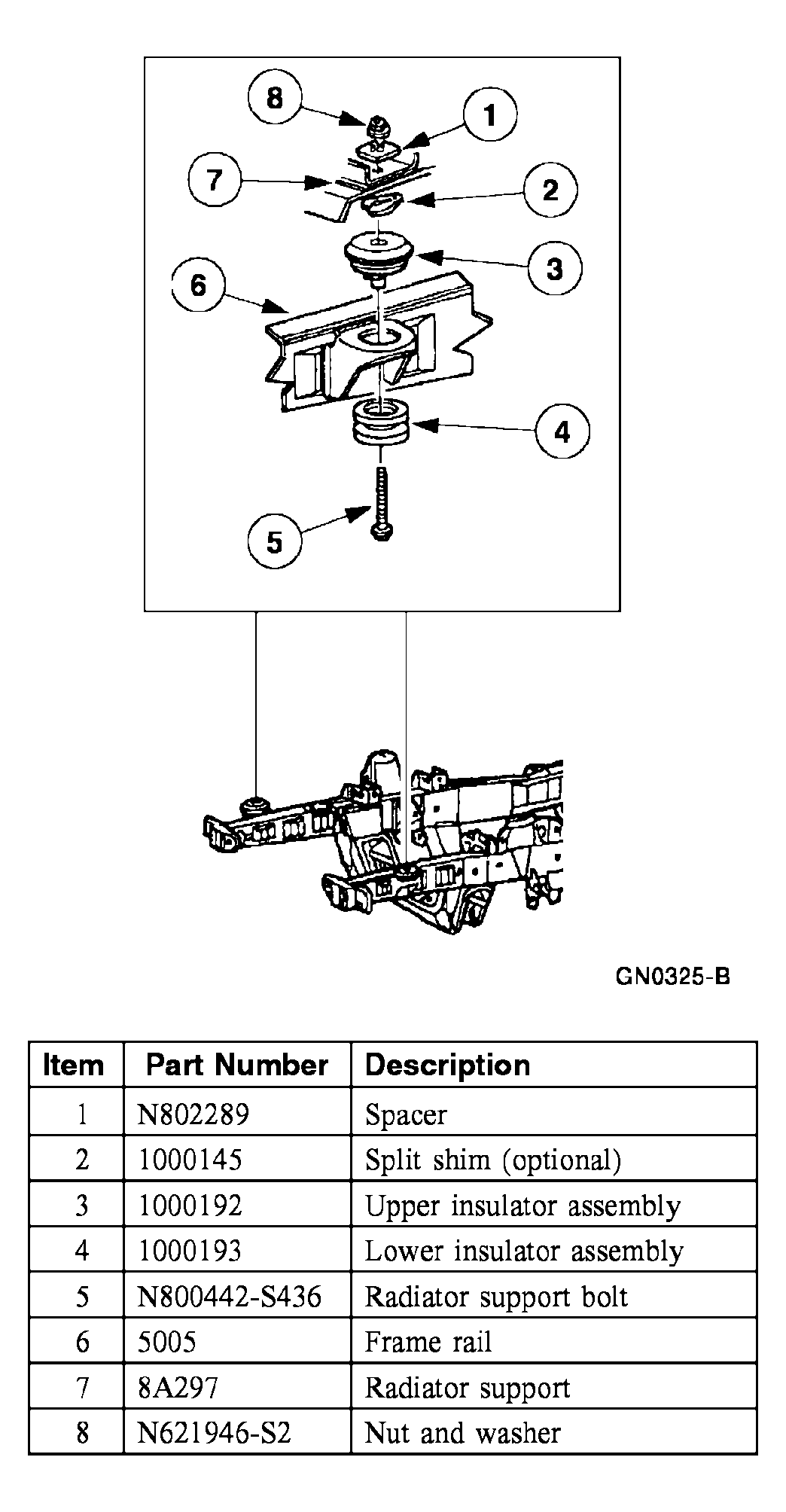

Fig 1: Identifying Body Support - Radiator Support Components

Courtesy of FORD MOTOR CO.

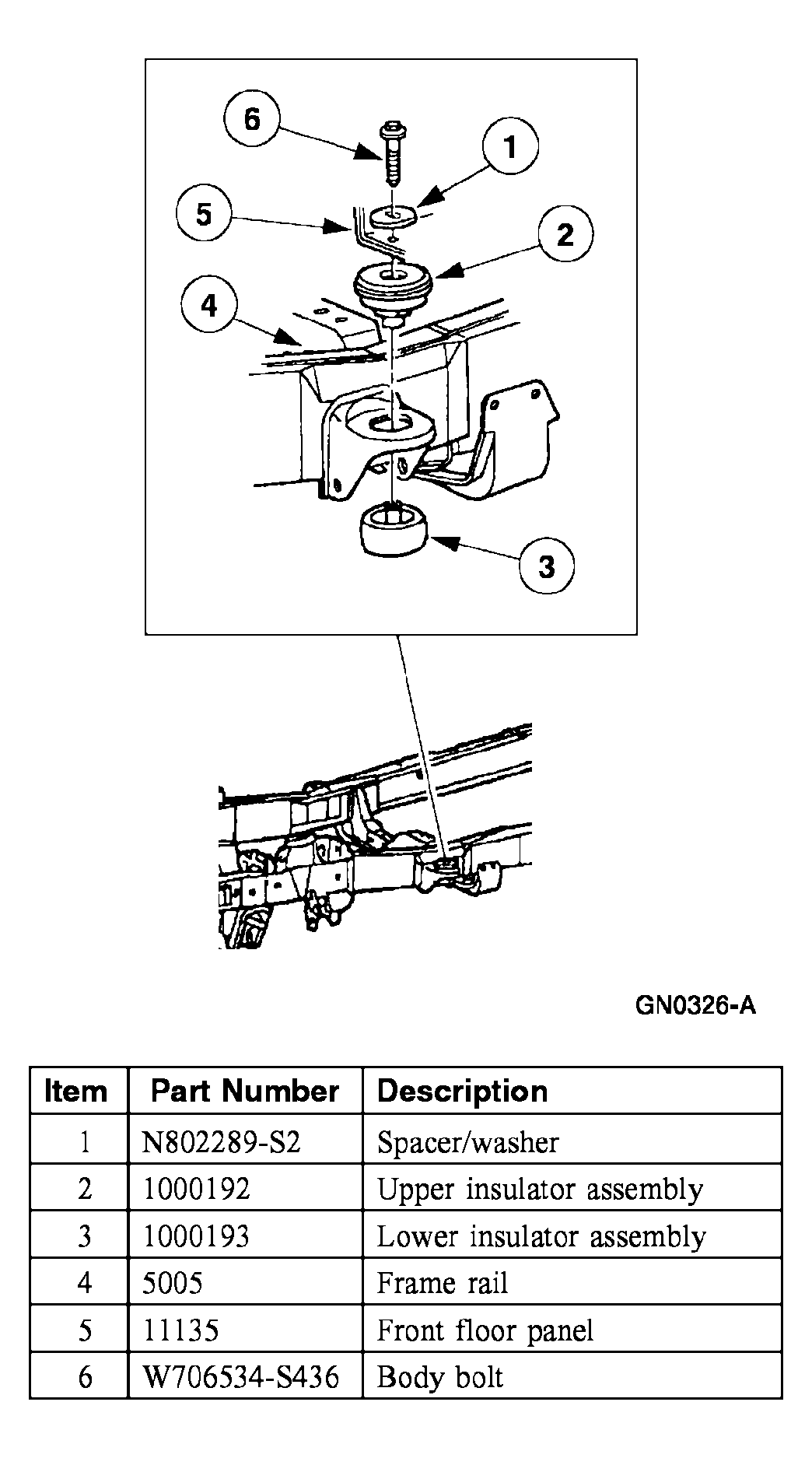

Fig 2: Identifying Body Support - Number 1 Components

Courtesy of FORD MOTOR CO.

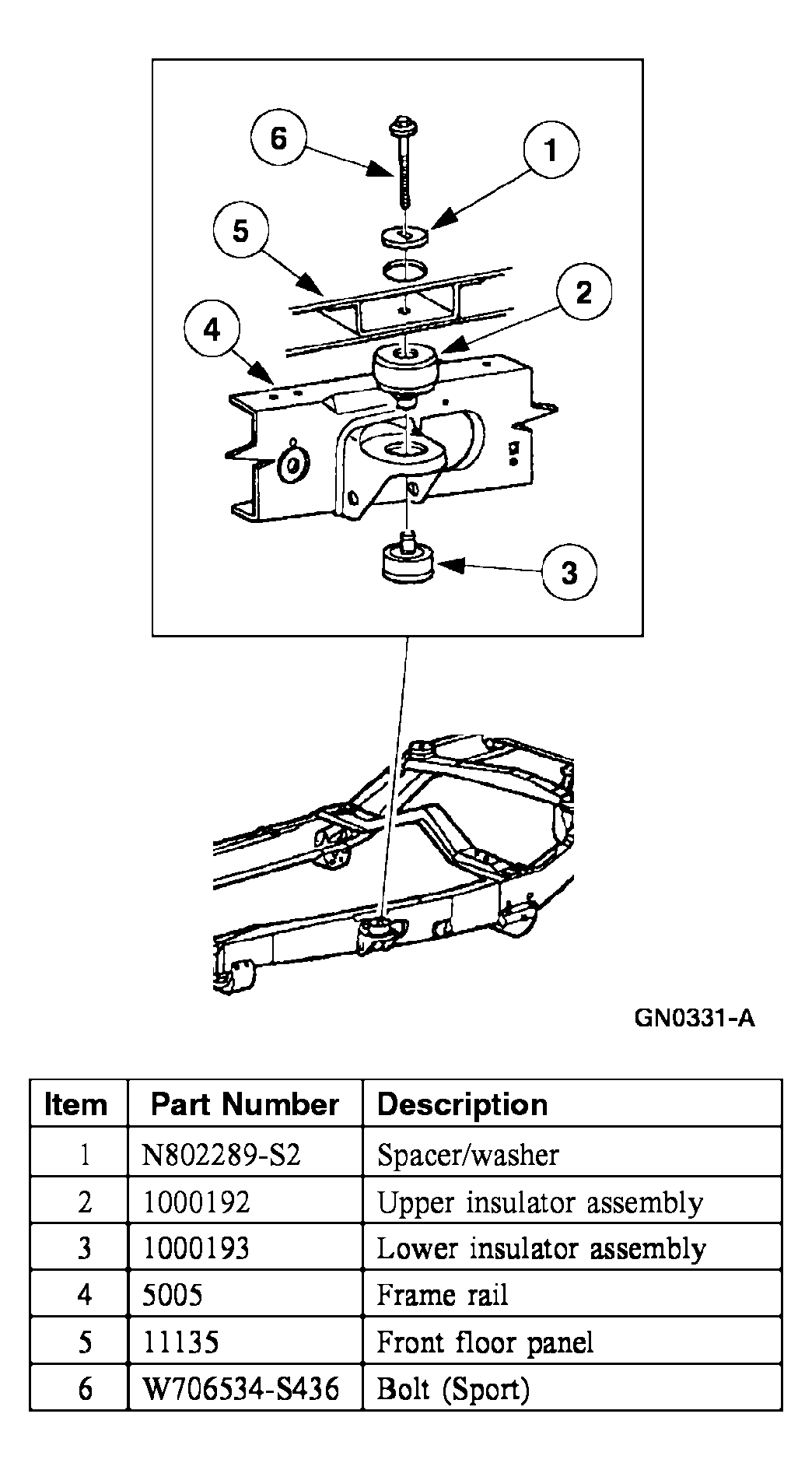

Fig 3: Identifying Body Support - Number 3 Components

Courtesy of FORD MOTOR CO.
