Structural Enhancement
NOTE:

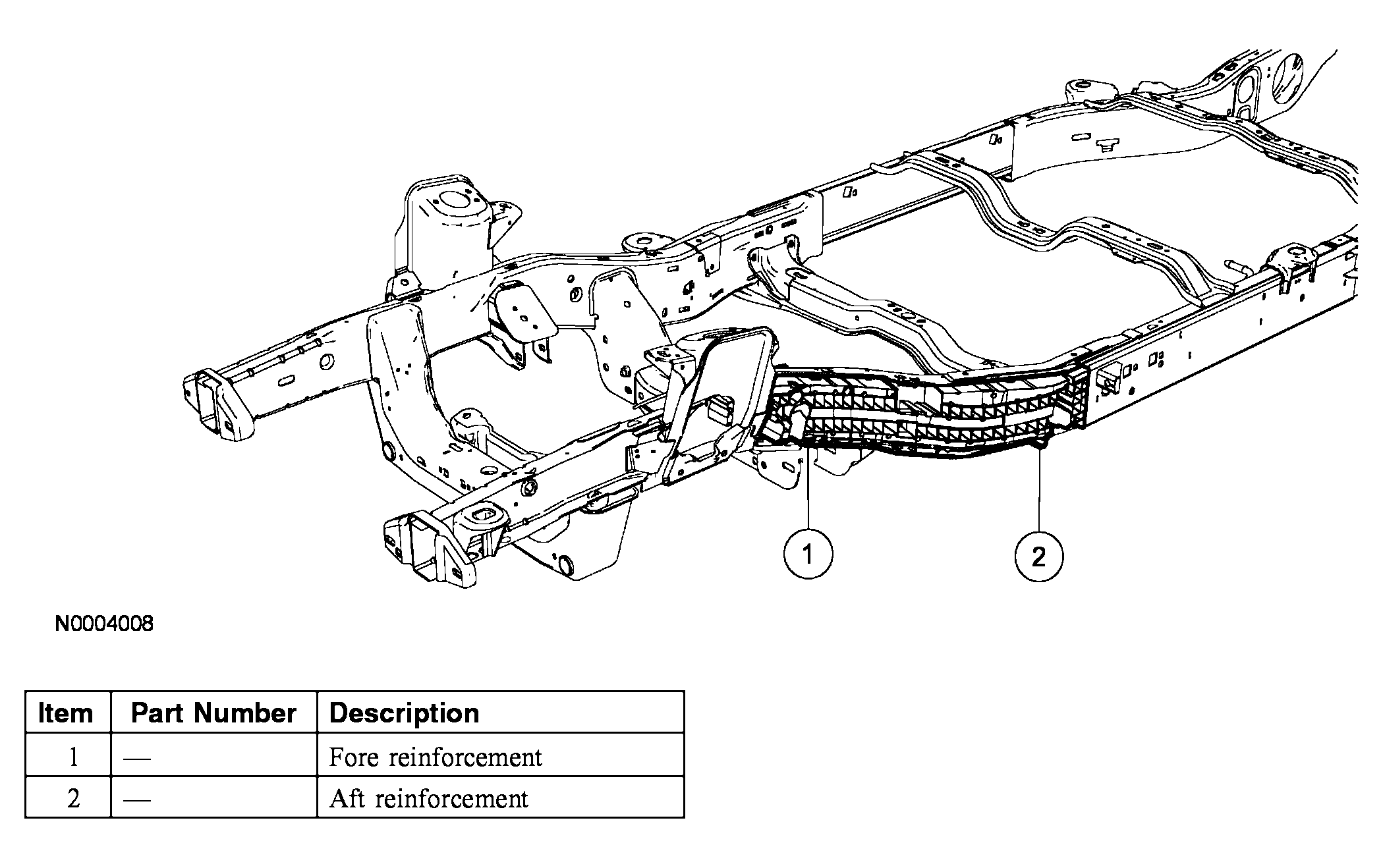

Portions of the frame are removed from this drawing to show the location of the insert.
Courtesy of FORD MOTOR CO.
The purpose of this insert is to enhance the structural rigidity of the frame in this area. The insert cannot be replaced or repaired.
