Home >> Ford >> 2005 >> Explorer 4.6 W, 4WD >> Repair and Diagnosis >> Steering >> Steering Column >> Removal And Installation >> Steering Column Shaft >> Notes

Steering Column Shaft: Notes

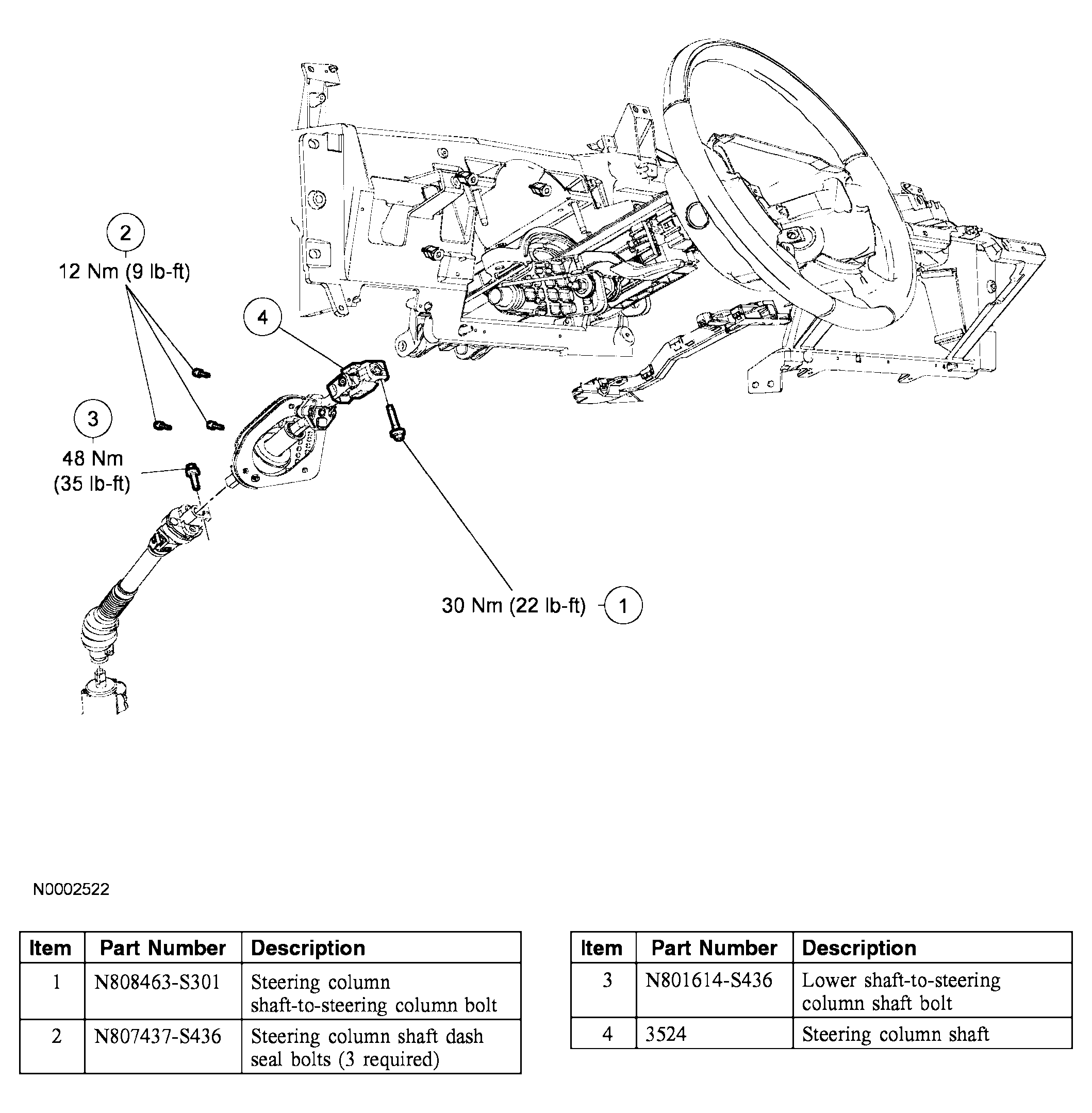

Fig 1: Displaying Steering Column Shaft With Torque Specifications

G03945489

Courtesy of FORD MOTOR CO.
