Toe Adjustment: Rear

  1. Start the engine and center the steering wheel.
  2. Turn the engine off, and hold the steering wheel in the straight-ahead position using a suitable holding device.
  3. Loosen the nuts.
    • Clean and lubricate the nut(s) and rear toe link threads.

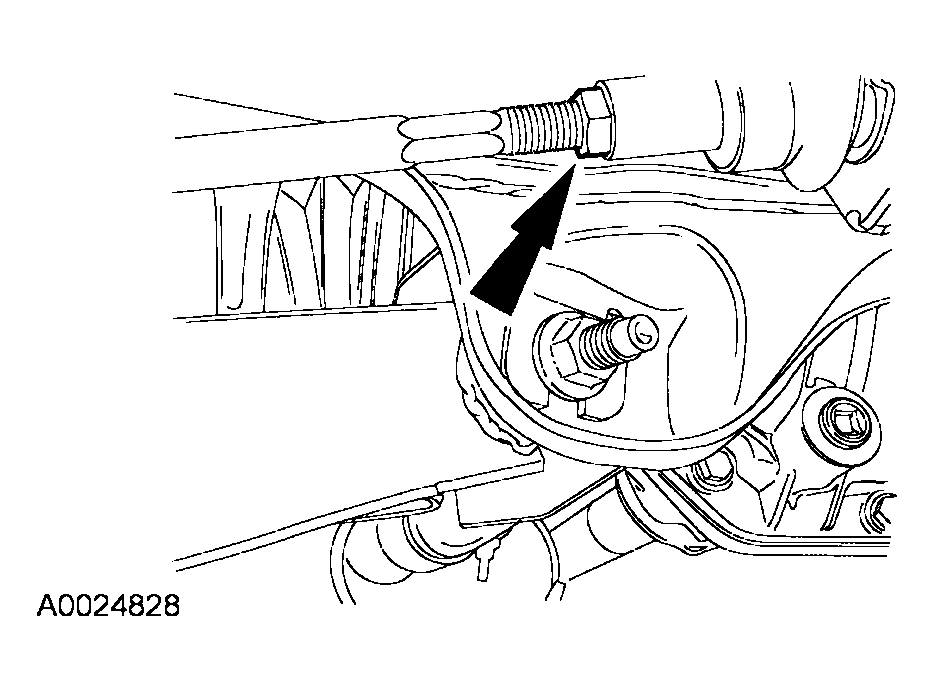

      Fig 1: Loosening Nuts
      G03943974Courtesy of FORD MOTOR CO.
  4. While holding the toe link spindle tie rod, rotate the toe link adjuster.

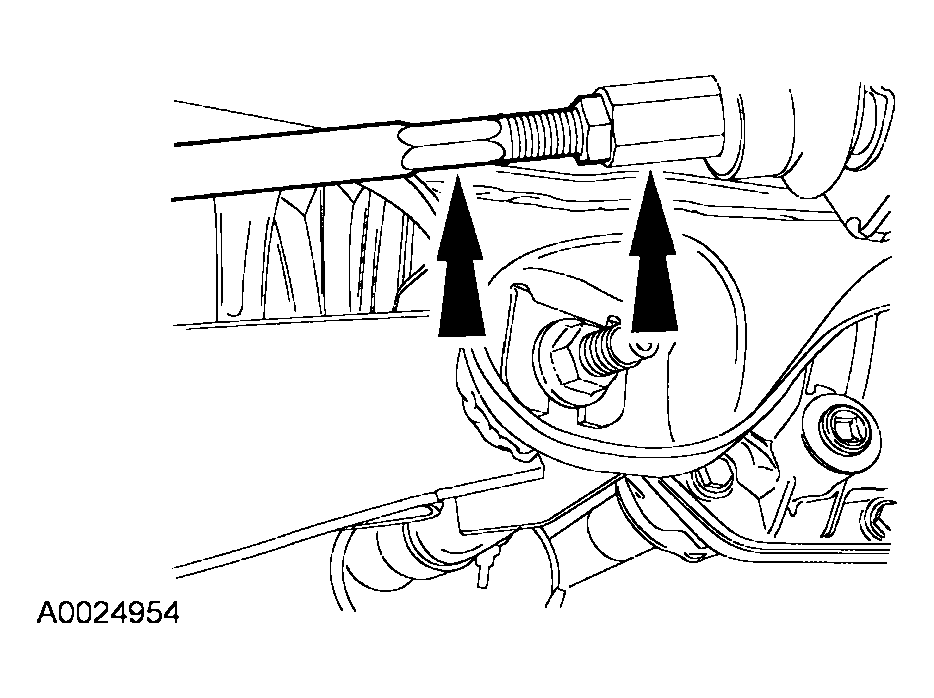

    Fig 2: Rotating Toe Link Adjuster
    G03943975Courtesy of FORD MOTOR CO.
    5. NOTE: Make sure the toe settings are not disturbed while tightening the nuts.

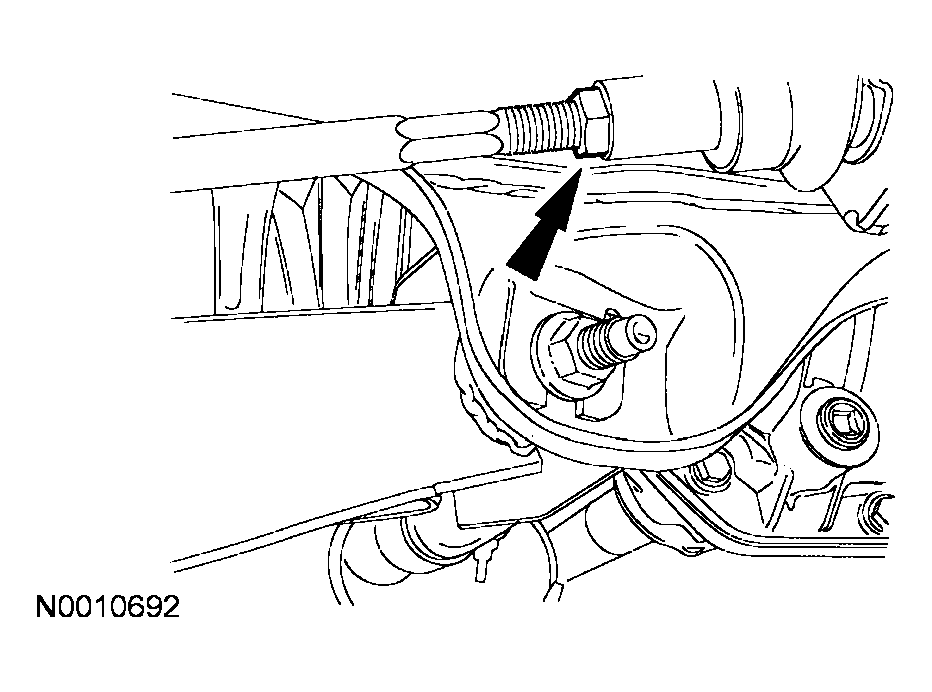

    Fig 3: Tightening Nuts
    G03943976Courtesy of FORD MOTOR CO.
  5. While holding the adjuster, tighten the nuts to 70 Nm (52 lb-ft).
