Toe Adjustment: Front

  1. Start the engine and center the steering wheel.
  2. Turn the engine off, and hold the steering wheel in the straight-ahead position using a suitable holding device.
    3. NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

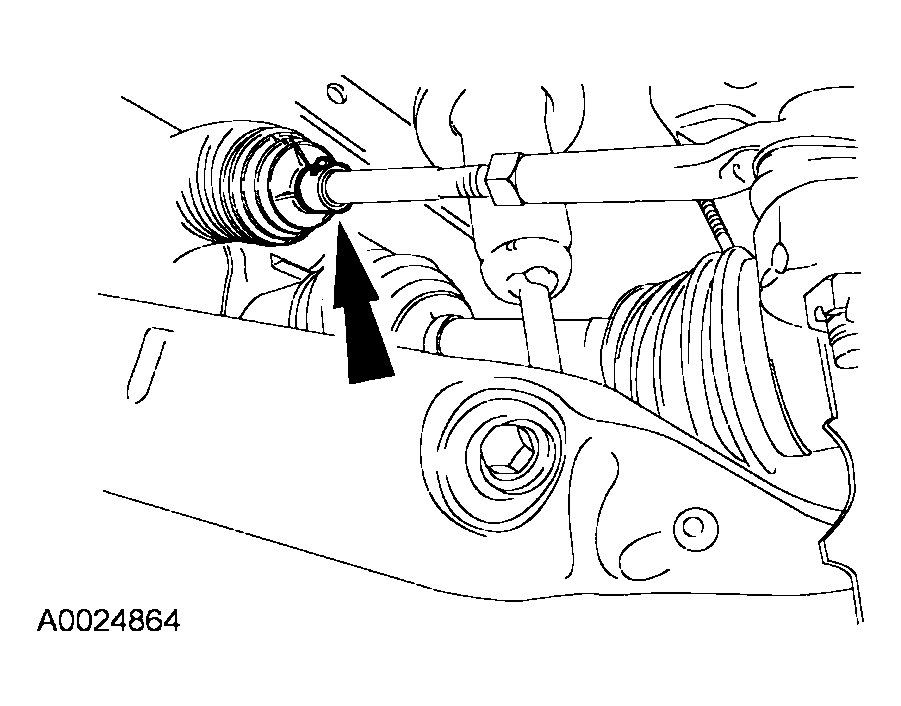

    Fig 1: Removing Clamps
    G03943969Courtesy of FORD MOTOR CO.
  3. Remove the clamps.
  4. Loosen the nuts.
    • Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

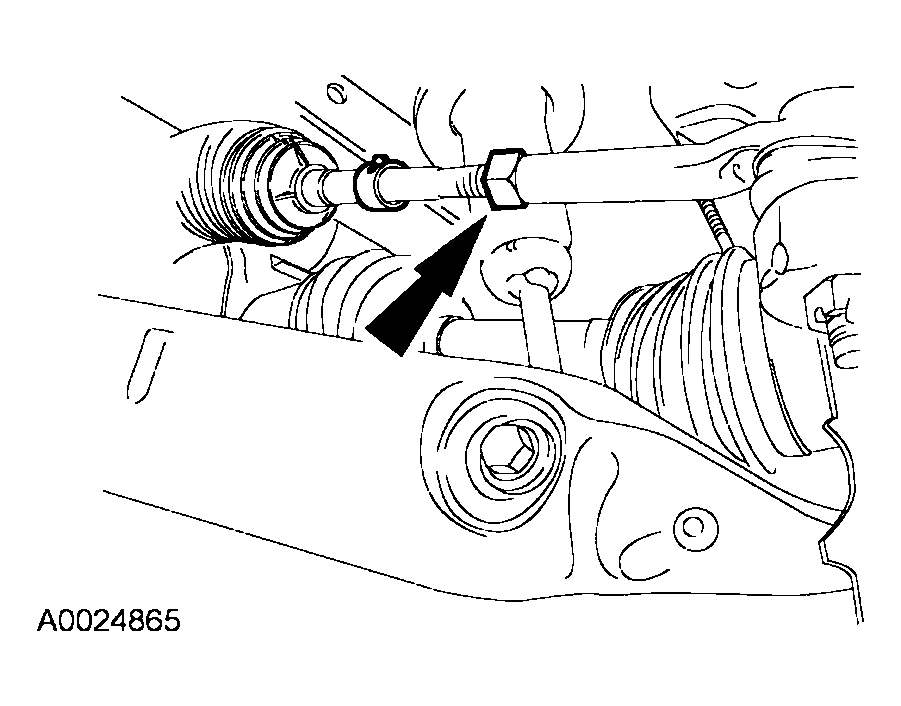

      Fig 2: Loosening Nuts
      G03943970Courtesy of FORD MOTOR CO.
  5. Rotate the front wheel spindle tie rods.

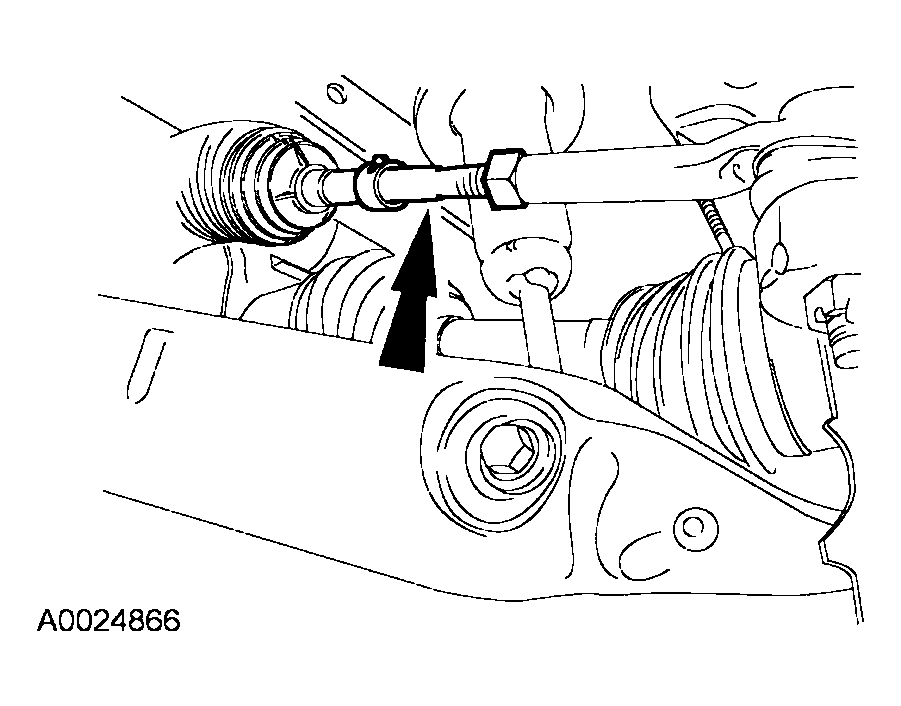

    Fig 3: Rotating Front Wheel Spindle Tie Rods
    G03943971Courtesy of FORD MOTOR CO.
  6. Start the engine and recenter the steering wheel.
    • Recheck the toe settings and adjust if necessary.
    7. CAUTION: Make sure to hold the tie rod end stationary with a wrench while tightening the nut or damage to the boot can occur.
    NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

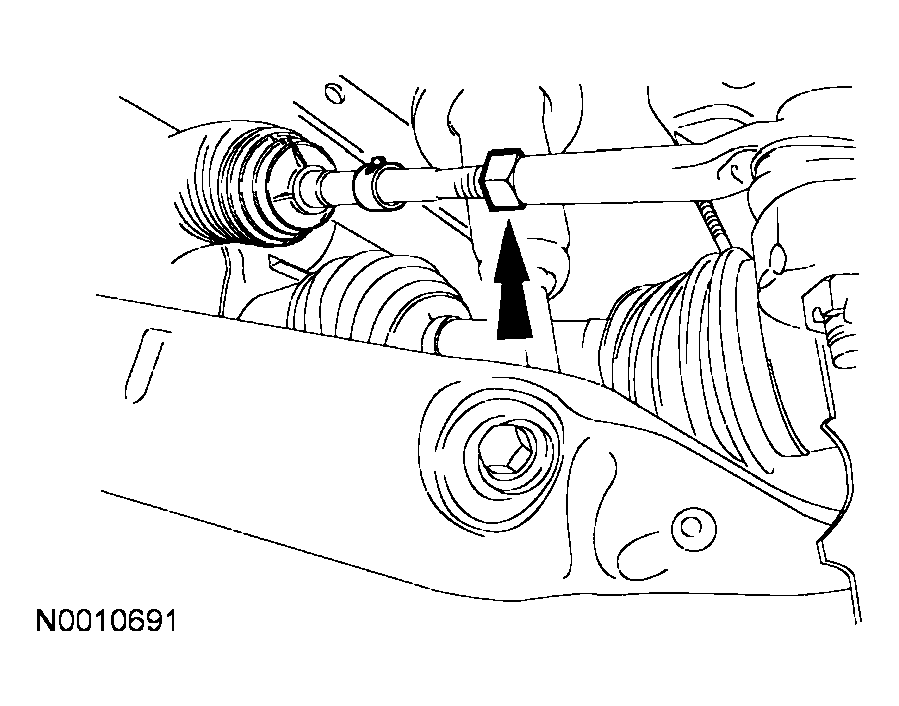

    Fig 4: Tightening Nut
    G03943972Courtesy of FORD MOTOR CO.
  7. Tighten to 70 Nm (52 lb-ft).
  8. Install the clamps.
    Fig 5: Installing Clamps
    G03943969Courtesy of FORD MOTOR CO.
