Ride Height

NOTE: Air suspension vehicles must be at trim prior to measuring the vehicle ride height. For additional information, refer to VEHICLE DYNAMIC SUSPENSION .

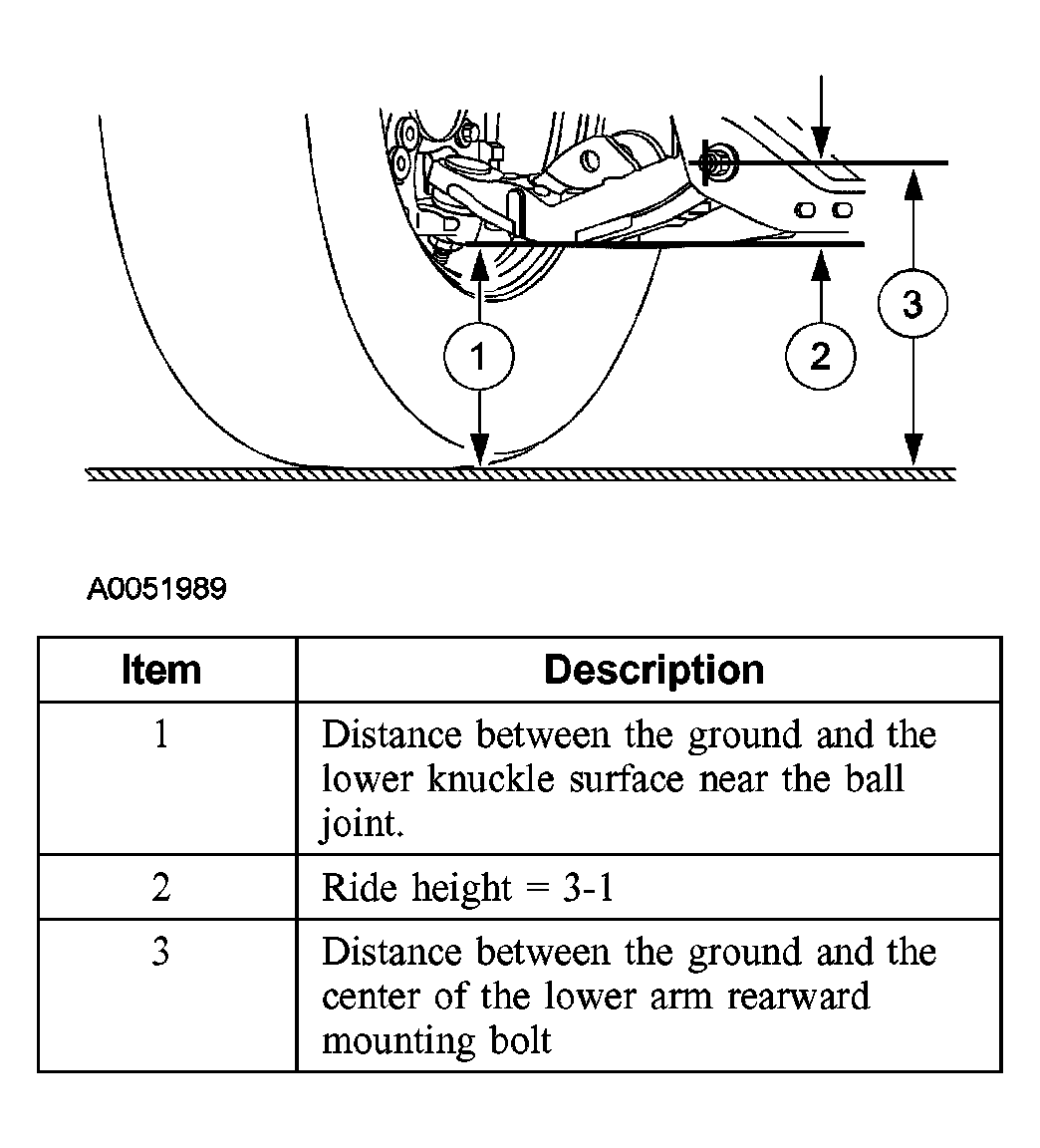

Fig 1: Identifying Front Ride Height Measurements
G03927608Courtesy of FORD MOTOR CO.

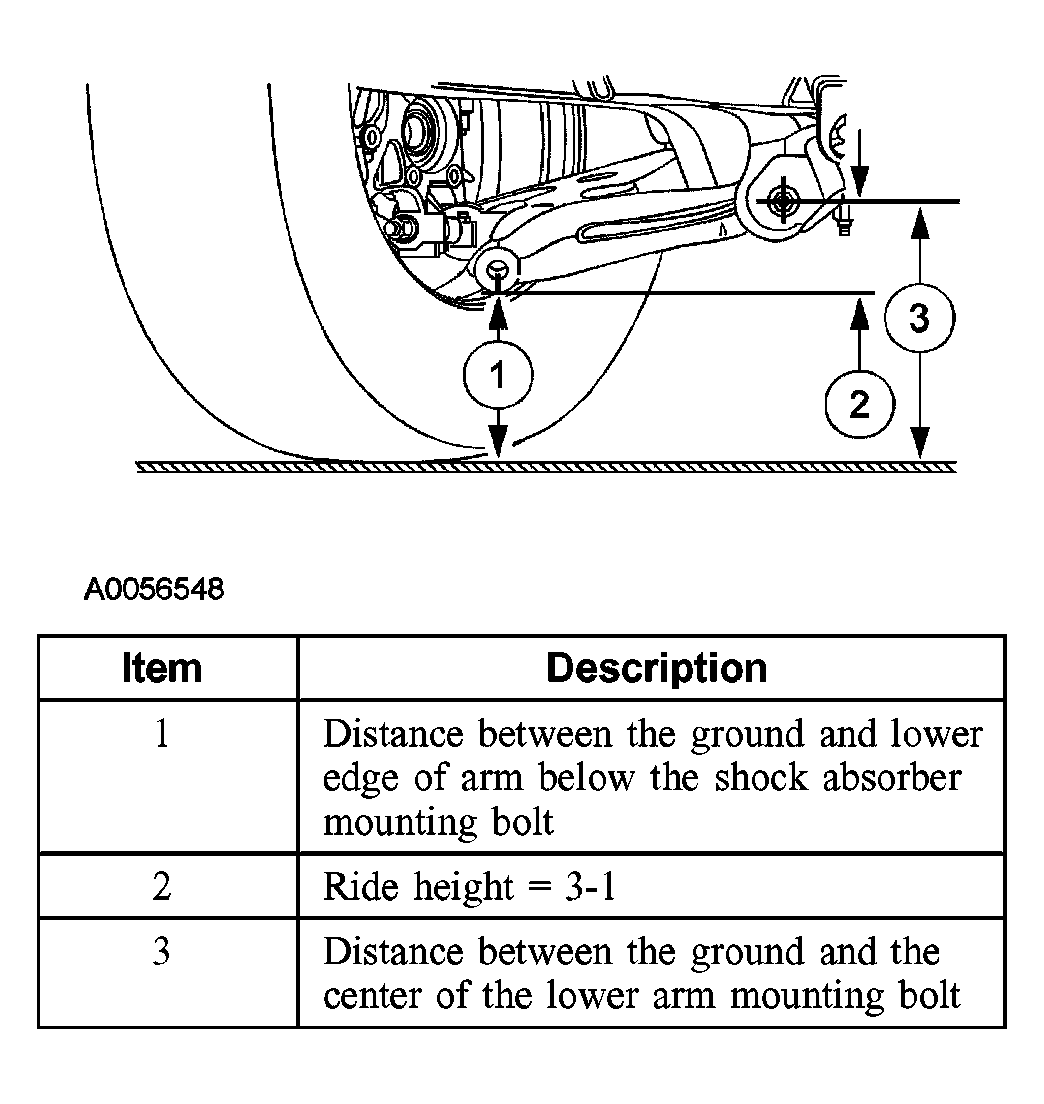

Fig 2: Identifying Rear Ride Height Measurements
G03927609Courtesy of FORD MOTOR CO.
