WARNING: This page is about a different car, the 2005 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

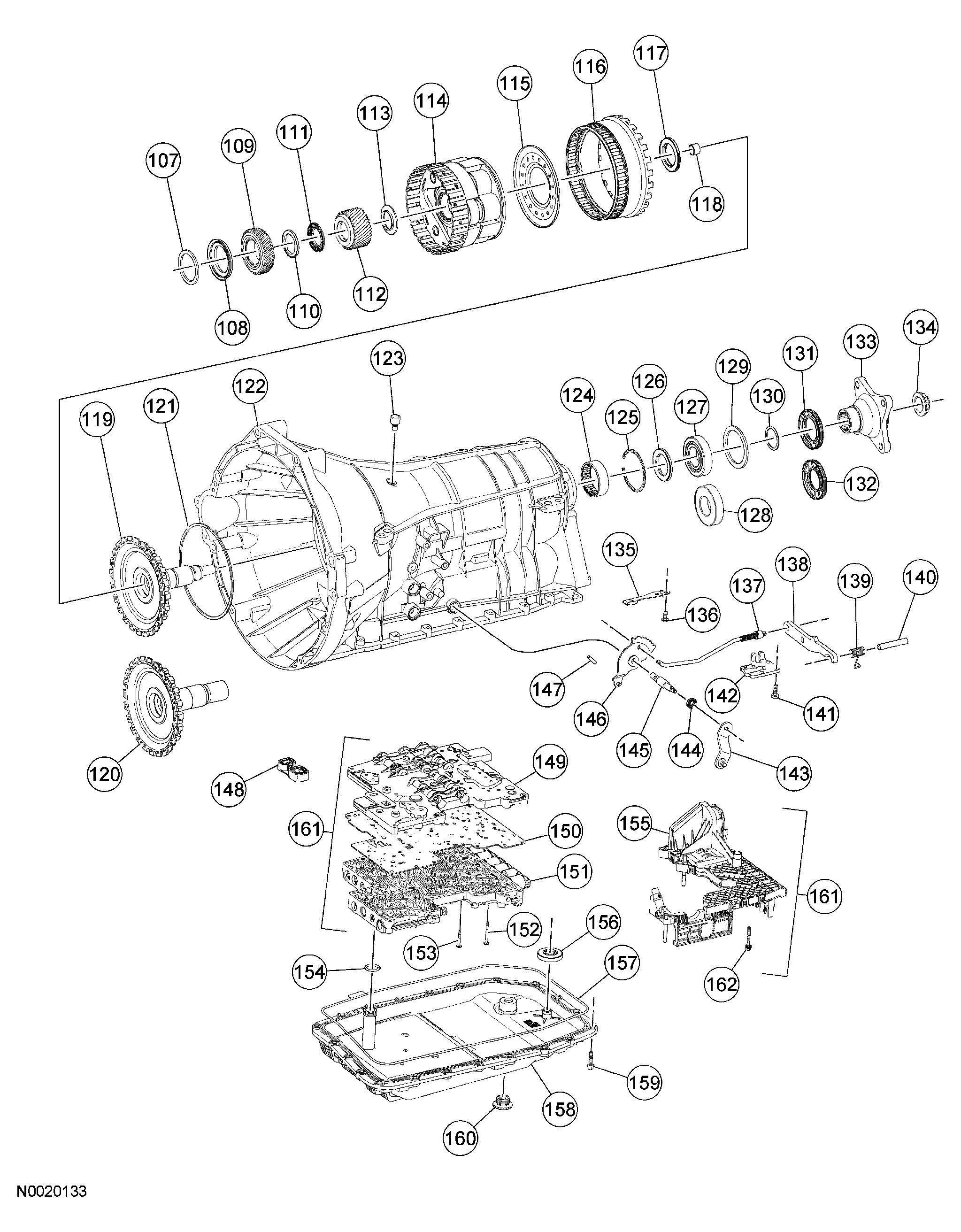

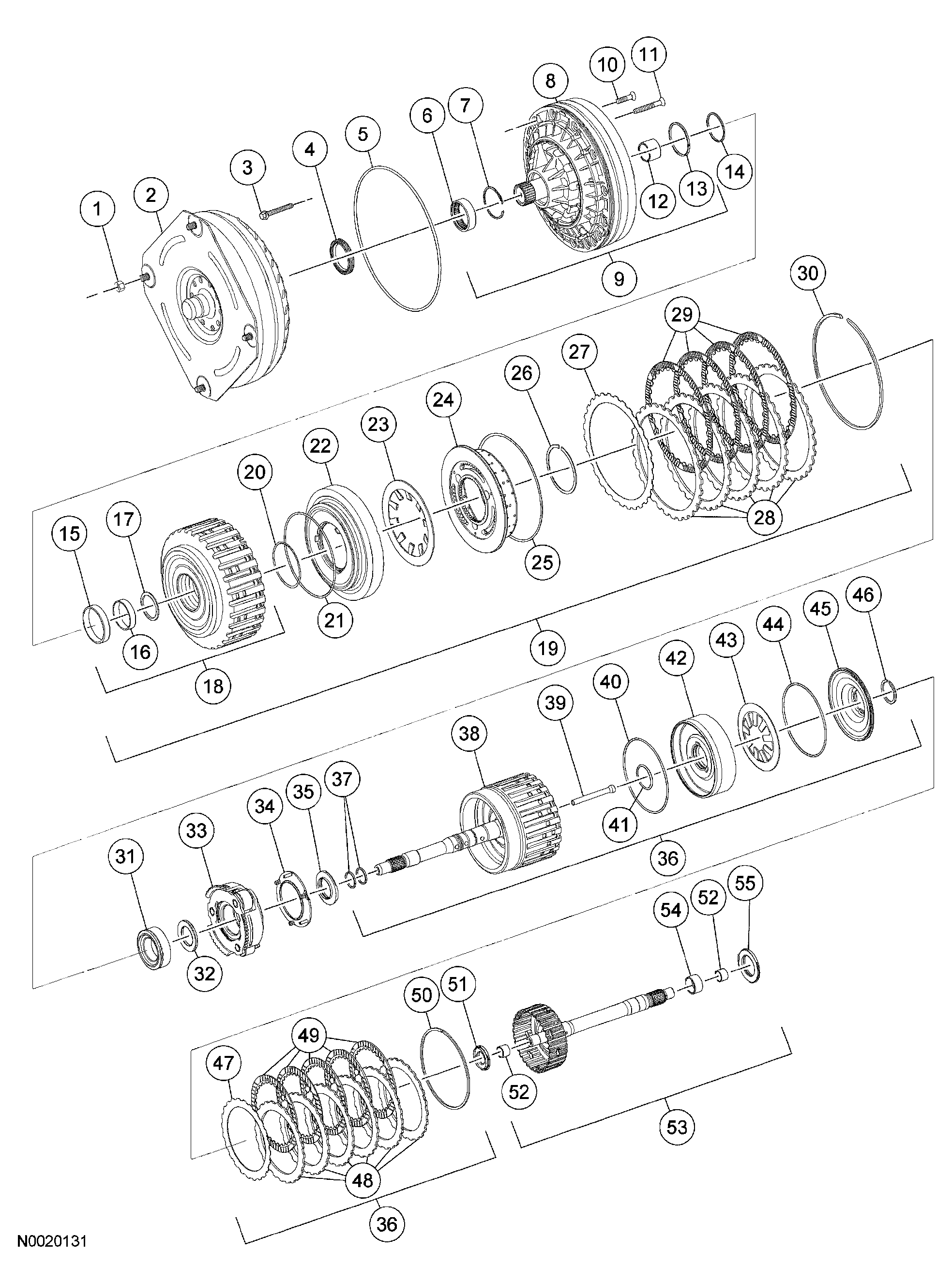

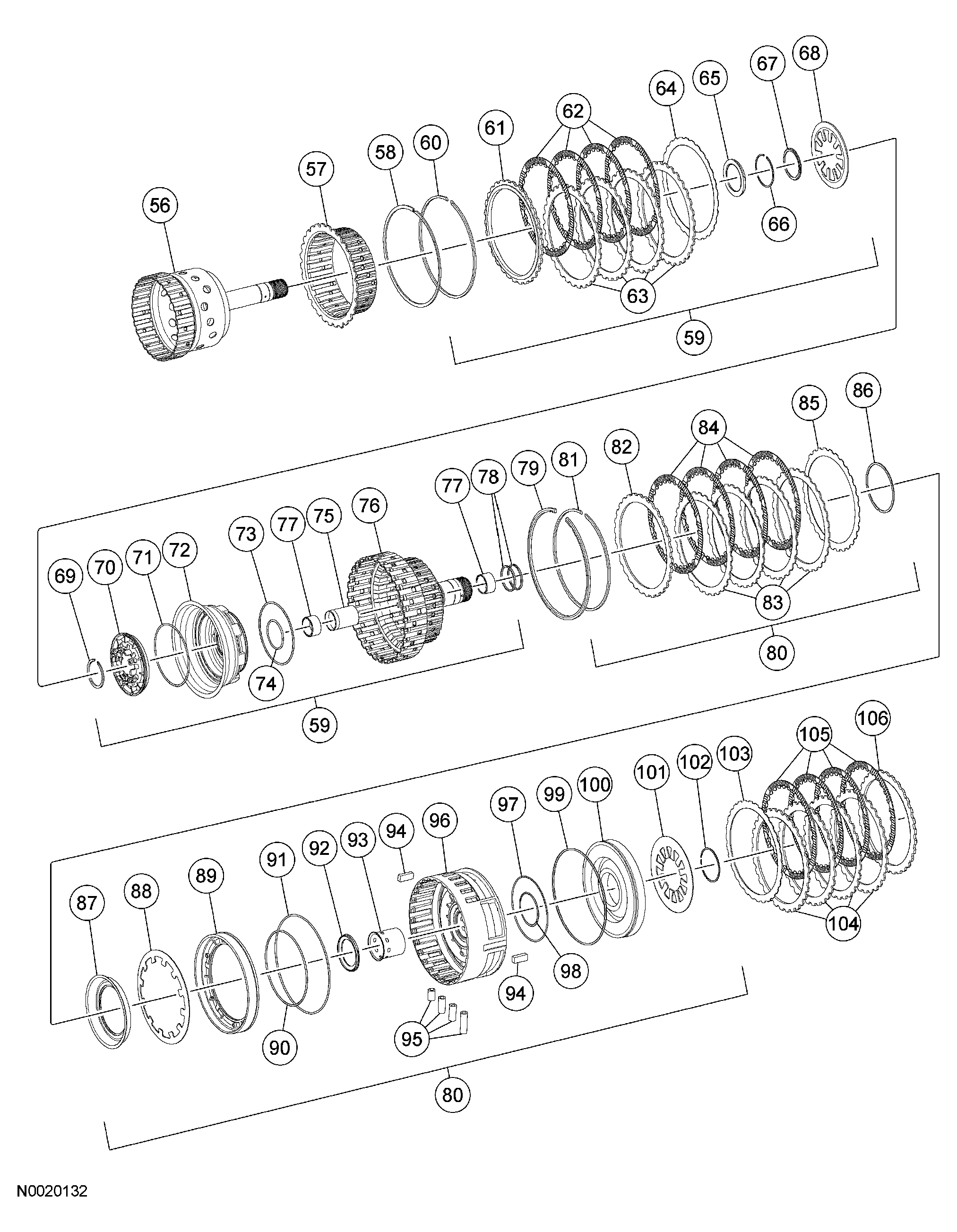

Fig 1: Exploded View Of Transmission Components (1 of 6)
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Transmission Components (2 of 6)
Courtesy of FORD MOTOR CO.
Fig 3: Exploded View Of Transmission Components (3 of 6)
Courtesy of FORD MOTOR CO.
Fig 4: Exploded View Of Transmission Components (4 of 6)
Courtesy of FORD MOTOR CO.
Fig 5: Exploded View Of Transmission Components (5 of 6)
Courtesy of FORD MOTOR CO.
Fig 6: Exploded View Of Transmission Components (6 of 6)
