Output Shaft and Direct Clutch Cylinder: Notes

SPECIAL TOOL TABLE

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-080 (T80L-77234-A)
Courtesy of FORD MOTOR CO.	Protector, Transmission Direct Clutch Outer Fluid Seal 307-422
Courtesy of FORD MOTOR CO.	Teflon Seal Installer 307-516 (kit consists of 307-516-1, 307-516-2, 307-516-3 and 307-516-4)
Courtesy of FORD MOTOR CO.	Protector Pilot, Seal 307-516-1
Courtesy of FORD MOTOR CO.	Protector, Seal
Courtesy of FORD MOTOR CO.	Assembly Pusher 307-516-3
Courtesy of FORD MOTOR CO.	Sizer, Seal 307-516-4

MATERIAL TABLE

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

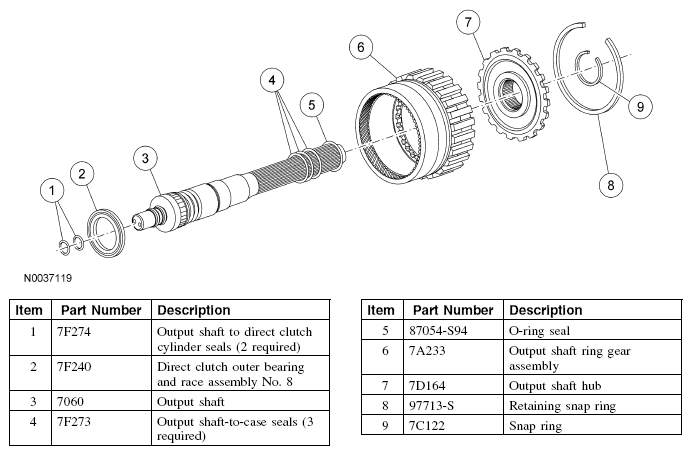

Fig 1: Exploded View Of Output Shaft and Hub

Courtesy of FORD MOTOR CO.

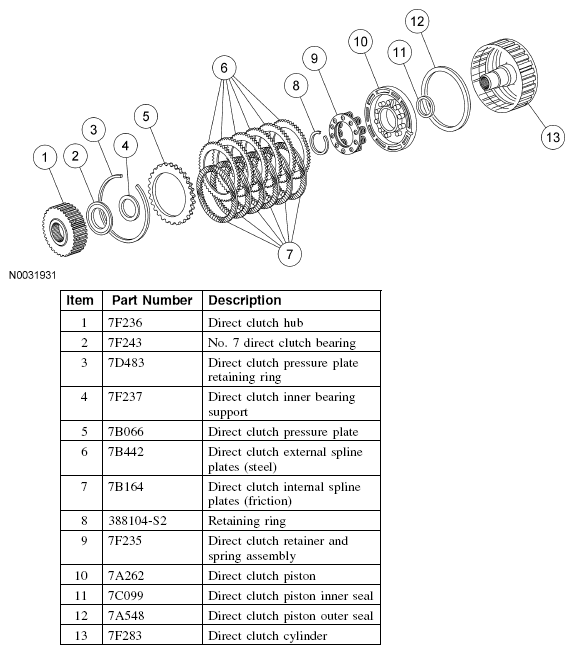

Fig 2: Exploded View Of Direct Clutch

Courtesy of FORD MOTOR CO.
