Front Toe Adjustment

NOTE: Air suspension vehicles must be at trim ride height prior to measuring or adjusting the caster, camber or toe. For additional information, refer to VEHICLE DYNAMIC SUSPENSION .

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.

NOTE: Do not allow the steering gear bellows to twist while rotating the spindle tie-rod.

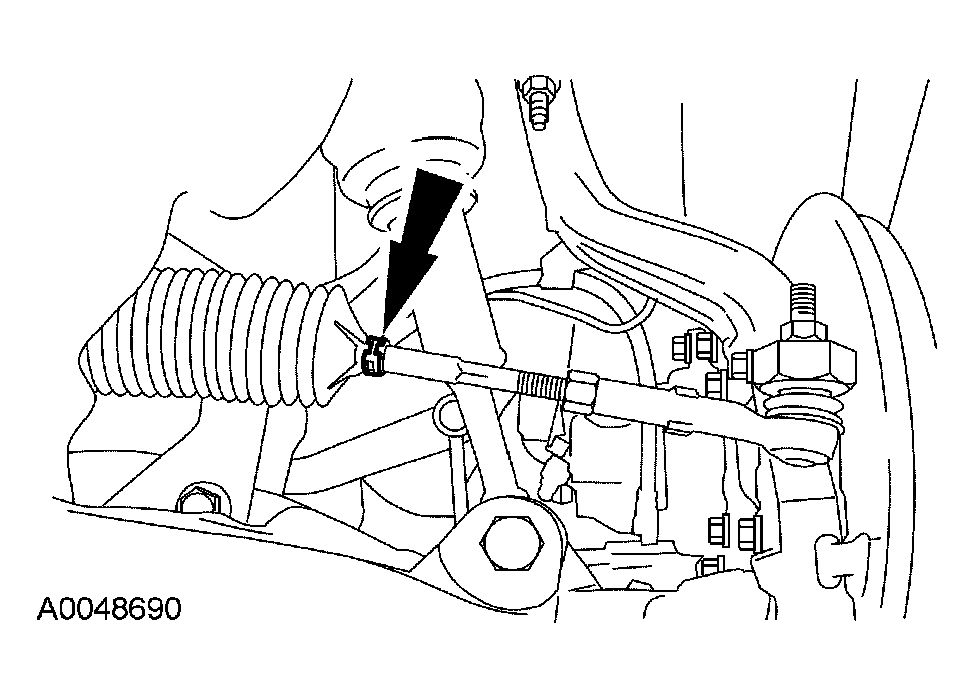

Fig 1: Removing Steering Gear Bellows Clamps

Courtesy of FORD MOTOR CO.

Remove the clamp(s).
Loosen the nut(s).
- Clean and lubricate the nut(s) and spindle tie-rod threads.

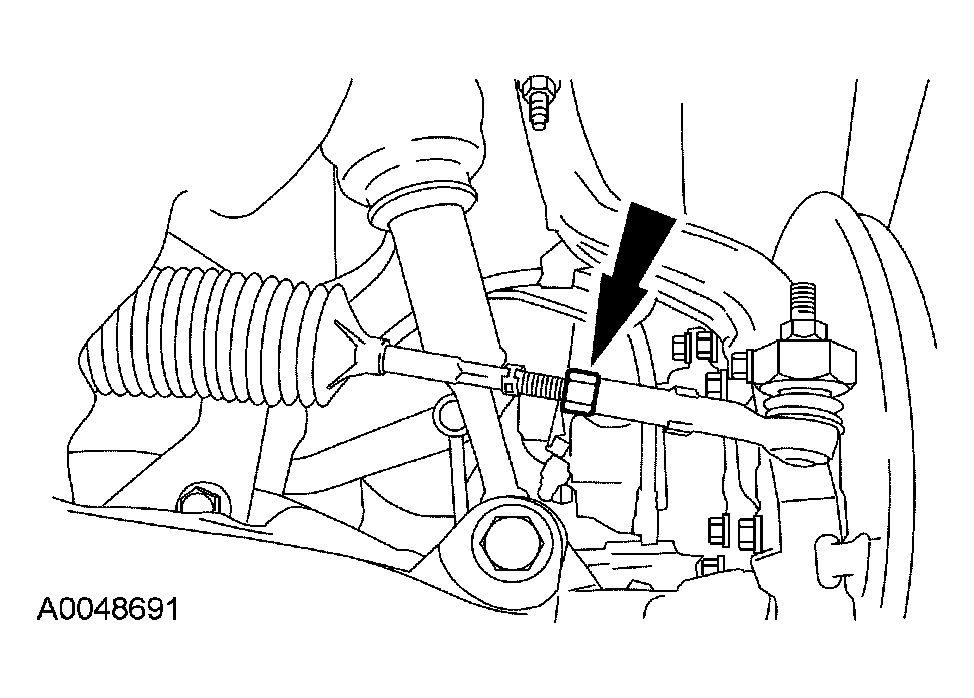

Fig 2: Loosening Spindle Tie-Rod Nut
Courtesy of FORD MOTOR CO.
Rotate the spindle tie-rod(s).

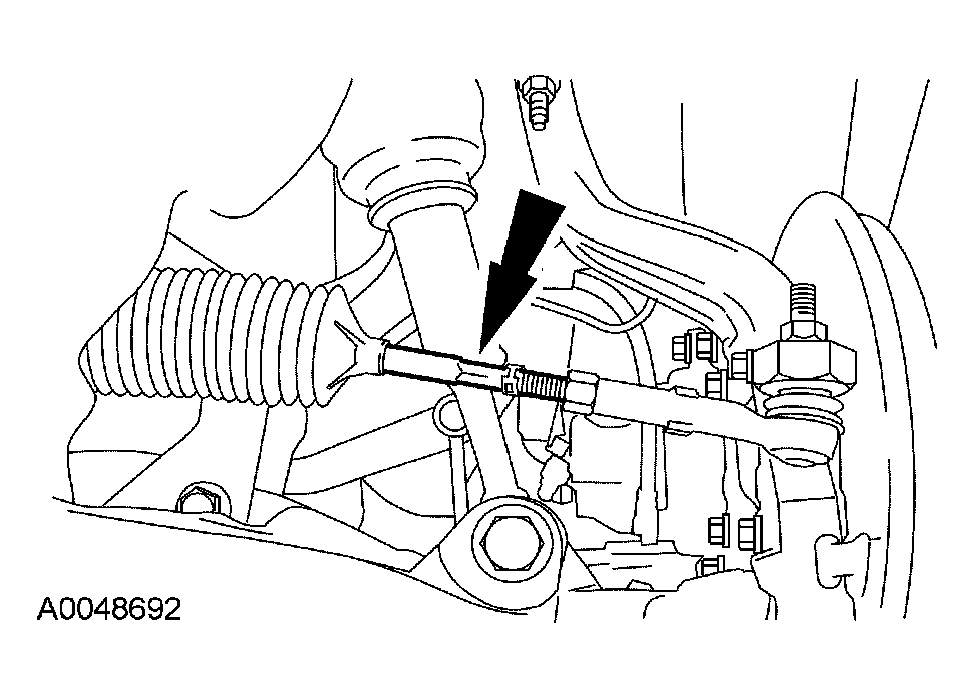

Fig 3: Rotating Spindle Tie-Rod
Courtesy of FORD MOTOR CO.
Start the engine and center the steering wheel.
- Recheck the toe settings and adjust if necessary.

CAUTION: Make sure to hold the tie-rod end stationary while tightening the nut or damage to the boot can occur.

NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

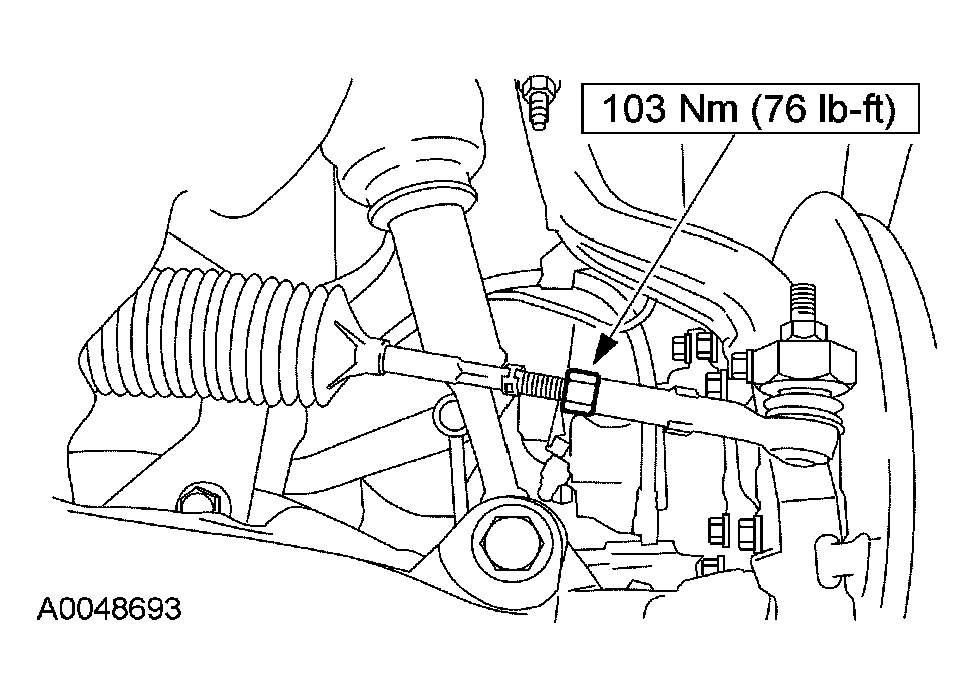

Fig 4: Tightening Spindle Tie-Rod Nut

Courtesy of FORD MOTOR CO.

Tighten the nut(s).
Install the clamp(s).

Fig 5: Installing Steering Gear Bellows Clamps
Courtesy of FORD MOTOR CO.
