Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

    Vehicles with a center console

    WARNING: The tightening torque of the air bag restraints control module (RCM) bracket retaining bolts is critical for correct system operation.
  1. Position the RCM with bracket and install the 4 bolts.
    • Tighten to 12 N.m (9 lb-ft).

    2. All vehicles

  2. Make sure the connector position assurance lever is in the full release position before attempting to connect the connector.
    Fig 1: Identifying Connector Position Assurance Lever
    G04631527Courtesy of FORD MOTOR CO.
    3. CAUTION: Putting the large RCM electrical connector into the RCM on an angle can cause bad electrical connections and damage components.
  3. Position the large RCM electrical connector into the RCM.
      CAUTION: Do not push the connector on to where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the RCM before using the lever to fully seat the connector.
      Fig 2: Identifying Large RCM Electrical Wiring Connector
      G04631528Courtesy of FORD MOTOR CO.
    • With the large RCM electrical connector uniformly aligned to the RCM, lightly push in until a subtle audible click is heard and slight resistance is felt.
  4. Connect the RCM electrical connector.
    • Pivot the connector position assurance lever toward the RCM, drawing the connector in to the RCM.
      • Make sure the thumb tab is engaged to the retainer on the RCM and locked in place.

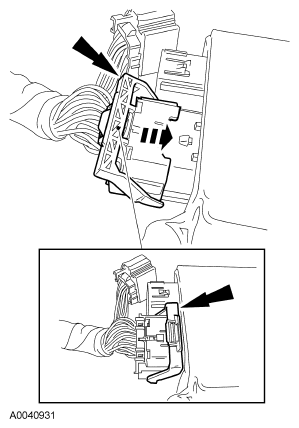

        Fig 3: Connecting RCM Electrical Connector
        G04631529Courtesy of FORD MOTOR CO.
  5. Connect the small RCM electrical connector.
    Fig 4: Locating Small RCM Electrical Connector
    G04631530Courtesy of FORD MOTOR CO.

    6. Vehicles with 60/40 front bench seat

    WARNING: The tightening torque of the air bag restraints control module (RCM) to bracket retaining nuts is critical for correct system operation.
  6. Position the RCM to the bracket and install the 3 nuts.
    • Tighten to 12 N.m (9 lb-ft).
  7. Position the RCM top bracket and install the nuts.
    • Tighten to 12 N.m (9 lb-ft).

    8. Vehicles with a center console

  8. Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

    9. Vehicles with 60/40 front bench seat

  9. Install the 60 percent portion of the front bench seat. For additional information, refer to INSTALLATION .

    10. All vehicles

  10. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  .
