Transmission Insulator and Retainer: Installation

CAUTION: Be sure not to raise the back of the transmission too high. If it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

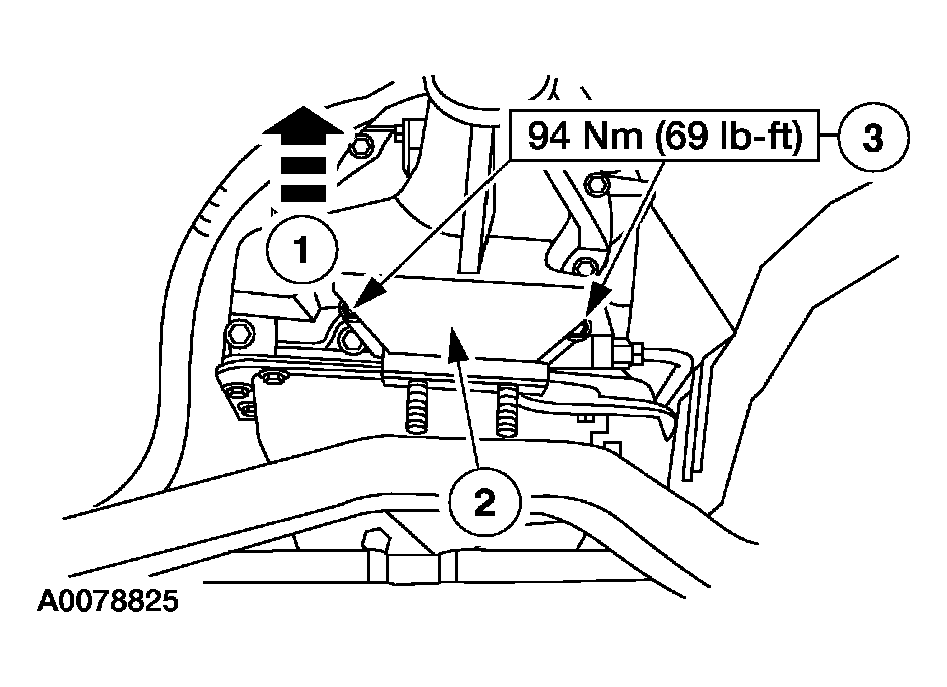

Fig 1: Installing Rear Transmission Mount With Torque Specifications

Courtesy of FORD MOTOR CO.

Install the rear transmission mount.
1. Raise the transmission up.
2. Install the rear transmission mount.
3. Install the bolts.
Lower the transmission on to the rear crossmember support.

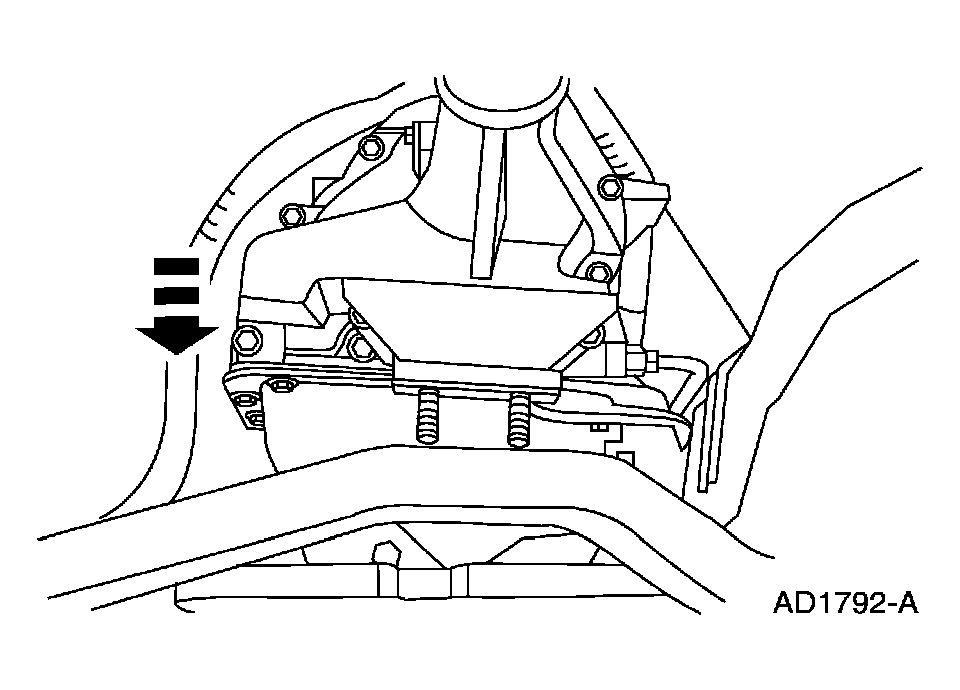

Fig 2: Lowering Transmission On To Rear Crossmember Support
Courtesy of FORD MOTOR CO.
Install the nuts.

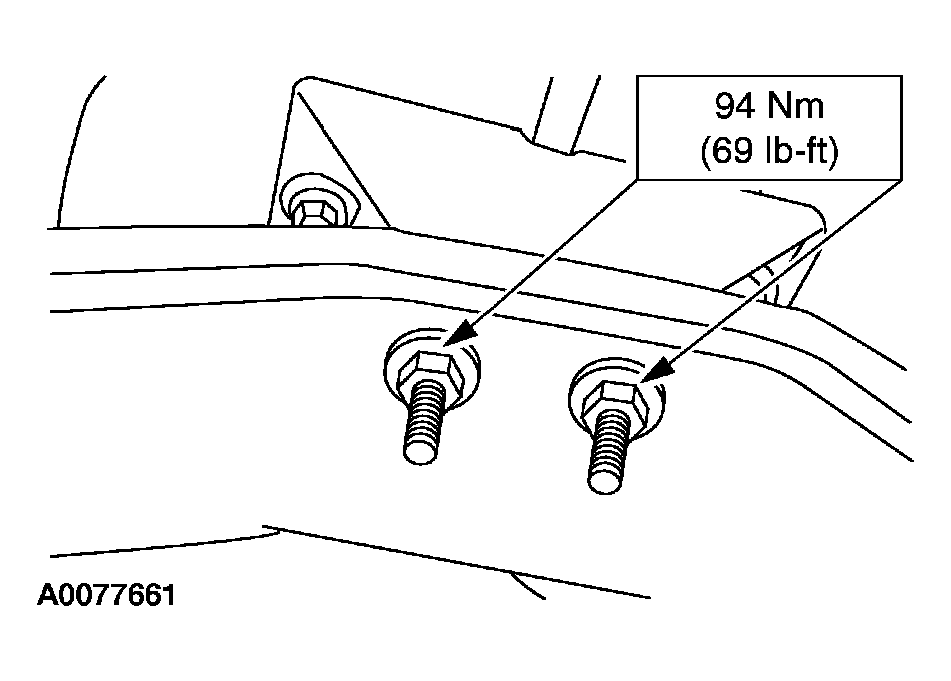

Fig 3: Rear Crossmember Support Nuts With Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the high-lift transmission jack.
Remove the supports and lower the vehicle.
