Digital Transmission Range (TR) Sensor: Removal

NOTE: If the vehicle is equipped with a power take-off unit, all or part of the PTO unit may need to be removed.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, Refer to JACKING & LIFTING .
  2. Disconnect the connector.

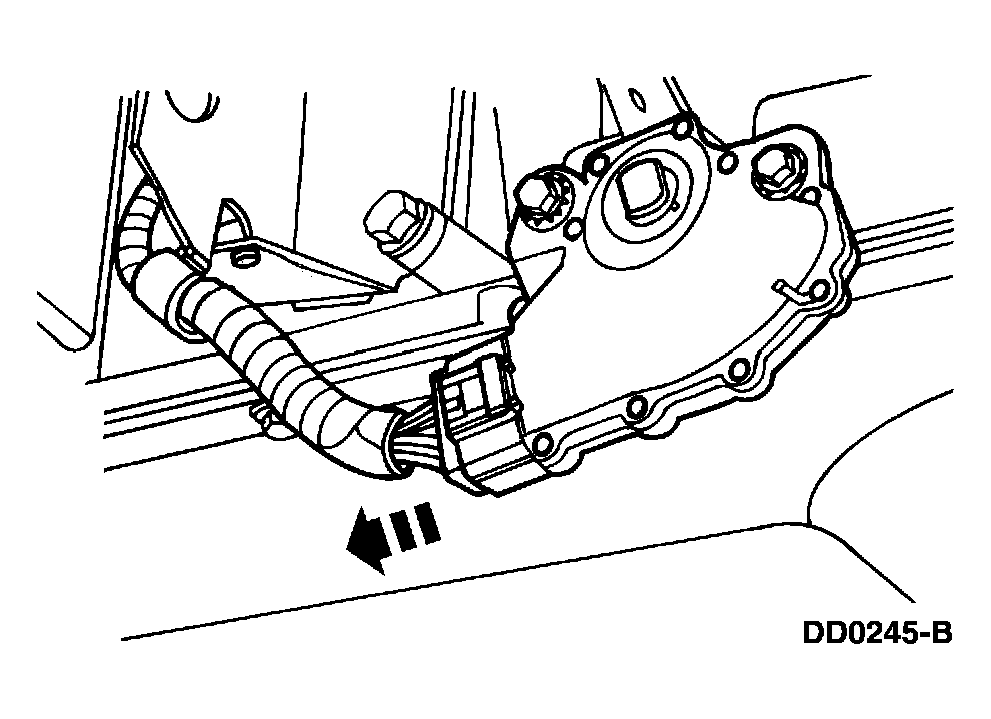

    Fig 1: Disconnecting Connector
    G03908347Courtesy of FORD MOTOR CO.
  3. Disconnect the shift cable at the manual control lever.

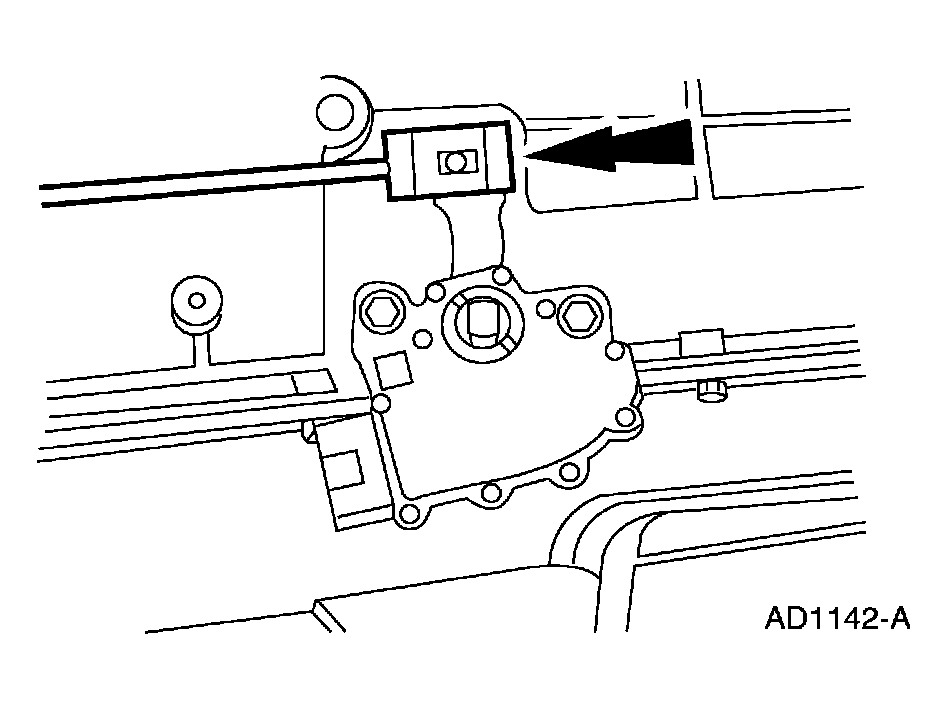

    Fig 2: Disconnecting Shift Cable At Manual Control Lever
    G03908348Courtesy of FORD MOTOR CO.
  4. Remove the digital transmission range (TR) sensor.
    1. Remove the bolts.
    2. Remove the digital transmission range (TR) sensor.

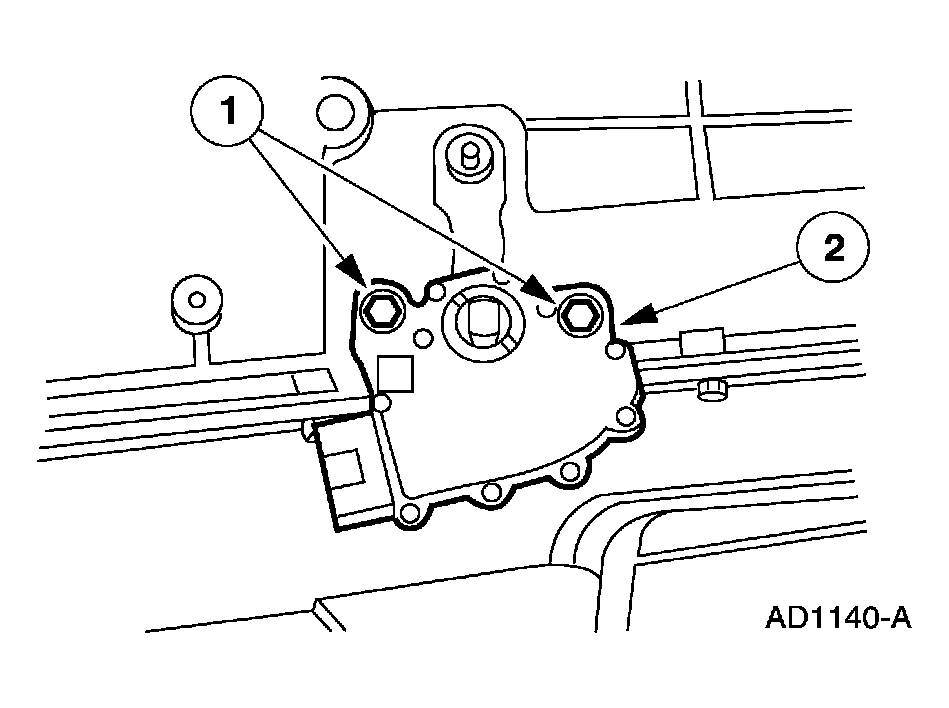

    Fig 3: Removing Digital Transmission Range (TR) Sensor
    G03908328Courtesy of FORD MOTOR CO.
