Special Tool(s)

SPECIAL TOOL(S) CHART

G03952119
 Remover, O-Ring Seal
100-010 (T71P-19703-C)

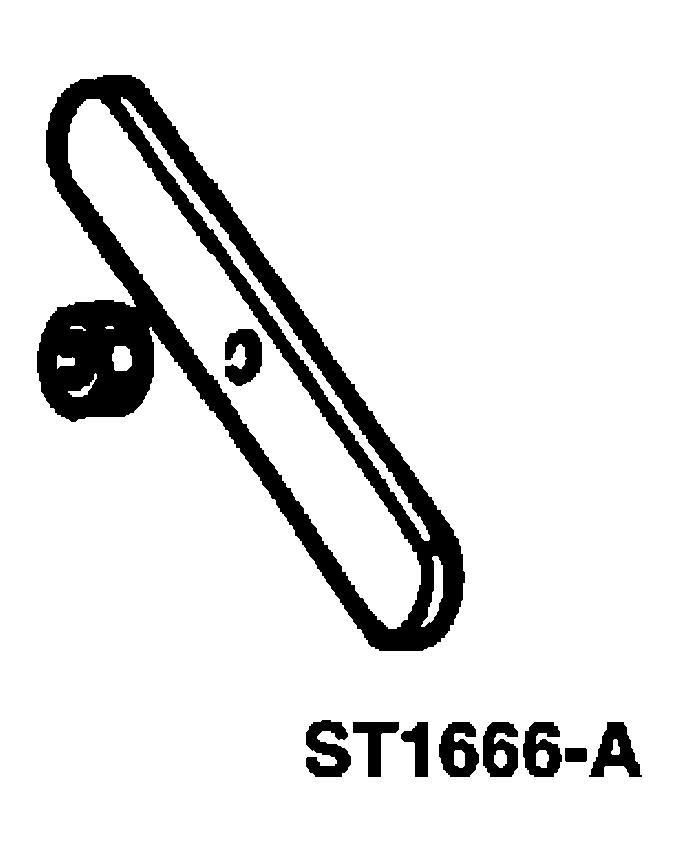

G03908568
 Compressor Plate, Clutch Spring
307-192 (T88C-77000-AH2)

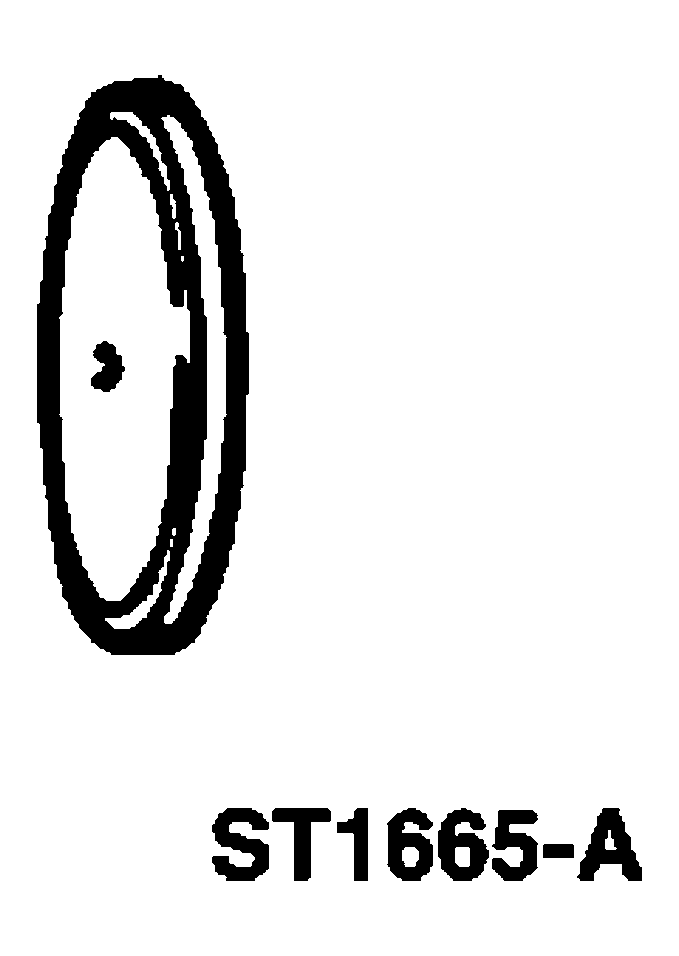

G03908569
 Compressor Plate, Clutch Spring
307-225 (T89T-70010-C2)

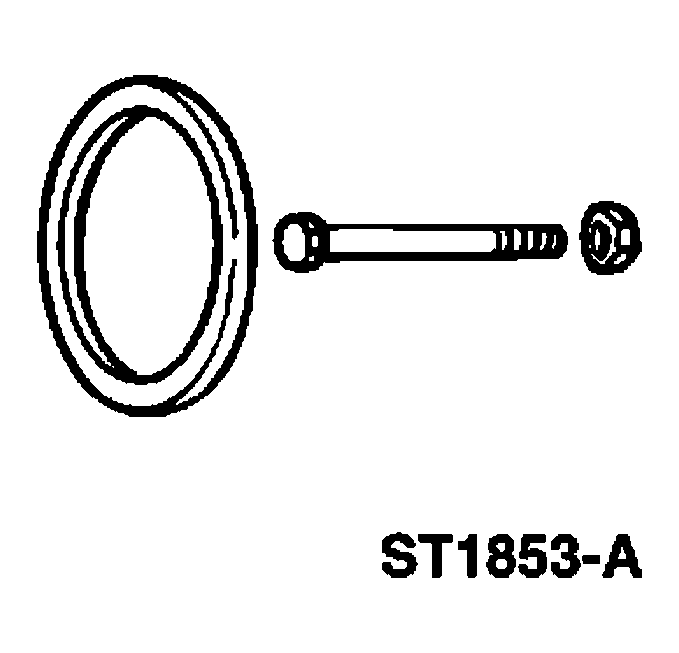

G03908570
 Compressor Plate, Clutch Spring
307-228 (T89T-70010-F)

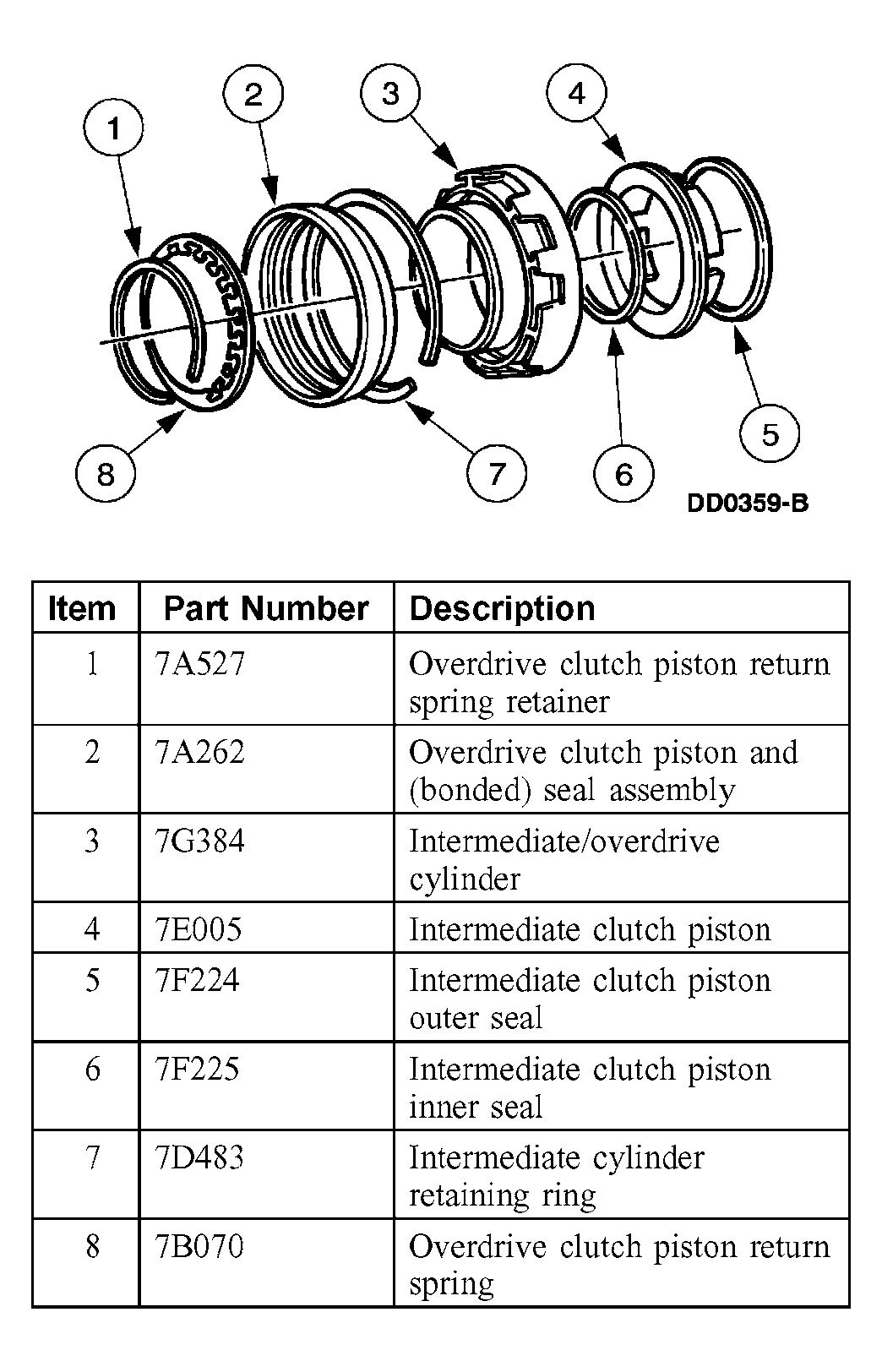

Fig 1: Exploded View Of Intermediate/Overdrive Cylinder Assembly
G03908571Courtesy of FORD MOTOR CO.
