Removal and Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Disconnect the engine oil temperature (EOT) sensor.
    Fig 1: Locating Engine Oil Temperature Sensor
    G03887108Courtesy of FORD MOTOR CO.
  3. Remove the EOT sensor.

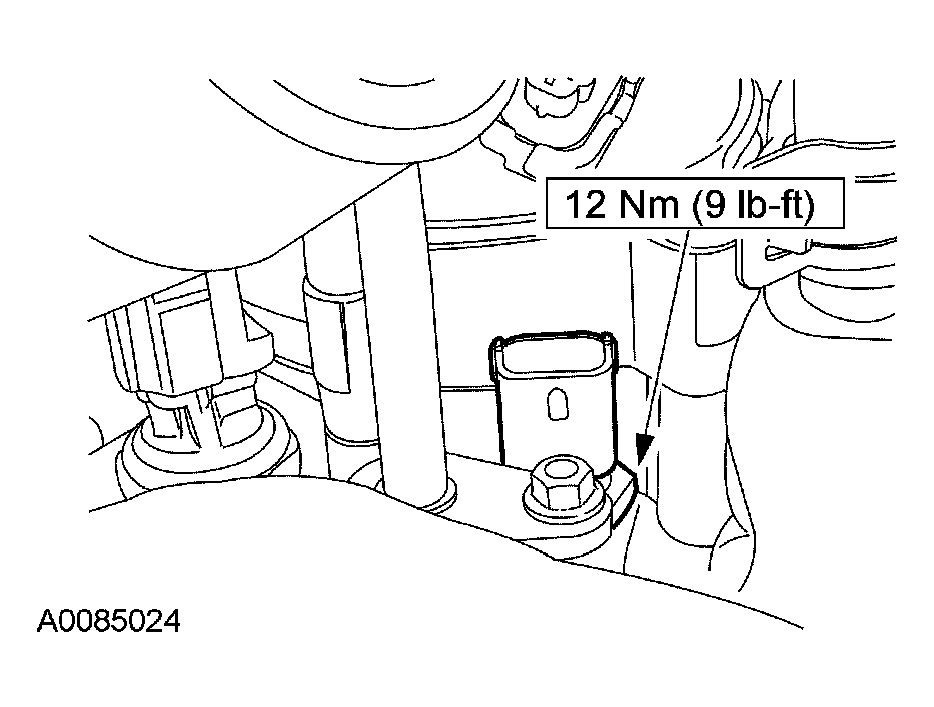

    Fig 2: Removing Engine Oil Temperature Sensor With Torque Specifications
    G03888427Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
