Section 6 (Automatic Transmission - 5R110W): Installation: Transmission: Installation

WARNING: This page is about a different variant/trim than selected.

    All applications

    CAUTION: Prior to the installation of the transmission, the fluid cooler lines must be cleaned. Otherwise transmission failure can occur.
  1. Clean the fluid cooler lines. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING  in this article.
    2. CAUTION: Prior to the installation of the transmission, a new transmission fluid cooler remote filter must be installed. Otherwise transmission failure can occur.
  2. Install a new transmission fluid cooler remote filter. For additional information, refer to TRANSAXLE/TRANSMISSION COOLING .
    3. CAUTION: Prior to the installation of the assembly, the torque converter pilot hub must be correctly lubricated or damage to the torque converter or the engine crankshaft can occur.
    Fig 1: Lubricating Torque Converter Pilot Hub With Multi-Purpose Grease
    G03889591Courtesy of FORD MOTOR CO.
  3. Lubricate the torque converter pilot hub with multi-purpose grease.
    4. NOTE: Rotate the torque converter so the orange or green paint dabs are in the 12 o'clock position.

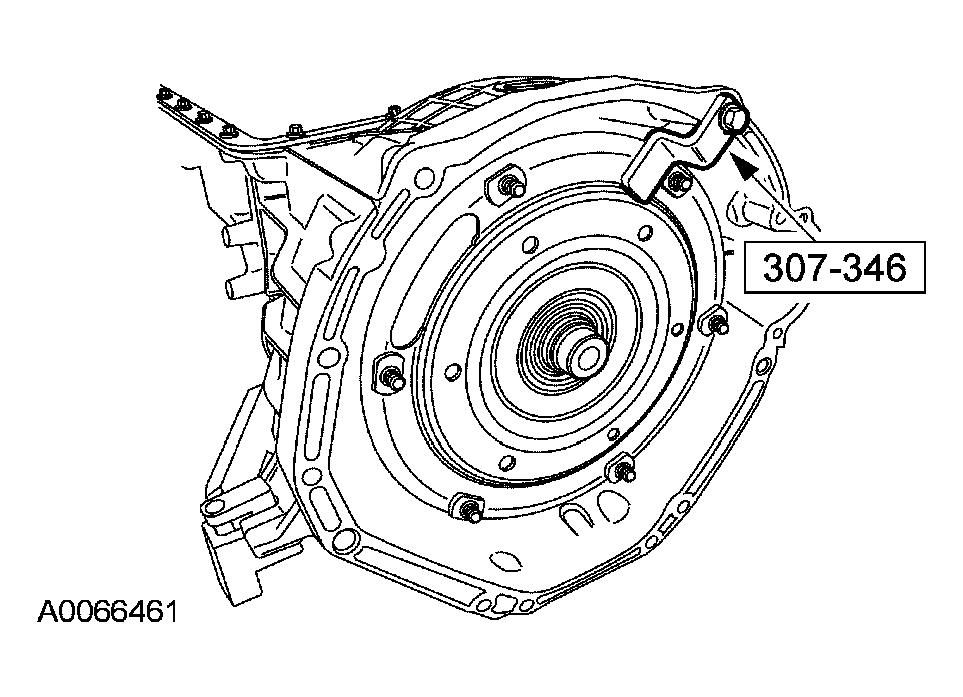

    Fig 2: Identifying Special Torque Converter Tool
    G03889283Courtesy of FORD MOTOR CO.
  4. If the special tool has not been installed during the assembly of the transmission, install the special tool to hold the torque converter in place while moving and positioning the transmission in place. Once the transmission is in place and before bolting it to the engine remove the special tool.
  5. Position the transmission in place. While raising the transmission into the engine compartment, align the fluid filler tube with the stub tube on the transmission using the fluid level indicator as a guide.

    While installing the transmission to the engine, align the torque converter studs with the mounting holes in the flexplate.

    Fig 3: Positioning Transmission In Place
    G03889593Courtesy of FORD MOTOR CO.
  6. Install nine transmission-to-engine bolts.

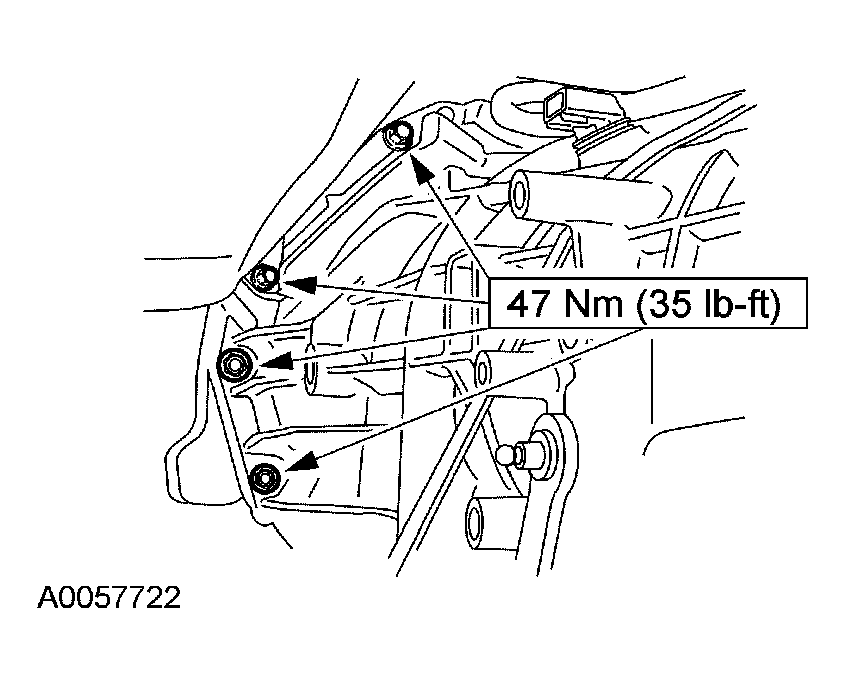

    Fig 4: Installing Nine Transmission-To-Engine Bolts With Torque Specification
    G03889631Courtesy of FORD MOTOR CO.
    7. NOTE: Using a suitable strap wrench, rotate the crankshaft pulley to gain access to the torque converter nuts.

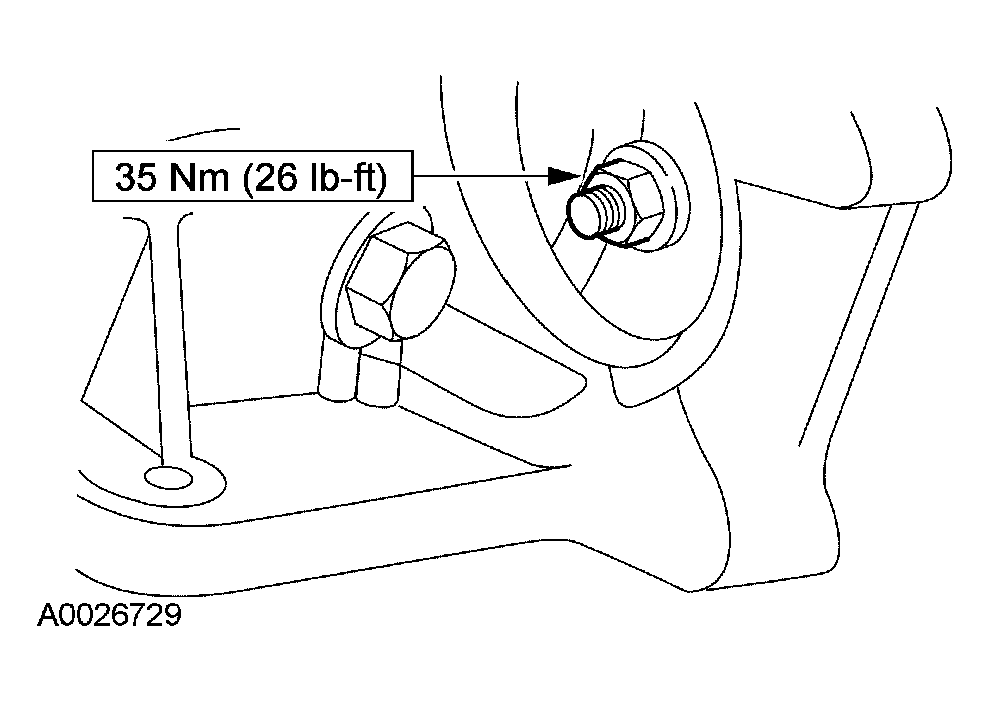

    Fig 5: Torque Converter-To-Flexplate Nuts With Torque Specifications
    G03886114Courtesy of FORD MOTOR CO.
  7. Install six new torque converter-to-flexplate nuts.
  8. Install the cylinder block opening cover.
    Fig 6: Identifying Cylinder Block Torque Converter Cover
    G03889219Courtesy of FORD MOTOR CO.
  9. Install the front transmission fluid cooler tube.

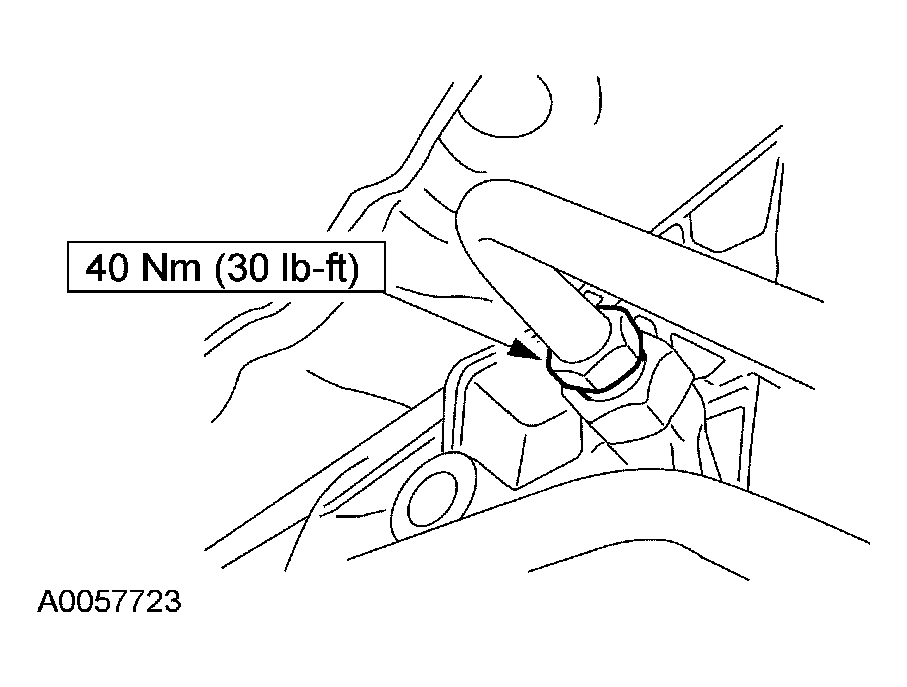

    Fig 7: Installing Front Transmission Fluid Cooler Tube With Torque Specification
    G03909381Courtesy of FORD MOTOR CO.
  10. Install the rear transmission fluid cooler tube.

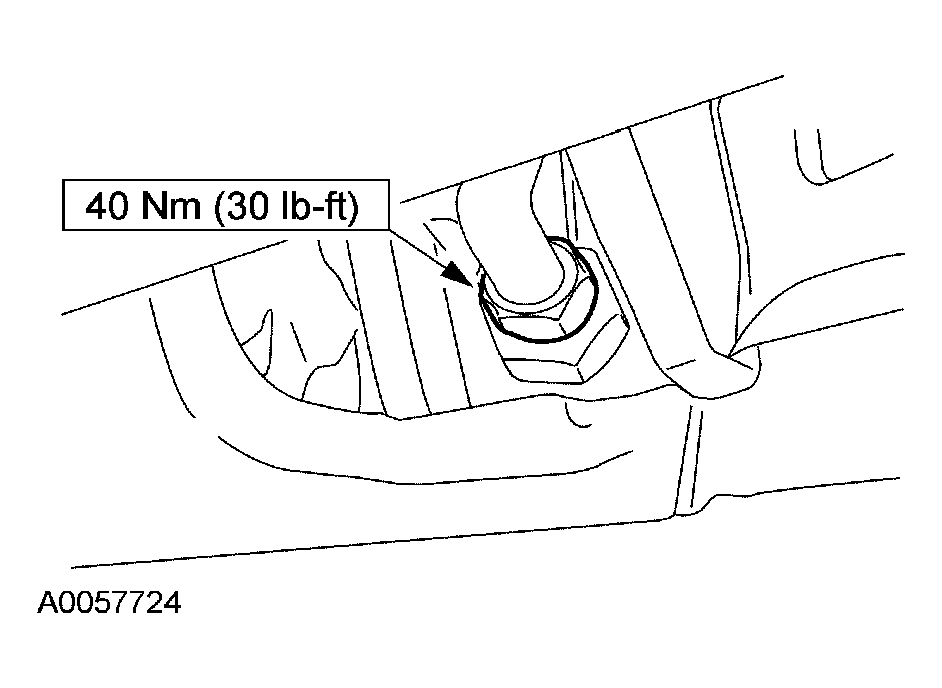

    Fig 8: Installing The Rear Transmission Fluid Cooler Tube With Torque Specification
    G03909382Courtesy of FORD MOTOR CO.

    11. 4x4 applications

  11. Support the extension housing with a jack stand and remove the transmission jack.

    12. 4x2 applications

  12. Install the transmission mount.

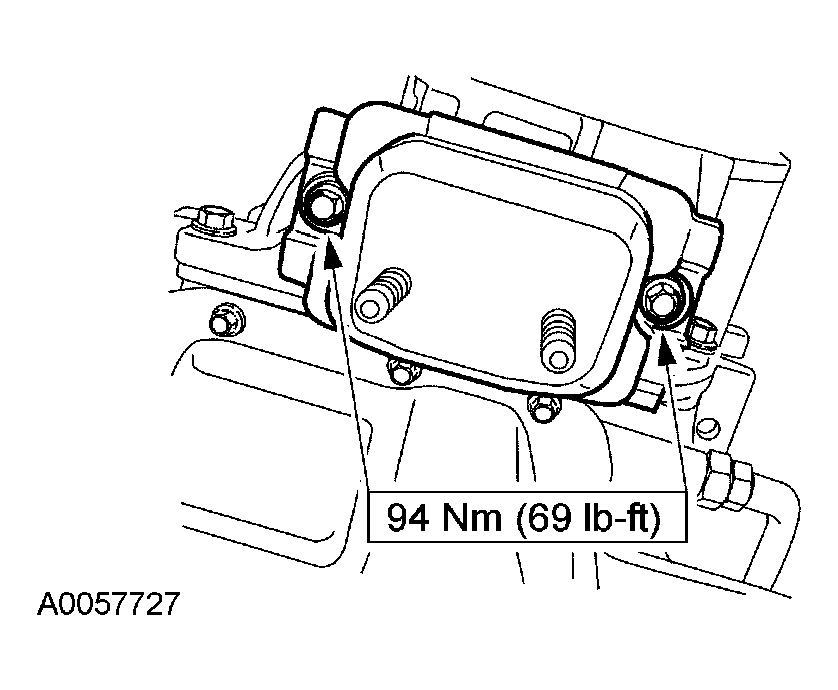

    Fig 9: Installing Transmission Mount With Torque Specification
    G03889602Courtesy of FORD MOTOR CO.
  13. Position the crossmember to the transmission mount and loosely install the nut.
    Fig 10: Locating Crossmember To Transmission Mount
    G03889185Courtesy of FORD MOTOR CO.
  14. Install the LH crossmember bolts.
    Fig 11: Installing LH Crossmember Bolts With Torque Specification
    G03908296Courtesy of FORD MOTOR CO.
  15. Install the RH crossmember bolts.
    Fig 12: Installing RH Crossmember Bolts With Torque Specification
    G03909832Courtesy of FORD MOTOR CO.
  16. Tighten the rear insulator nuts.

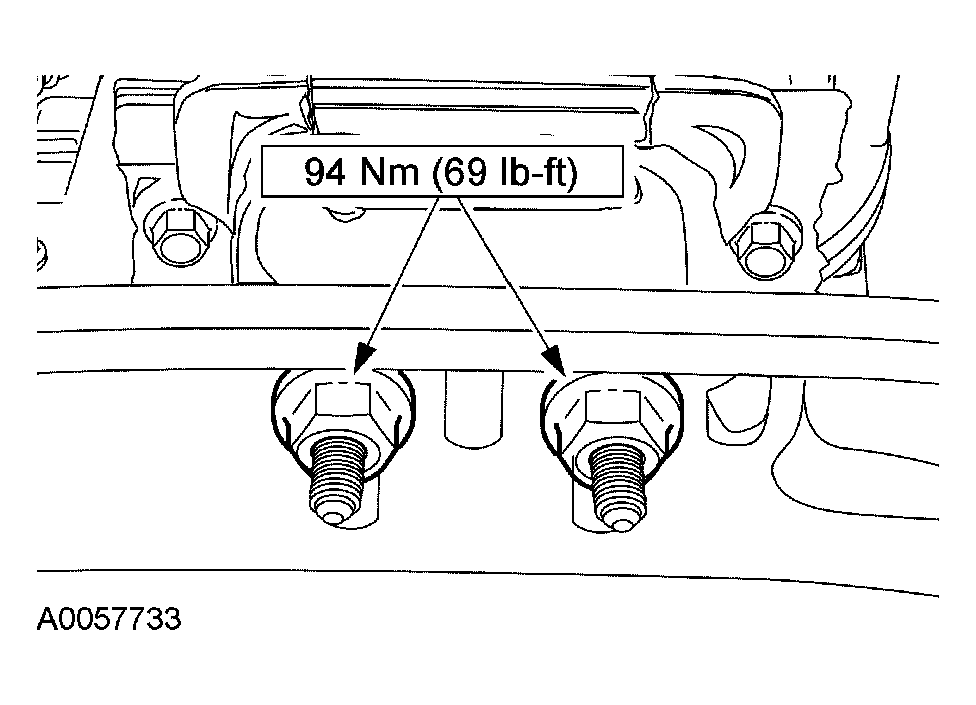

    Fig 13: Rear Transmission Mount Insulator Nuts With Torque Specification
    G03889190Courtesy of FORD MOTOR CO.
    17. NOTE: RH shown.

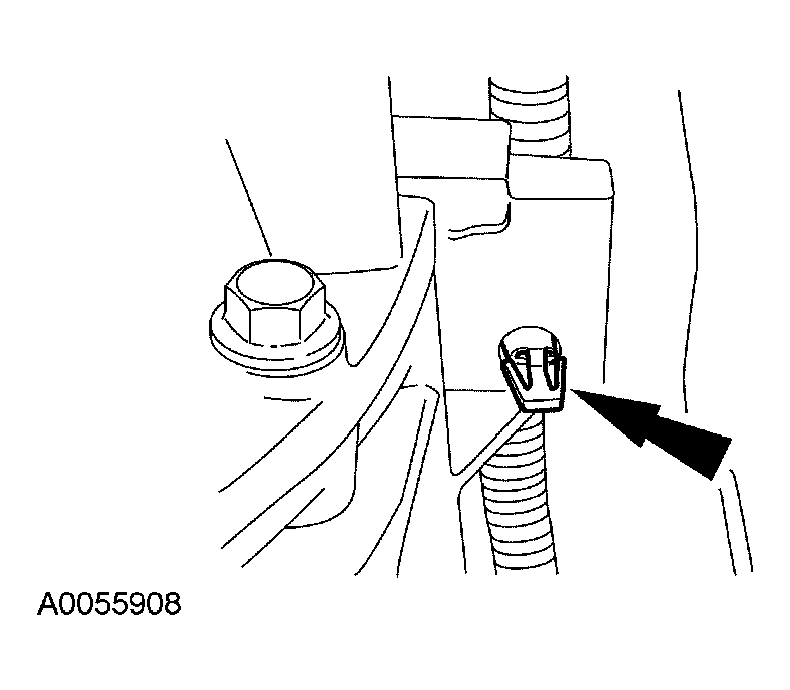

    Fig 14: Connecting RH And LH Wiring Harness To Side Of Transmission (RH Shown)
    G03909016Courtesy of FORD MOTOR CO.
  17. Connect the RH and LH wiring harness to the side of the transmission.
  18. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 15: Identifying Output Shaft Speed (OSS) Sensor Electrical Connector
    G03889074Courtesy of FORD MOTOR CO.
  19. Connect the intermediate shaft and turbine shaft combination speed sensor electrical connector.
    Fig 16: Identifying Intermediate Shaft And Turbine Shaft Combination Speed Sensor Electrical Connector
    G03889065Courtesy of FORD MOTOR CO.
  20. Connect the solenoid body electrical connector.

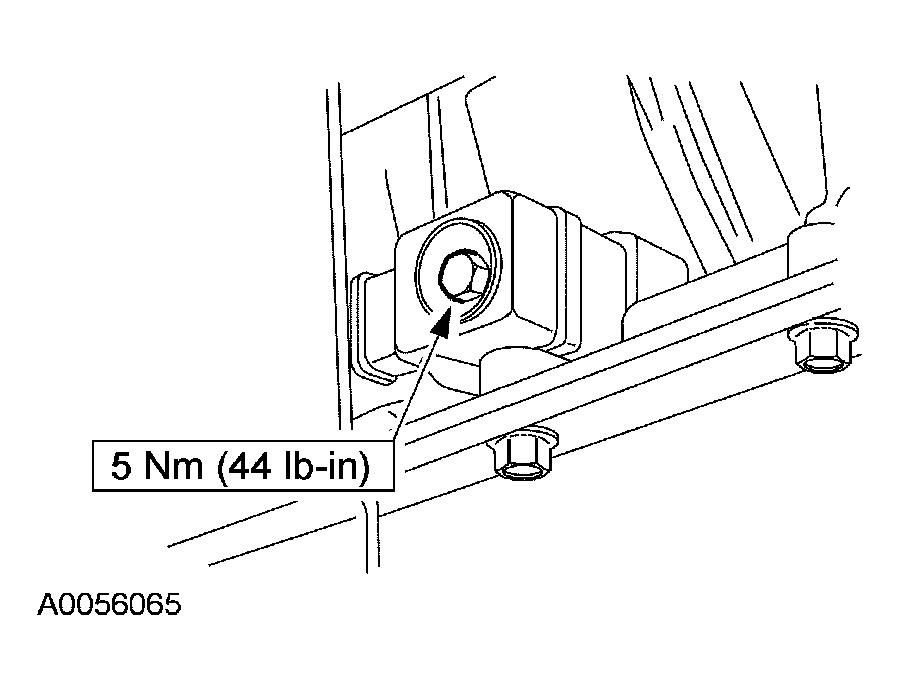

    Fig 17: Solenoid Body Electrical Connector With Torque Specification
    G03889059Courtesy of FORD MOTOR CO.
  21. Connect the shift cable.
    1. Install the cable housing bracket.
    2. Install the shift cable to the manual lever.

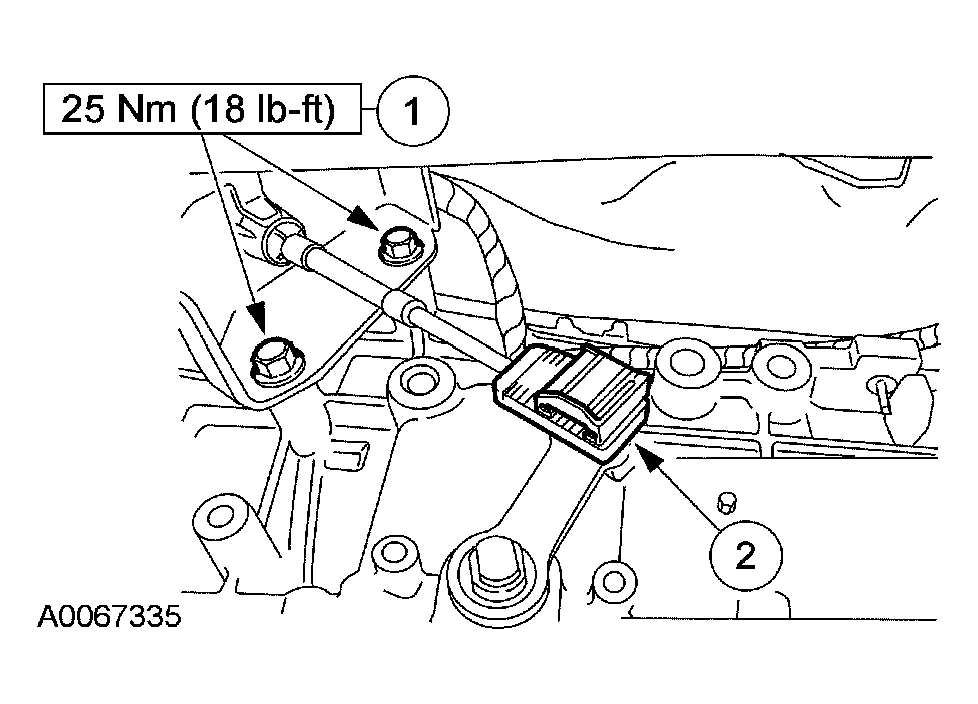

      Fig 18: Installing Shift Cable To Manual Lever With Torque Specification
      G03909392Courtesy of FORD MOTOR CO.

    22. 4x2 applications

  22. Reconnect the wire harness to the frame.
    Fig 19: Locating Wire Harness At Rear Of Crossmember
    G03908863Courtesy of FORD MOTOR CO.

    23. 4x4 applications

  23. If equipped, install the transfer case. For additional information, refer to TRANSFER CASE .

    24. 4x2 applications

  24. Install the rear driveshaft. For additional information, refer to DRIVESHAFT .

    25. All applications

  25. Adjust the shift linkage. Verify that the vehicle starts in PARK and NEUTRAL and the REVERSE lamps illuminate in REVERSE. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  26. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
  27. Use the following guidelines for the in-line transmission fluid filter:
    • If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
    • If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
    • If the transmission is being installed for non-internal repair, do not install an in-line filter or filter kit.
    • If installing a new or a Ford-authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.
    • Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information, refer to TRANSMISSION FLUID IN-LINE FILTER  in this article.
