Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

    4x4 vehicles

  1. Install the output shaft speed (OSS) sensor.
    1. Lubricate the O-ring and install the output shaft speed (OSS) sensor.
    2. Install the bolt.

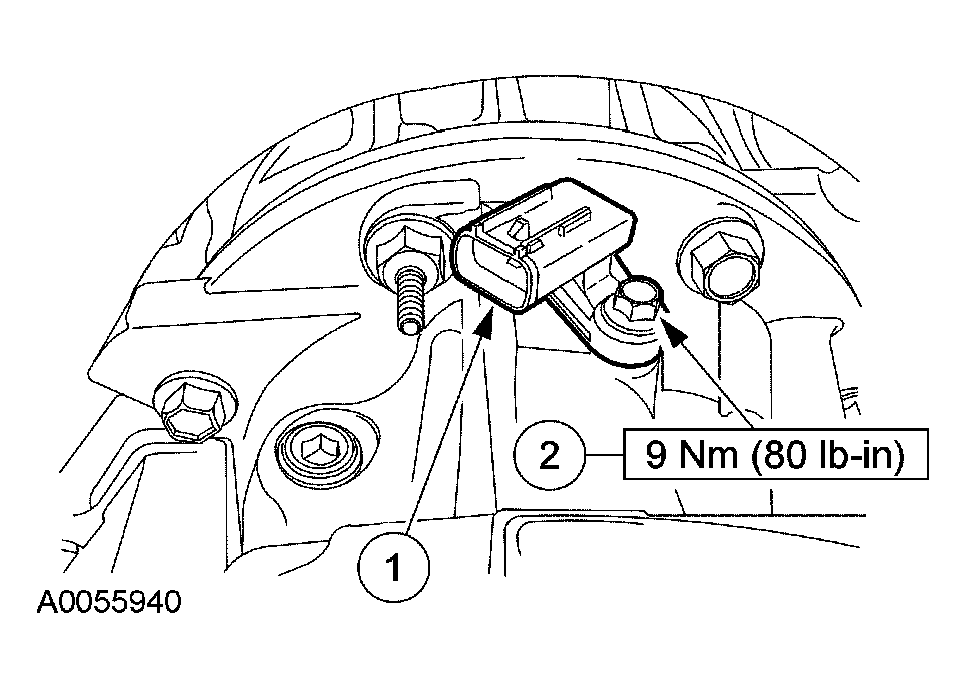

    Fig 1: Installing Output Shaft Speed (OSS) Sensor With Torque Specification
    G03908877Courtesy of FORD MOTOR CO.

    2. 4x2 vehicles

  2. Install the output shaft speed (OSS) sensor.
    1. Lubricate the O-ring and install the output shaft speed (OSS) sensor.
    2. Install the bolt.

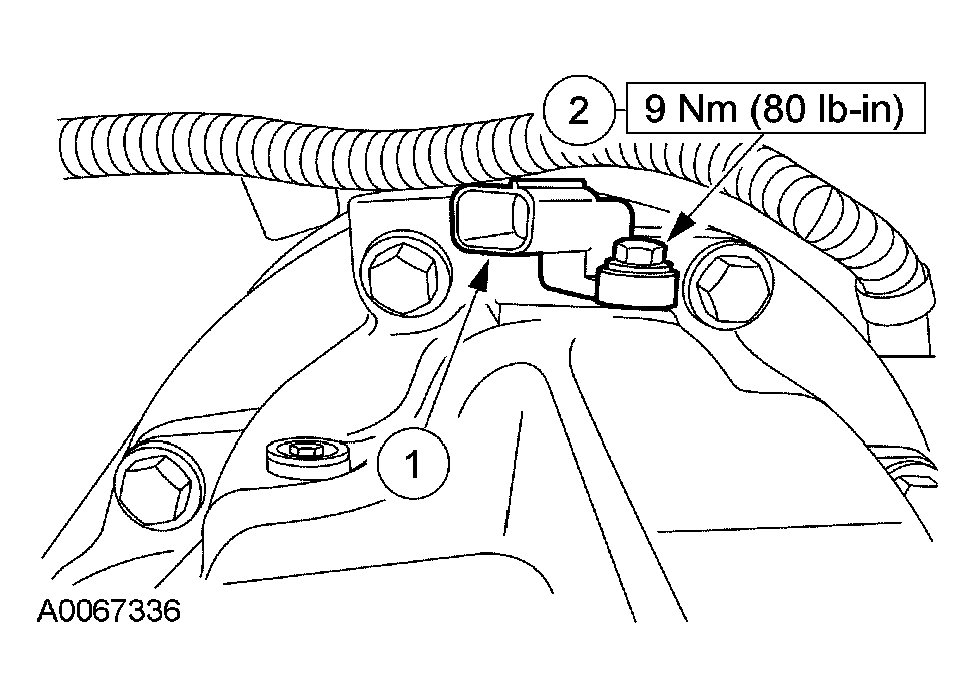

    Fig 2: Installing Output Shaft Speed (OSS) Sensor With Torque Specification
    G03889076Courtesy of FORD MOTOR CO.

    3. All vehicles

  3. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 3: Identifying Output Shaft Speed (OSS) Sensor Electrical Connector
    G03889074Courtesy of FORD MOTOR CO.
