Solenoid Body: Assembly

WARNING: This page is about a different variant/trim than selected.

Install a new gasket and the backing plate.

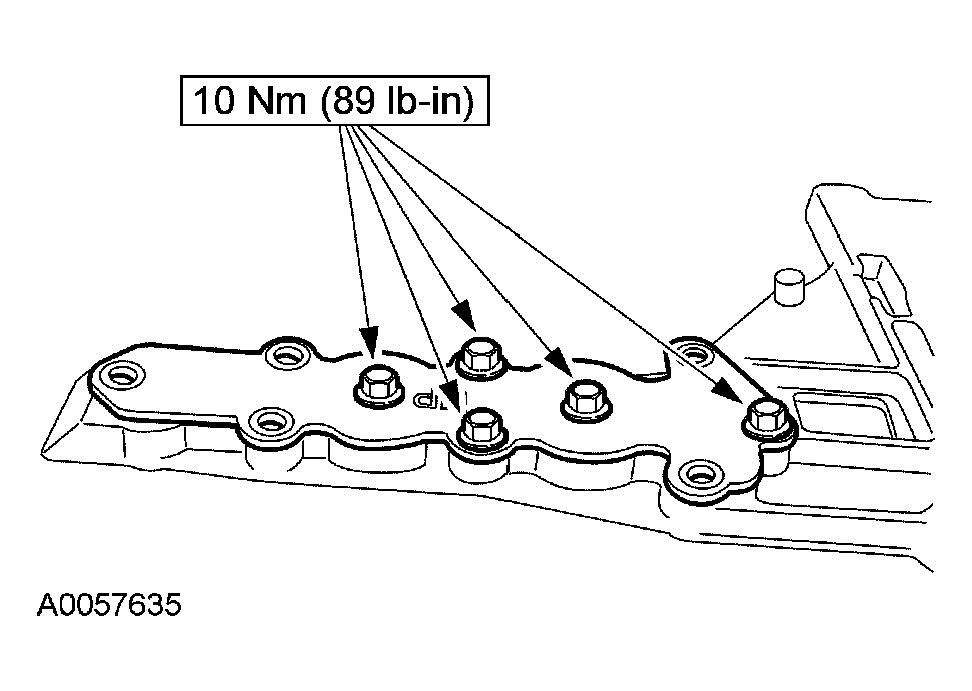

Fig 1: Installing A New Gasket And Backing Plate With Torque Specification
Courtesy of FORD MOTOR CO.
Install a new filter screen gasket.

Fig 2: Installing A New Filter Screen Gasket
Courtesy of FORD MOTOR CO.

NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

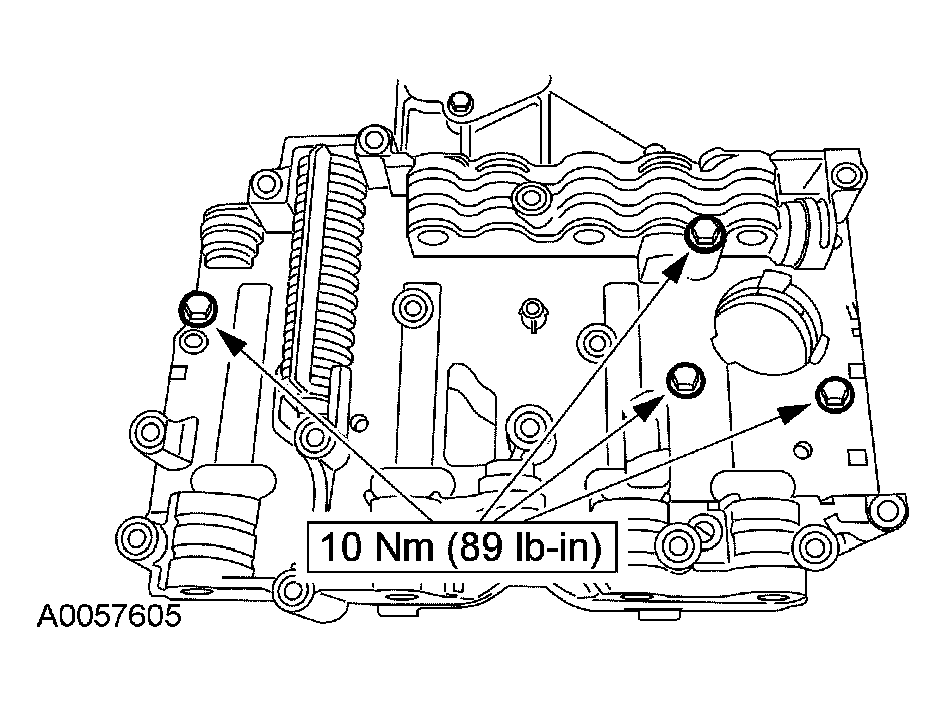

Fig 3: Assembling Top And Bottom Halves Of Solenoid Body With Torque Specification

Courtesy of FORD MOTOR CO.

Assemble the top and bottom halves of the solenoid body.
Install the TFT sensor.

Fig 4: Installing TFT Sensor
Courtesy of FORD MOTOR CO.
Install the shift solenoids with the E-clips.

Fig 5: Installing Shift Solenoids With E-Clips
Courtesy of FORD MOTOR CO.
Install the solenoid body harness and connect the connectors.

Fig 6: Installing Solenoid Body Harness And Connect Connectors
Courtesy of FORD MOTOR CO.
Install a new O-ring on the solenoid body electrical connector in the uppermost groove.

Fig 7: Locating Solenoid Body Electrical Connector O-Ring Seal
Courtesy of FORD MOTOR CO.
Install the manual valve.

Fig 8: Installing Manual Valve
Courtesy of FORD MOTOR CO.
