Section 6 (Automatic Transmission - 5R110W)
>>
Description And Operation
>>
Main Components and Functions
>>
Automatic Transmission - Sectional View
Automatic Transmission - Sectional View
WARNING:
This page is about a different variant/trim than selected.

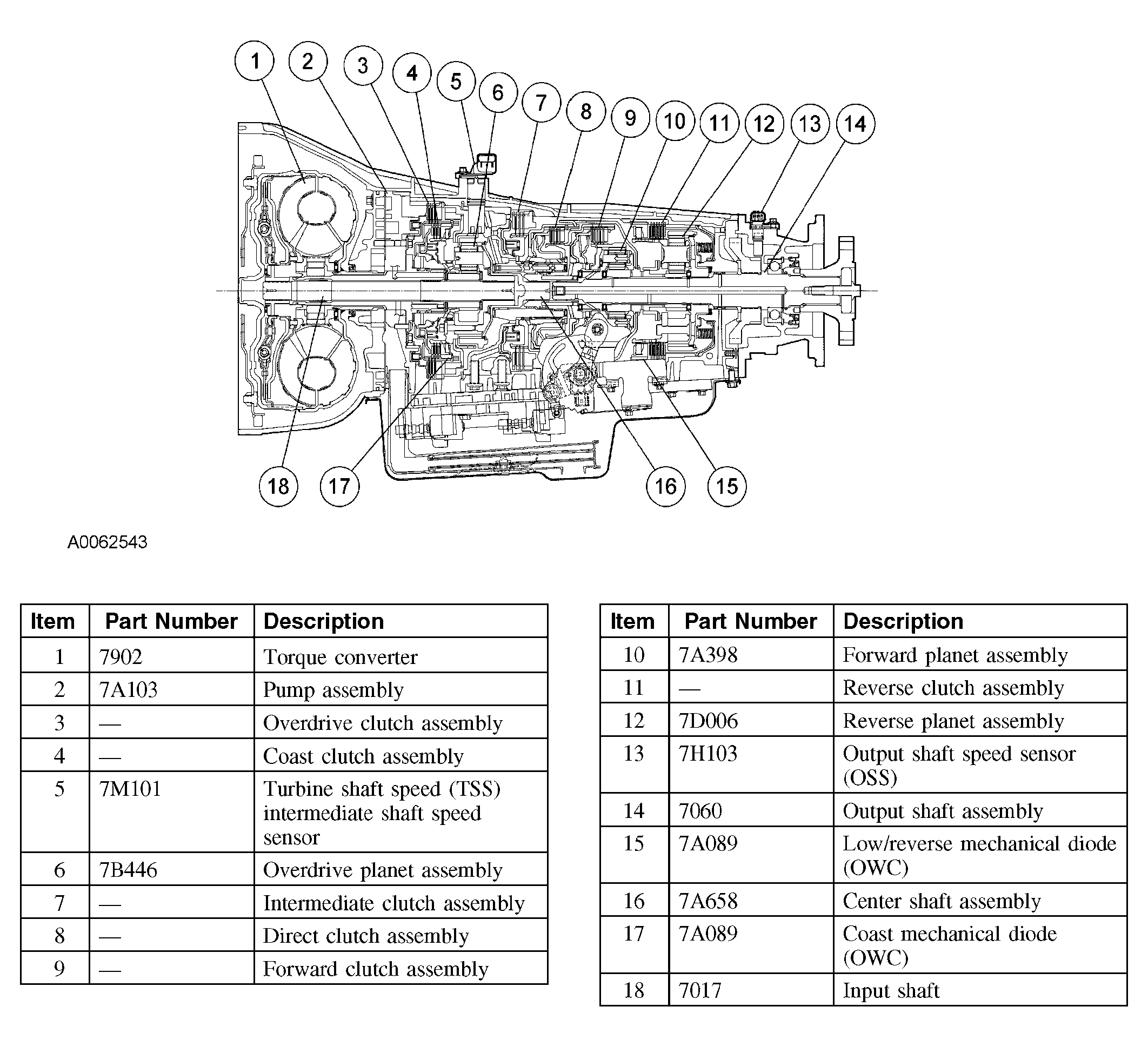

Fig 1: Sectional View Automatic Transmission
Courtesy of FORD MOTOR CO.
