Seal - Front Output: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, REFER to JACKING & LIFTING .
Remove the skid plate, if equipped.

Fig 1: Removing Skid Plate
Courtesy of FORD MOTOR CO.

NOTE: Index-mark the front driveshaft and the transfer case front flange to maintain driveline balance.

Remove the front driveshaft. For additional information, REFER to DRIVESHAFT .
Remove and discard the nut.
- Use the special tool to prevent the flange from turning.
Fig 2: Removing Nut
Courtesy of FORD MOTOR CO.
Using a suitable 2- or 3-jaw puller, remove the flange.

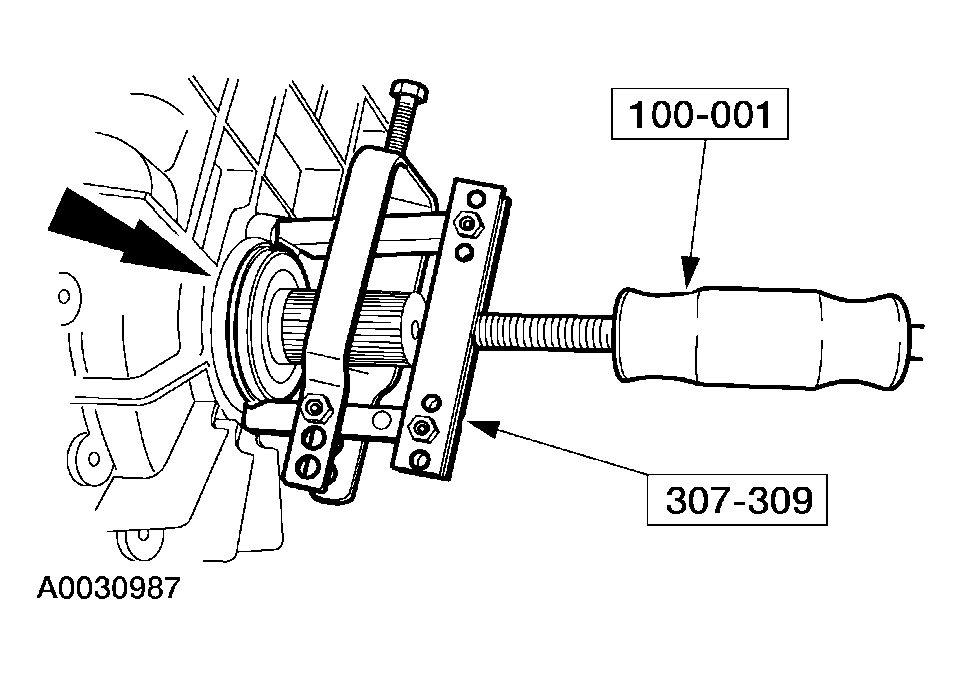

Fig 3: Removing Flange
Courtesy of FORD MOTOR CO.
Using the special tools, remove the front output seal.

Fig 4: Removing Front Output Seal
Courtesy of FORD MOTOR CO.
Inspect the flange seal surface for wear and damage. Discard the flange, if necessary.
