Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the mode select switch (MSS) knob.

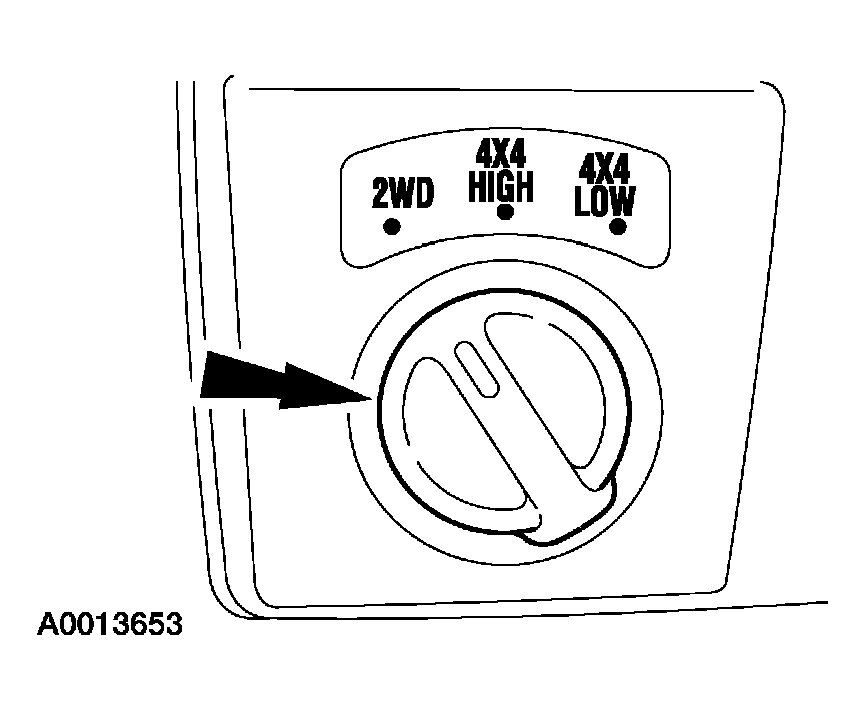

    Fig 1: Removing Mode Select Switch Knob
    G03909614Courtesy of FORD MOTOR CO.
  2. Remove the MSS plate.

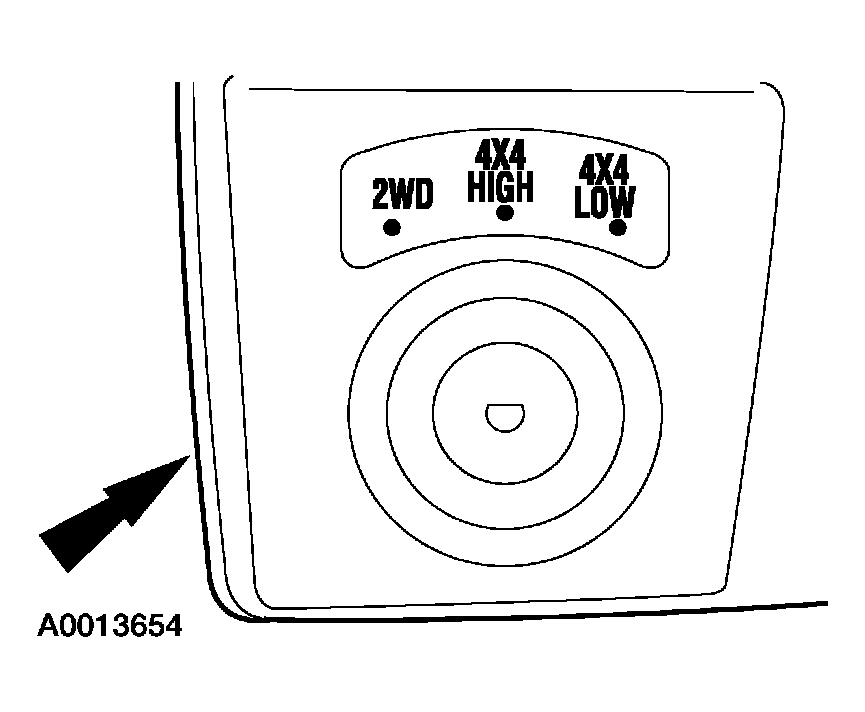

    Fig 2: Removing Mode Select Switch Plate
    G03909615Courtesy of FORD MOTOR CO.
  3. Disconnect the wiring harness connector.

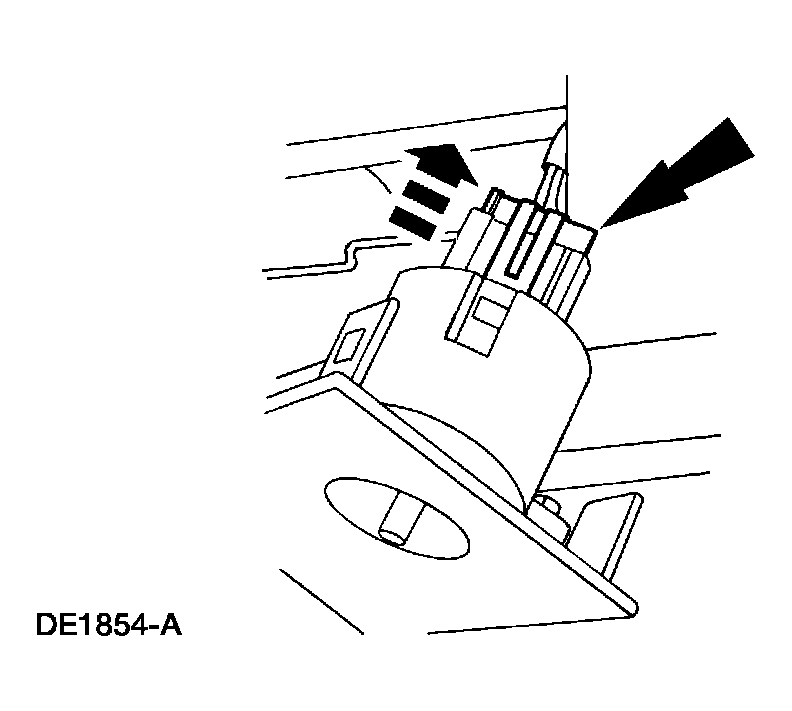

    Fig 3: Disconnecting Wiring Harness Connector
    G03909616Courtesy of FORD MOTOR CO.
  4. Remove the two screws and the MSS.

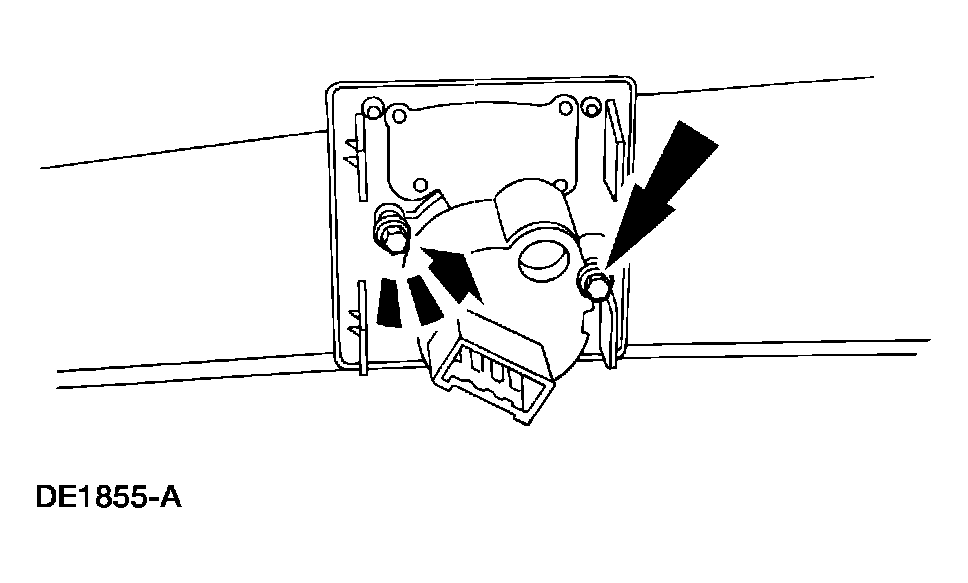

    Fig 4: Removing Mode Select Switch
    G03909617Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
