Park System: Installation

All vehicles

Using petroleum jelly to hold the bearing or bushing in place, install the output shaft bearing for slip yoke models and the bushing for fixed yoke models.

Fig 1: Installing Output Shaft Bearing For Slip Yoke Models And Bushing For Fixed Yoke Models
Courtesy of FORD MOTOR CO.

CAUTION: Be careful when installing the output shaft not to damage the seals.

Fig 2: Installing Output Shaft And Park Gear Assembly

Courtesy of FORD MOTOR CO.

If the output shaft was removed, install the output shaft and park gear assembly.
Install the park pawl shaft.
1. Install the park pawl shaft.
2. Install the park pawl.
3. Install the park pawl return spring.

  Fig 3: Installing Park Pawl Shaft
  Courtesy of FORD MOTOR CO.

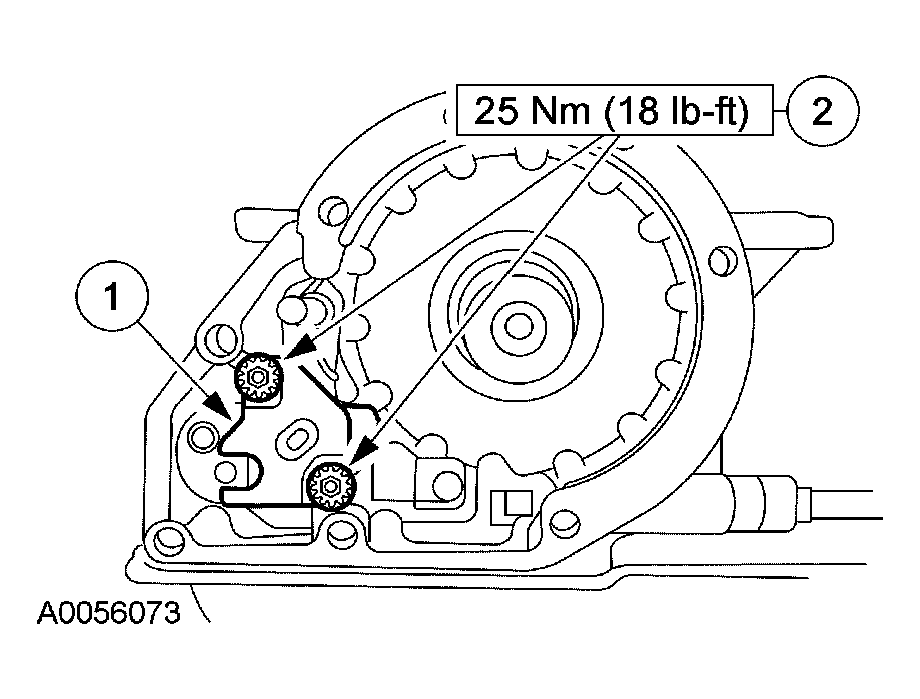

Install the parking rod guide plate.
1. Install the parking rod guide plate.
2. Install the bolts.

  Fig 4: Installing Parking Rod Guide Plate With Torque Specification
  Courtesy of FORD MOTOR CO.

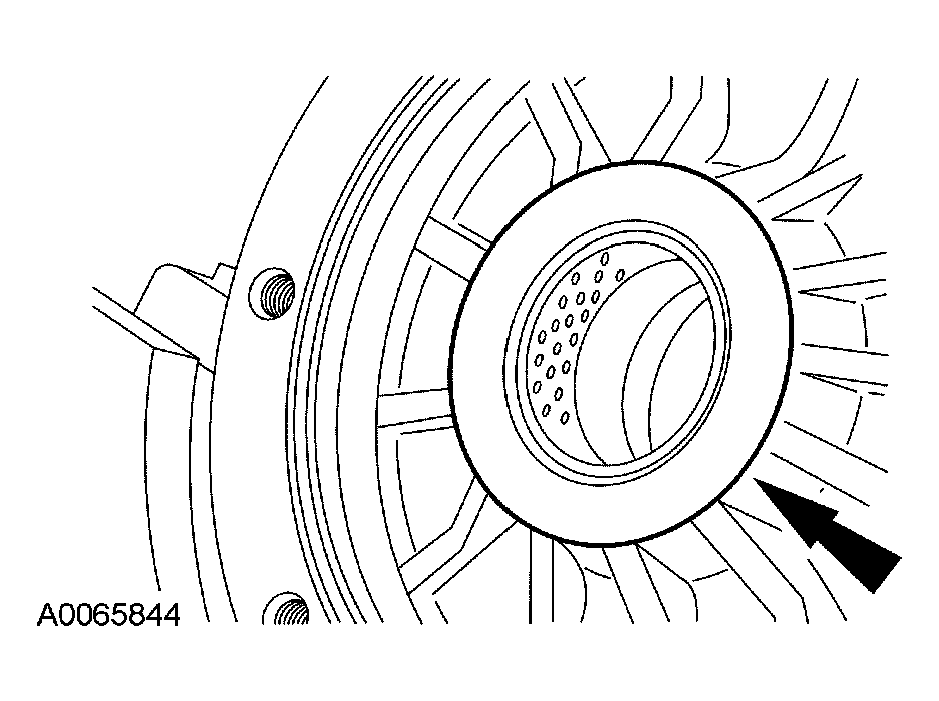

Install a new extension housing gasket.

Fig 5: Identifying Extension Housing Gasket
Courtesy of FORD MOTOR CO.

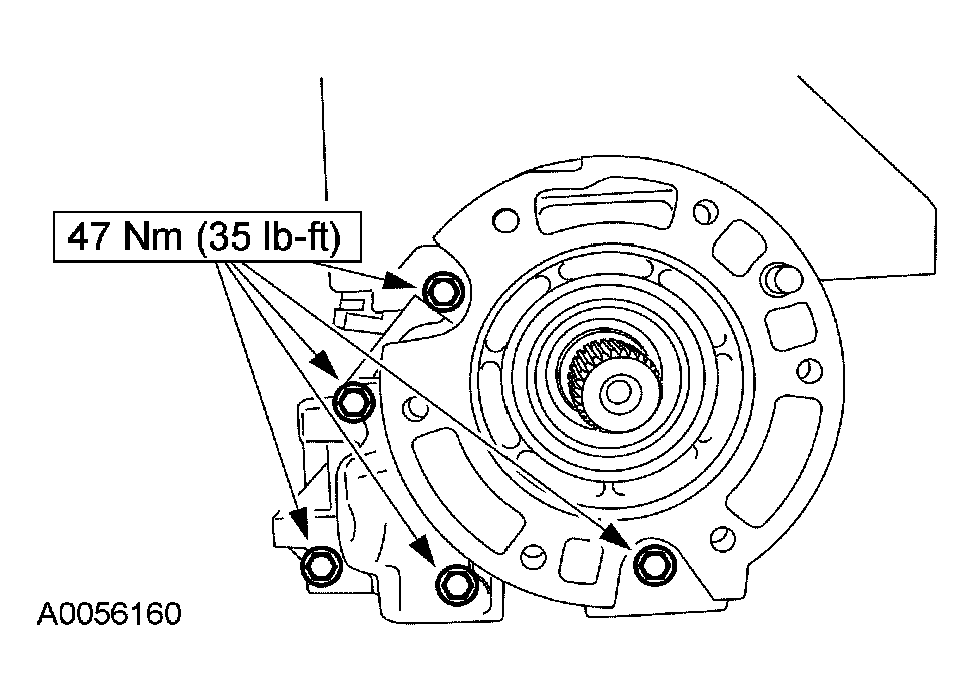

Install the extension housing and the nine bolts.

Fig 6: Extension Housing Bolts With Torque Specification
Courtesy of FORD MOTOR CO.

Vehicles equipped with a fixed yoke

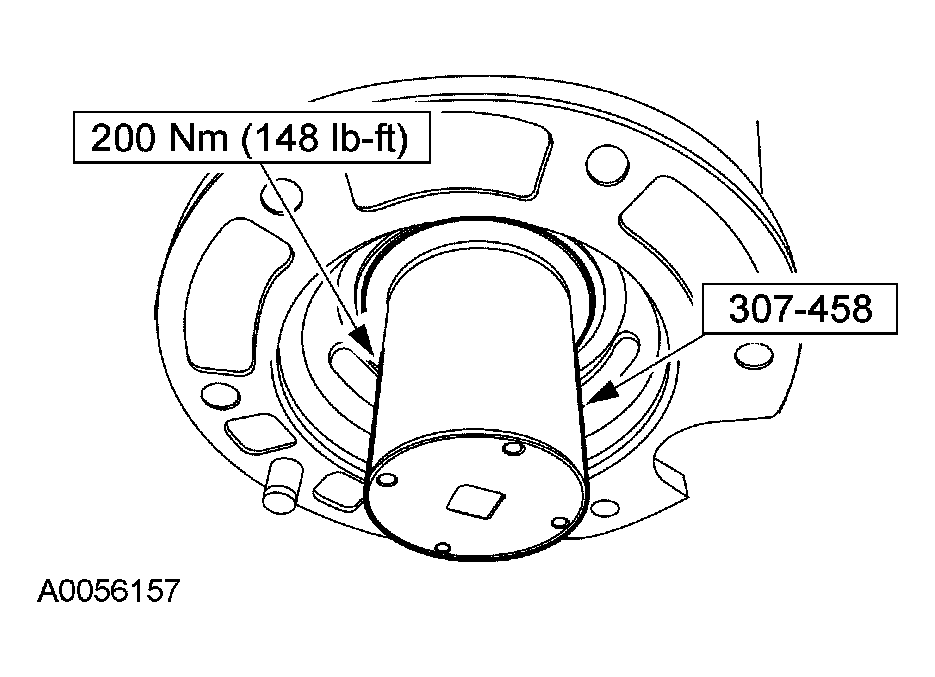

Using the special tool, install a new output shaft nut.

Fig 7: Installing A New Output Shaft Nut With Torque Specification
Courtesy of FORD MOTOR CO.

All vehicles

Connect the output shaft speed (OSS) sensor electrical connector.

Fig 8: Identifying Output Shaft Speed (OSS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

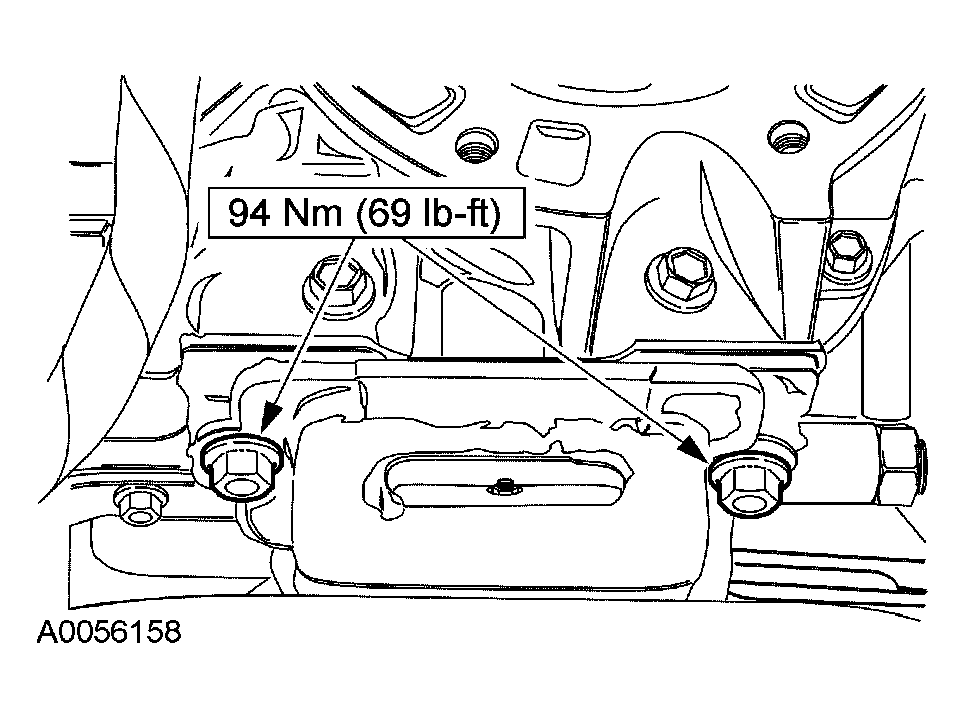

Lower the transmission onto the rear mount and install the bolts.

Fig 9: Lower Transmission Onto Rear Mount With Torque Specification
Courtesy of FORD MOTOR CO.

Vehicles equipped with a fixed yoke

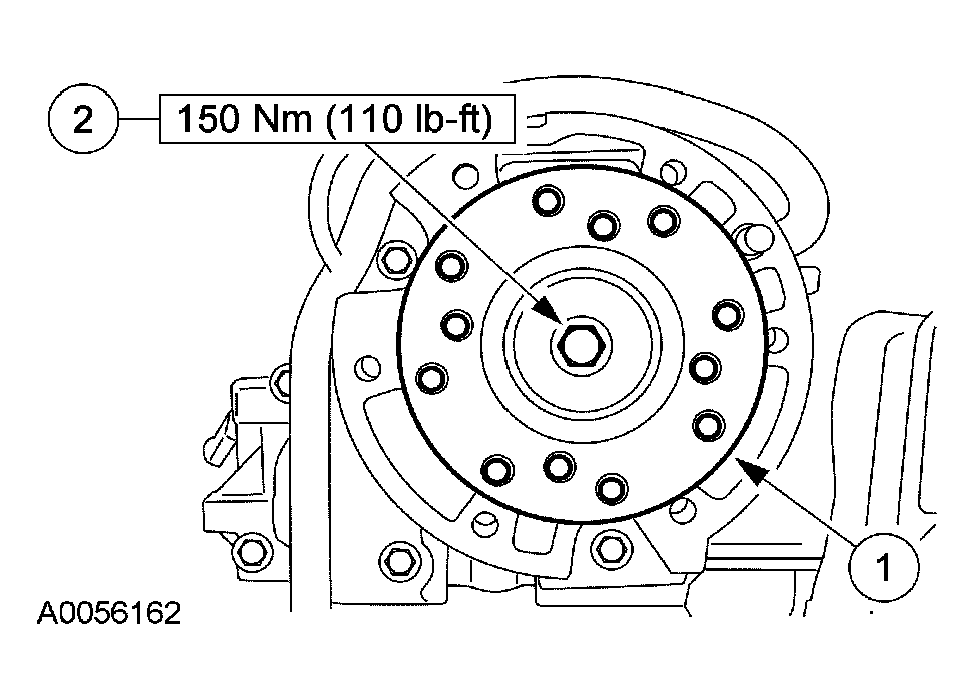

If equipped, install the output shaft flange.
1. Install the output shaft flange.
2. Install a new bolt.

  Fig 10: Installing Output Shaft Flange With Torque Specification
  Courtesy of FORD MOTOR CO.

4x2 vehicles

Install the rear driveshaft. For additional information, refer to DRIVESHAFT .

4x4 vehicles

Install the transfer case. For additional information, refer to TRANSFER CASE .

All vehicles

Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.

CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.

With the vehicle in NEUTRAL, engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24 liter (0.5 pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
