Forward Clutch Assembly: Disassembly

NOTE: Soak all friction clutch plates in clean automatic transmission fluid.

Remove and discard the two seals and remove the No. 7 thrust washer.

Fig 1: Removing Two Seals And Remove Thrust Washer
Courtesy of FORD MOTOR CO.
Remove the No. 8 forward clutch thrust bearing.

Fig 2: Removing Forward Clutch Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the snap ring and the forward clutch plates.

Fig 3: Removing Snap Ring And Forward Clutch Plates
Courtesy of FORD MOTOR CO.
Using the special tools, remove the snap ring.

Fig 4: Removing Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: Note the orientation of the return spring.

Fig 5: Removing Forward Clutch Balance Piston Return Spring

Courtesy of FORD MOTOR CO.

Remove the forward clutch balance piston and the return spring. Discard the forward clutch balance piston.
Remove and discard the forward clutch piston.

Fig 6: Removing Forward Clutch Piston
Courtesy of FORD MOTOR CO.
Clean and inspect all components for damage.

NOTE: The later production forward clutch cylinder can be used in place of the early production cylinders. The later production cylinder will accept the early production clutch plates.

Inspect the forward clutch cylinder.
1. The early production forward clutch cylinder has small direct clutch feed holes and a smaller bore clearance.
2. The later production forward clutch cylinder has larger direct clutch feed holes and a larger bore clearance.

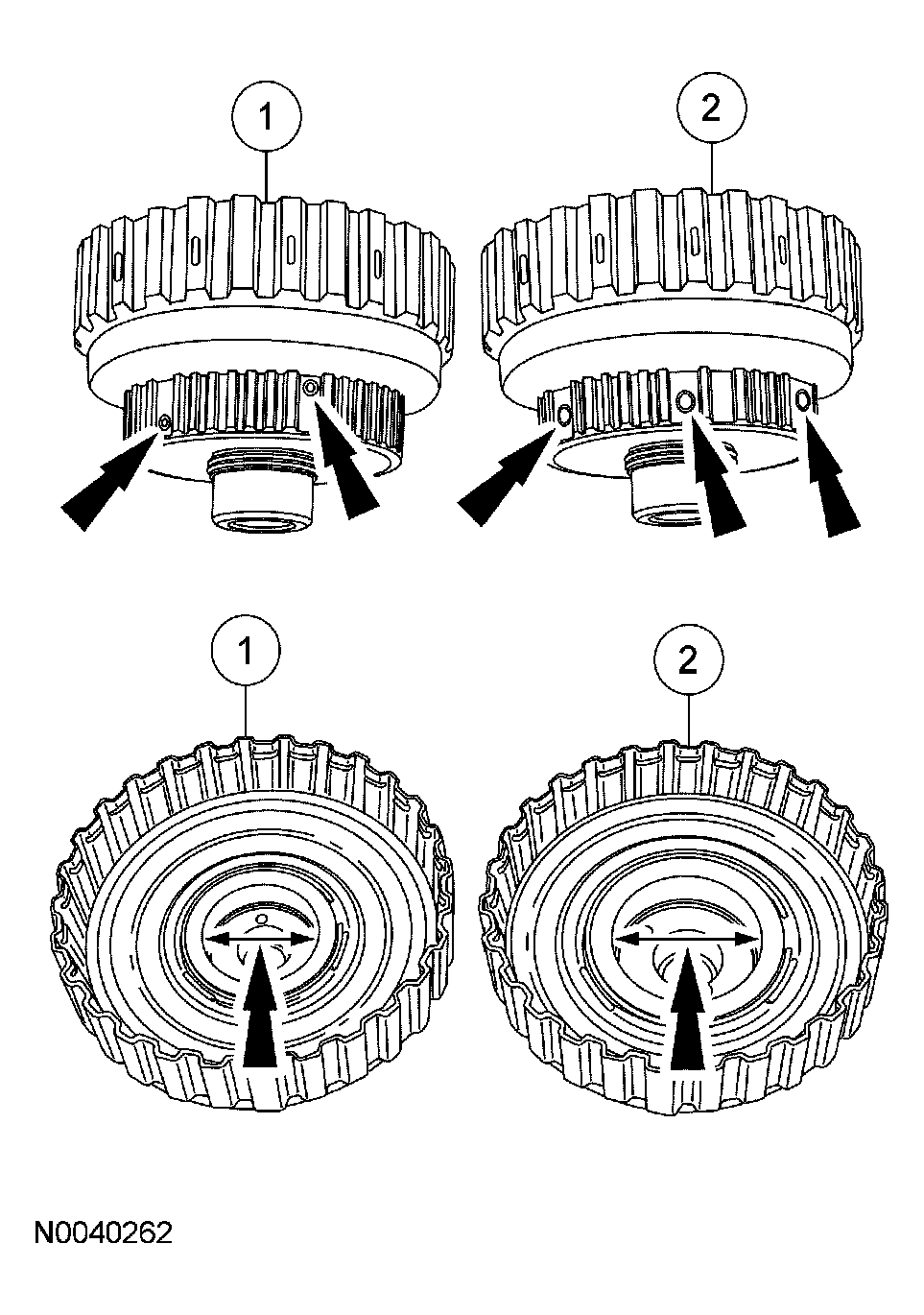

  Fig 7: Inspecting Forward Clutch Cylinder
