Center Support: Assembly

  1. Follow the disassembly procedure in reverse order.
    • Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.
    • Install new seals.
  2. After the center support is completely assembled, apply 231 kPa (20 psi) of air to the port and verify the function of the piston.

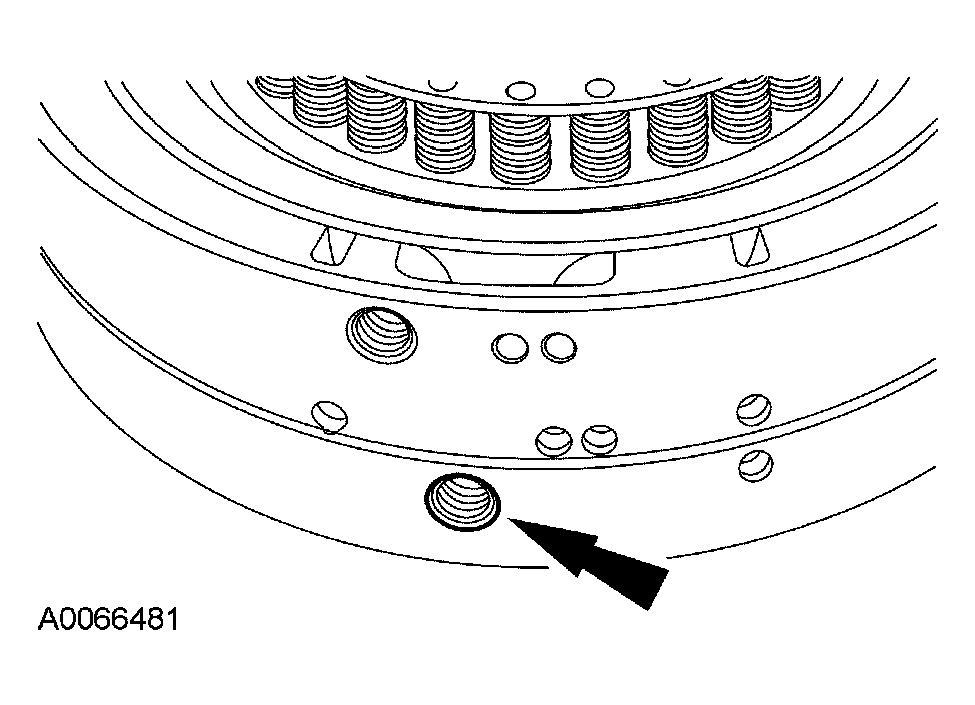

    Fig 1: Applying Air To Port And Verify Function Of Piston
    G03889428Courtesy of FORD MOTOR CO.
