Disassembly and Assembly

    NOTE: Mark the connecting rod and piston to make sure correct orientation on reassembly.

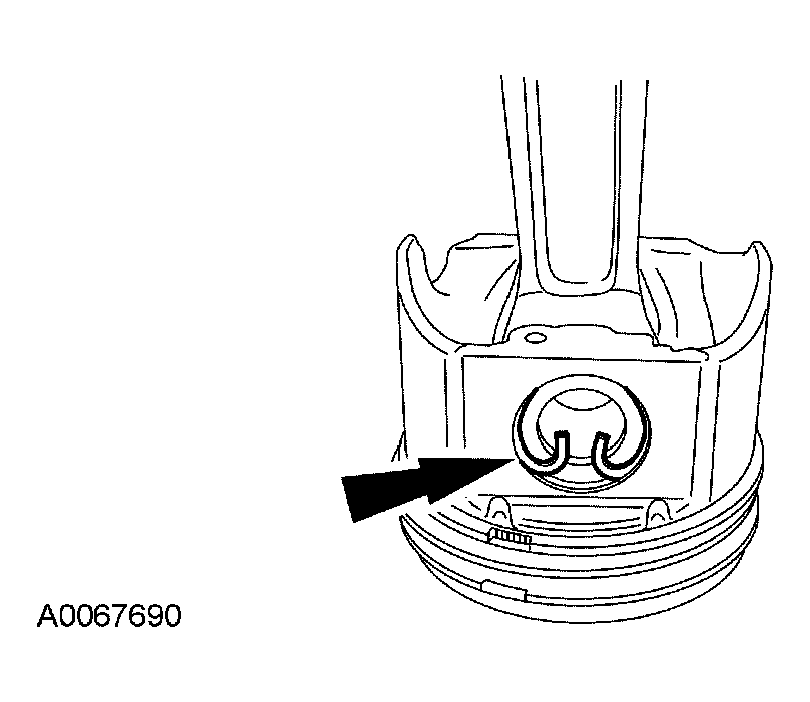

    Fig 1: Removing Piston Pin Retainers
    G03887617Courtesy of FORD MOTOR CO.
  1. Remove the piston pin retainers.
    2. NOTE: The piston pins are a floating type piston pin and should not require a press to remove or install them.

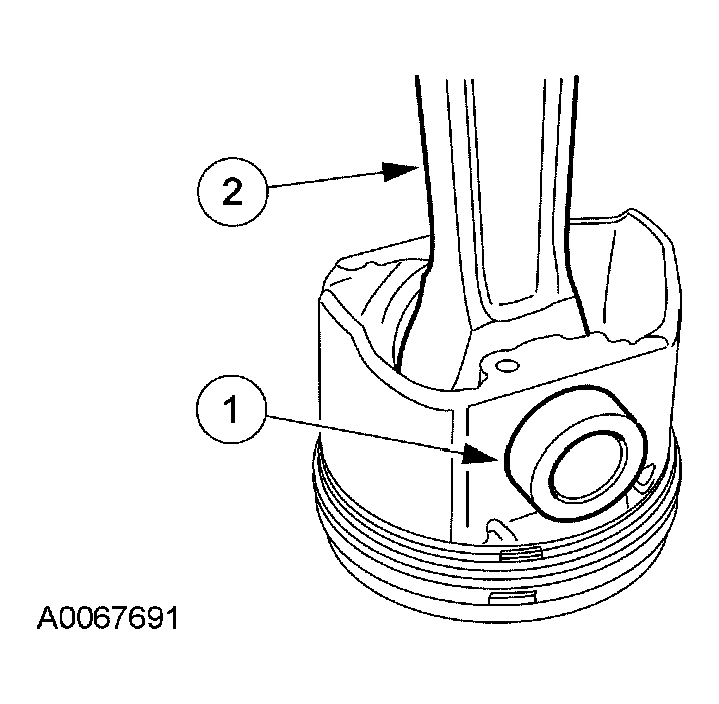

    Fig 2: Removing Connecting Rod
    G03887618Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod.
    1. Remove the piston pin.
    2. Remove the connecting rod.
  3. To assemble, reverse the disassembly procedure.
