Intermediate Servo: Installation

    NOTE: Lubricate the servo seal with clean automatic transmission fluid.
  1. Install the intermediate band servo.
  2. Install the main control valve body.

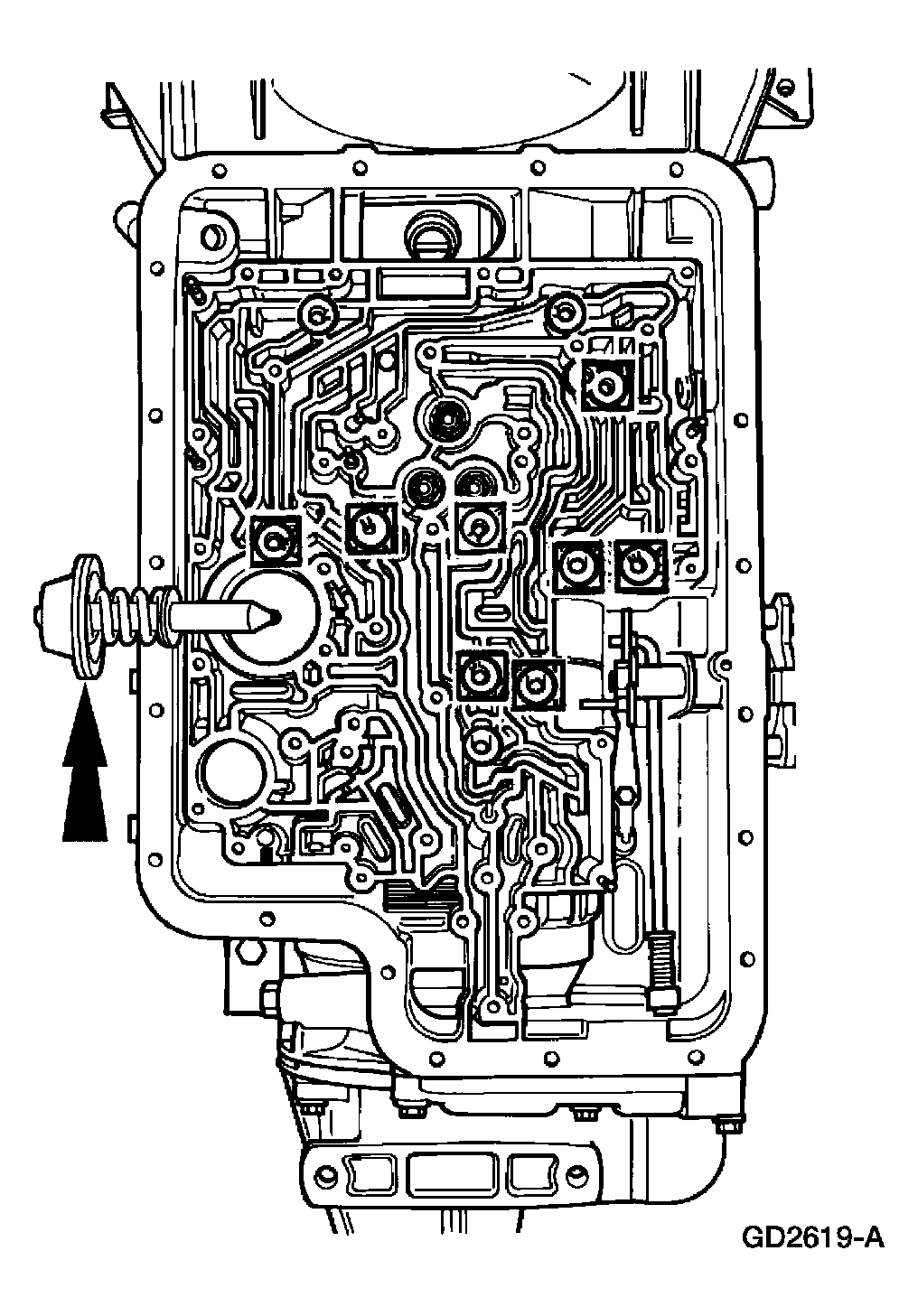

    Fig 1: Locating Main Control Valve Body
    G03908355Courtesy of FORD MOTOR CO.
