Main Control Valve Body - Accumulator Body Check: Assembly

Install the control valves and springs.

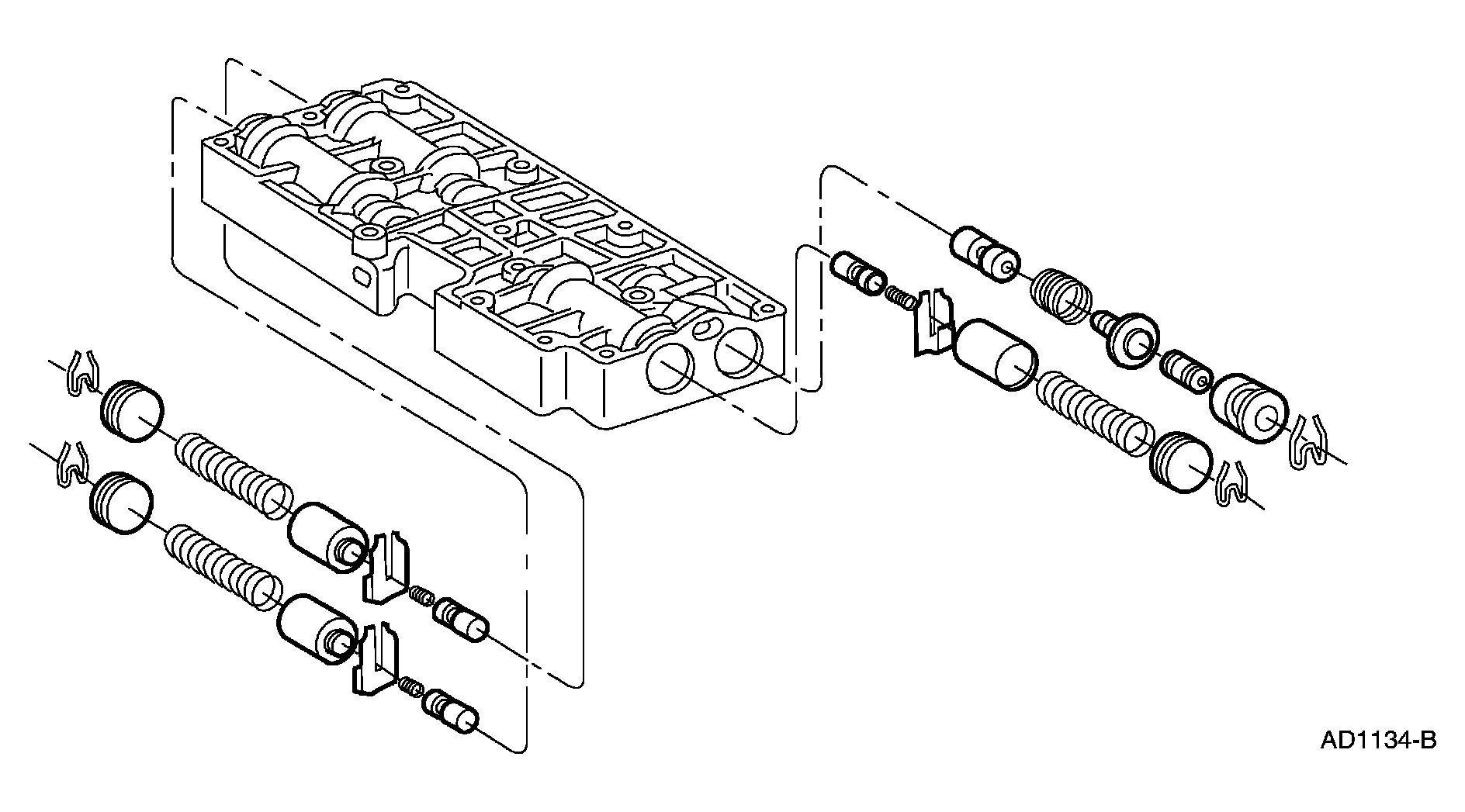

Fig 1: Installing Control Valves And Springs

G03908467

Courtesy of FORD MOTOR CO.
