Automatic Transmission - 4R100
>>
Description And Operation
>>
Disassembled Views
Disassembled Views

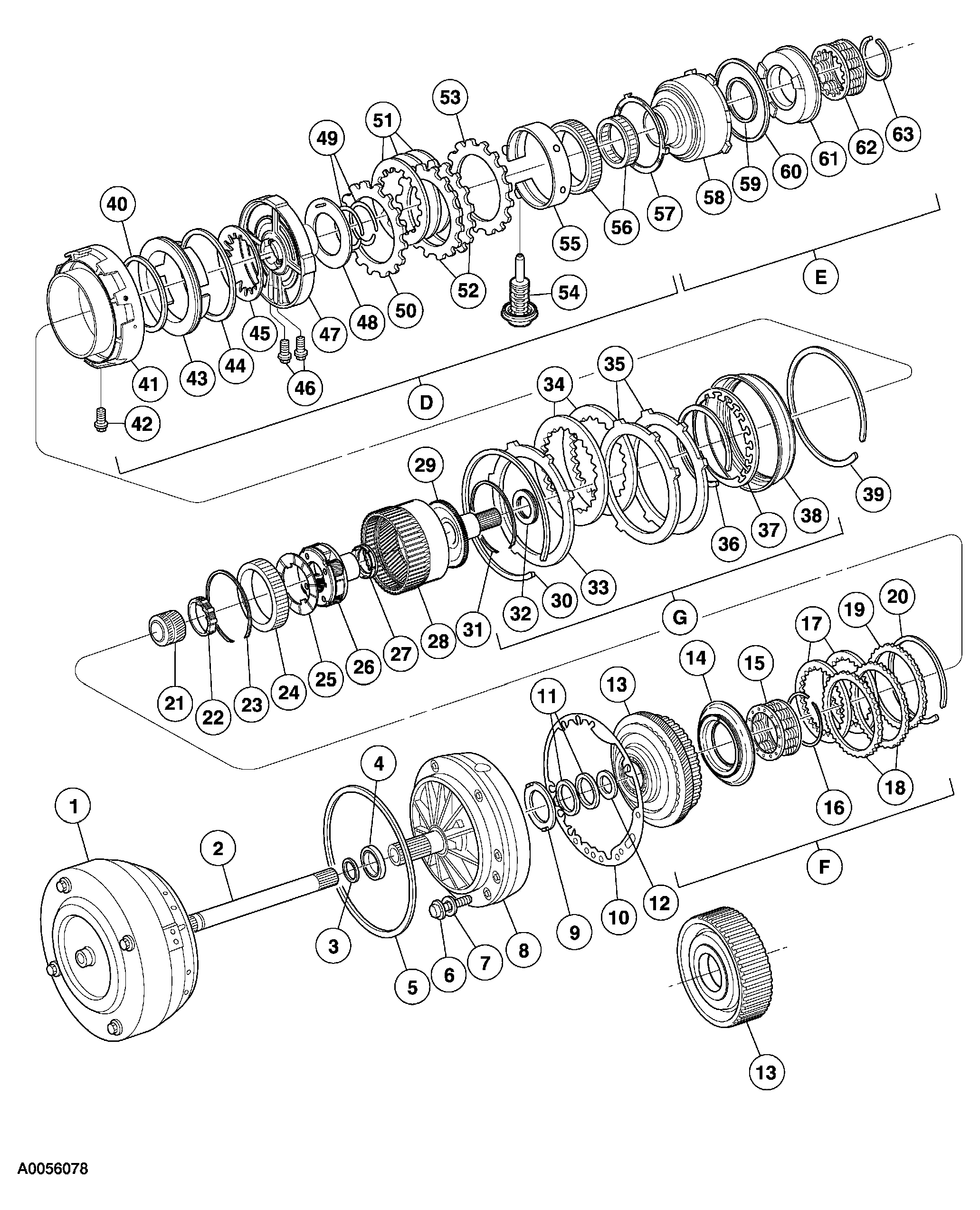

Fig 1: Exploded View Of Transmission (1 Of 7)
Courtesy of FORD MOTOR CO.

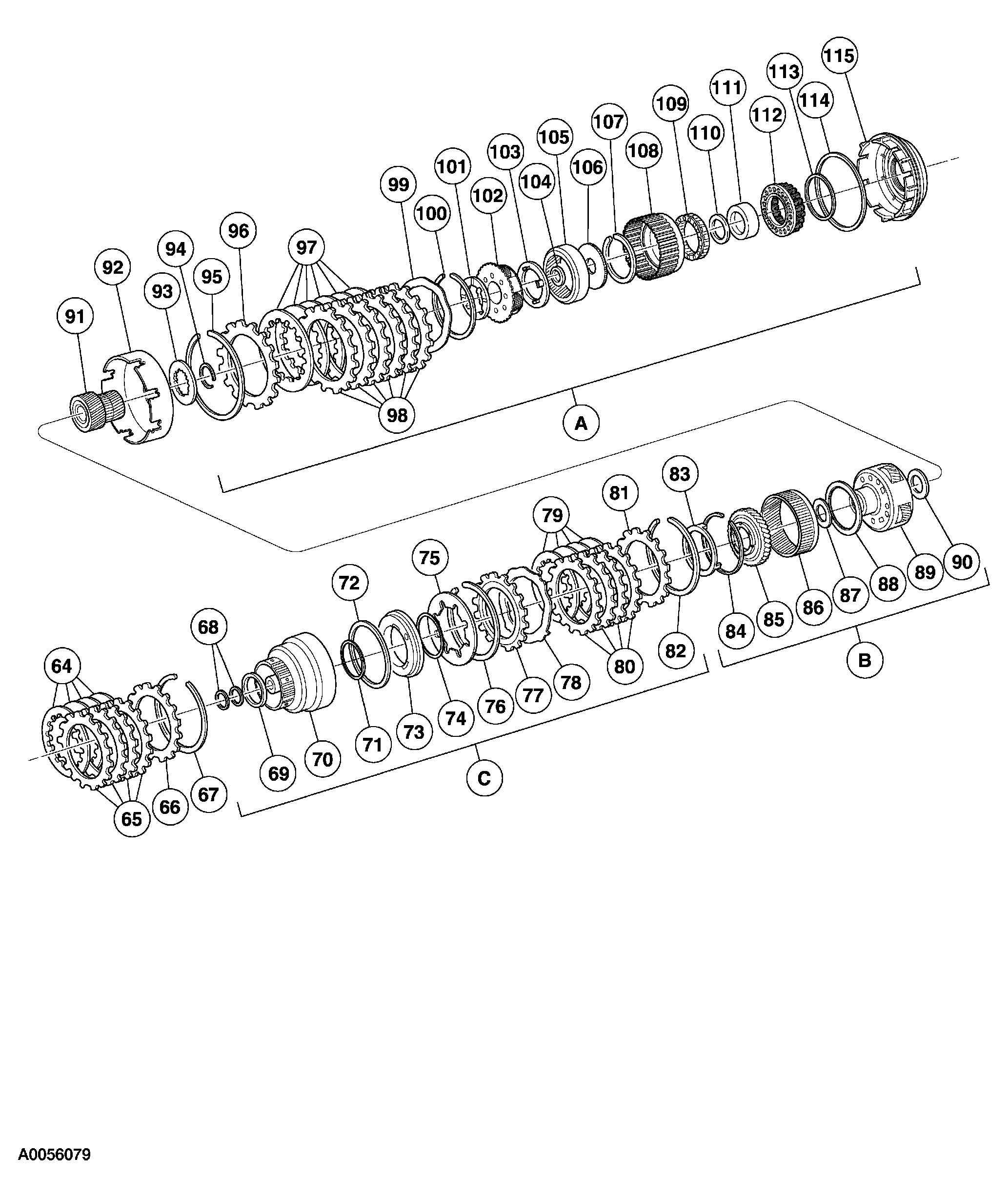

Fig 2: Exploded View Of Transmission (2 Of 7)
Courtesy of FORD MOTOR CO.

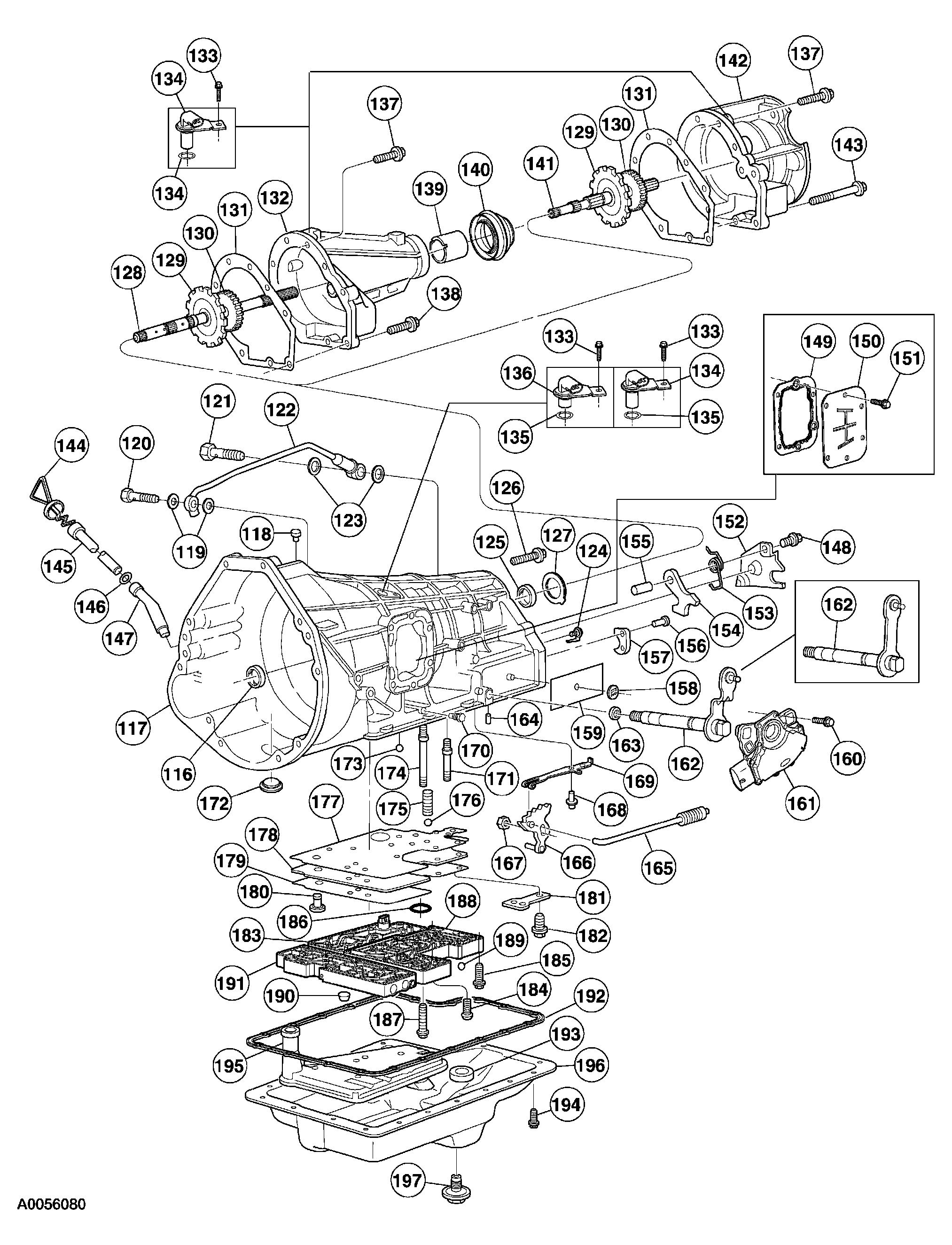

Fig 3: Exploded View Of Transmission (3 Of 7)
Courtesy of FORD MOTOR CO.
Fig 4: Exploded View Of Transmission (4 Of 7)
Courtesy of FORD MOTOR CO.
Fig 5: Exploded View Of Transmission (5 Of 7)
Courtesy of FORD MOTOR CO.
Fig 6: Exploded View Of Transmission (6 Of 7)
Courtesy of FORD MOTOR CO.
Fig 7: Exploded View Of Transmission (7 Of 7)
Courtesy of FORD MOTOR CO.

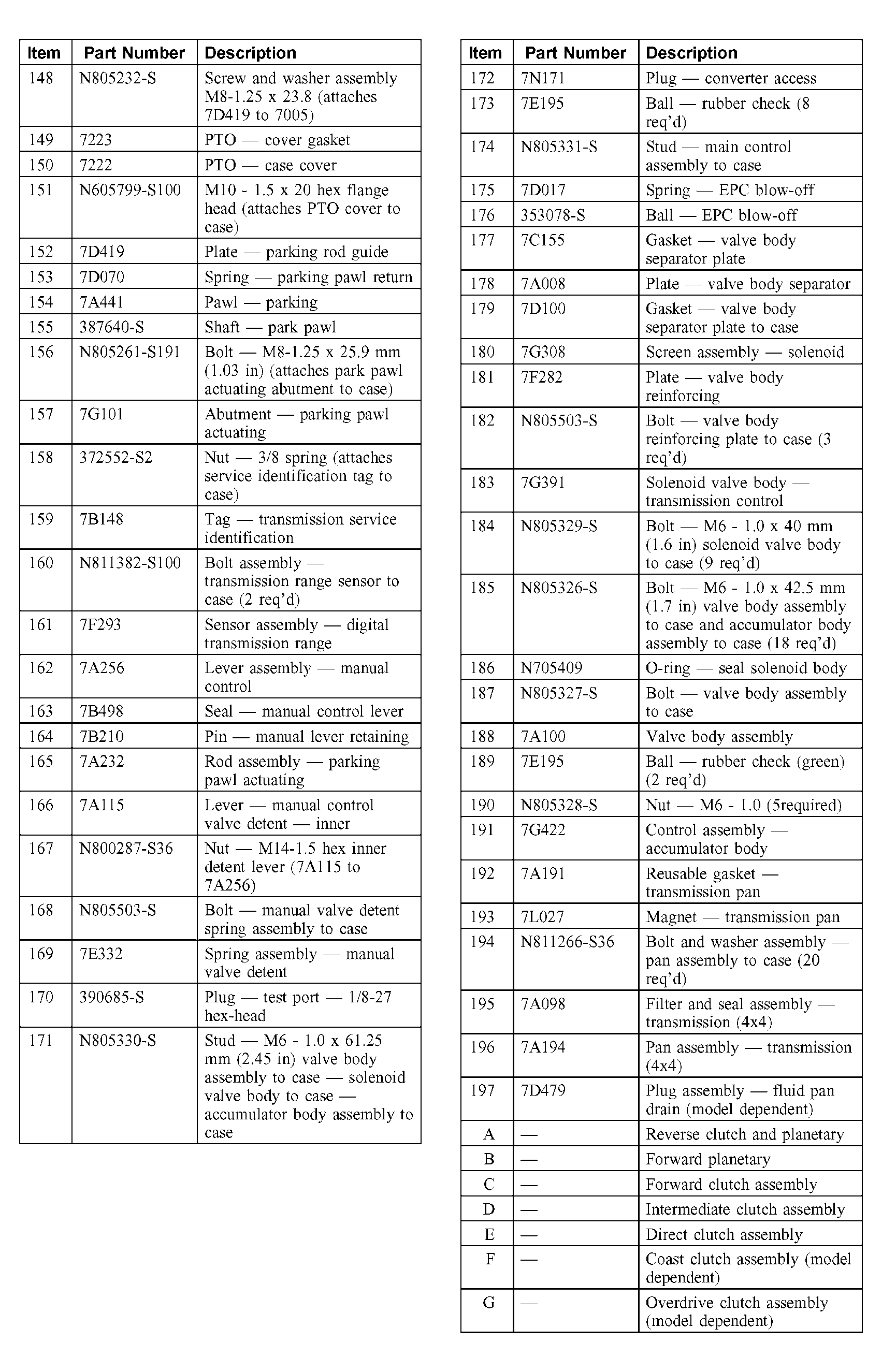

Courtesy of FORD MOTOR CO.

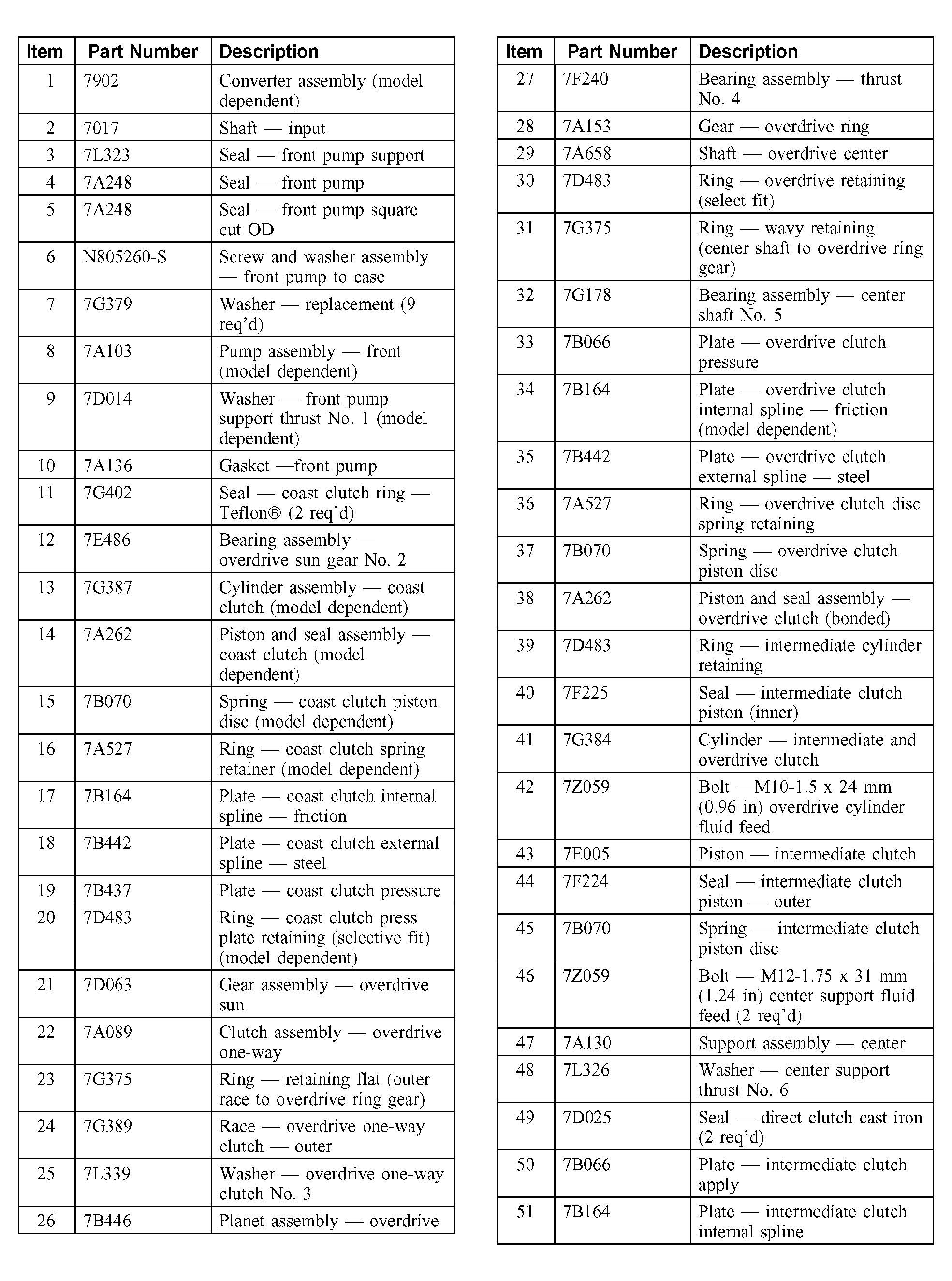

Courtesy of FORD MOTOR CO.

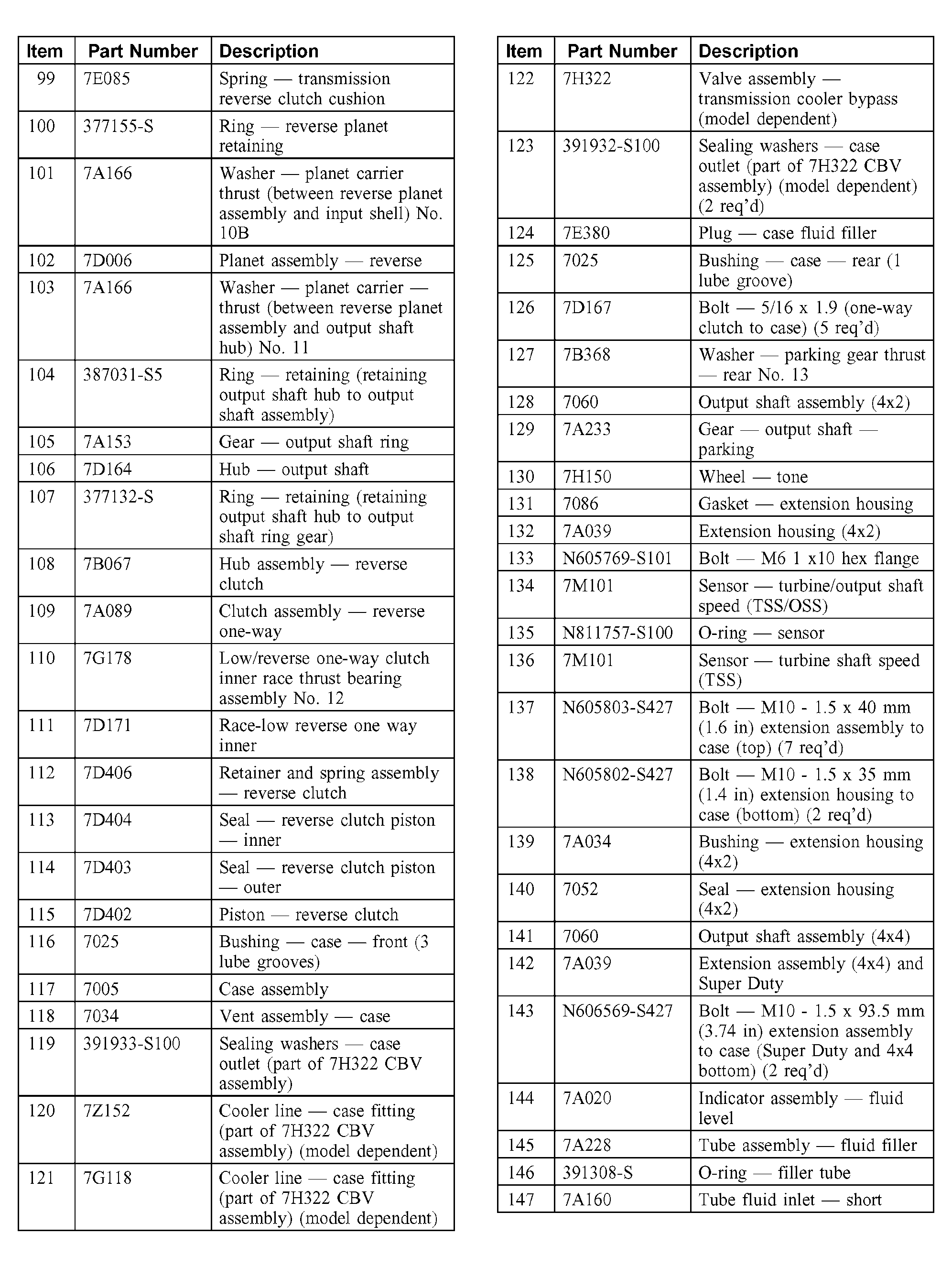

Courtesy of FORD MOTOR CO.

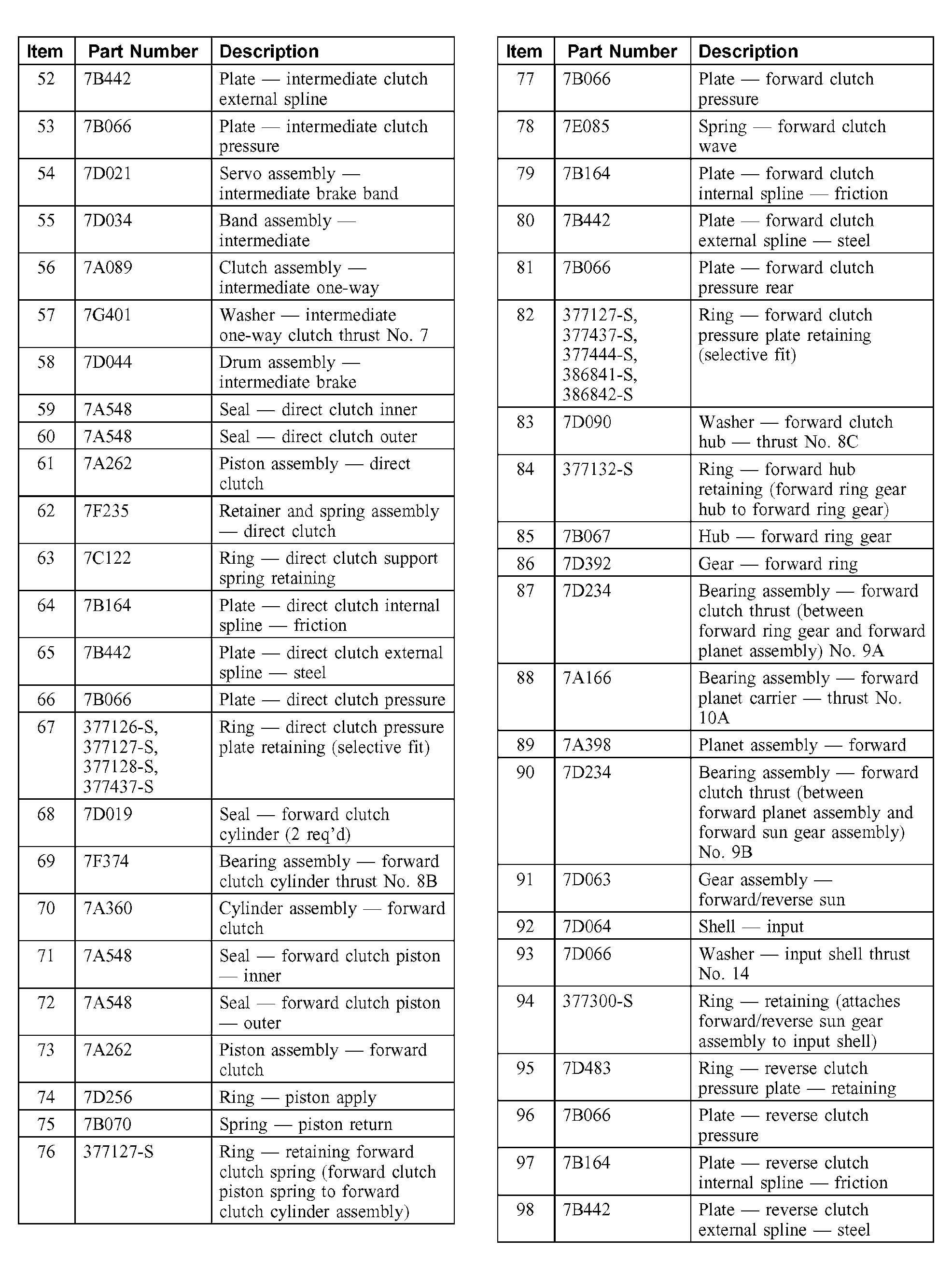

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
