Toe Adjustment - 4x2

Start the engine and center the steering wheel.

Fig 1: Centering Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the straight-forward position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings. Follow the manufacturer's instructions.
Loosen the tie-rod adjuster sleeve nuts.
- Clean and lubricate the steering linkage and tie-rod end threads.
Fig 2: Loosening Tie-Rod Adjuster Sleeve Nuts
Courtesy of FORD MOTOR CO.
Rotate the tie-rod adjusting sleeves to obtain the correct toe setting.

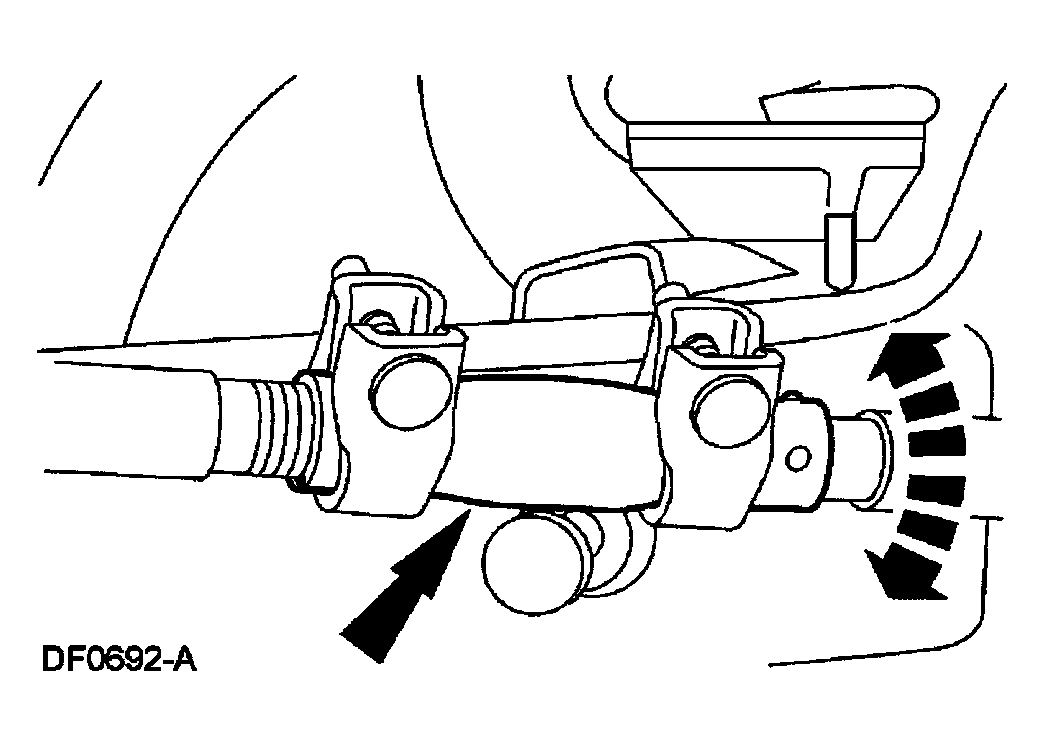

Fig 3: Rotating Tie-Rod Adjusting Sleeves
Courtesy of FORD MOTOR CO.
Position the tie-rod adjusting sleeves as follows:
- Position the RH adjusting sleeve clamp opening downward within 45 degrees of vertical.
- Tighten the nuts.
- Position the LH adjusting sleeve clamp opening upward within 45 degrees of vertical.

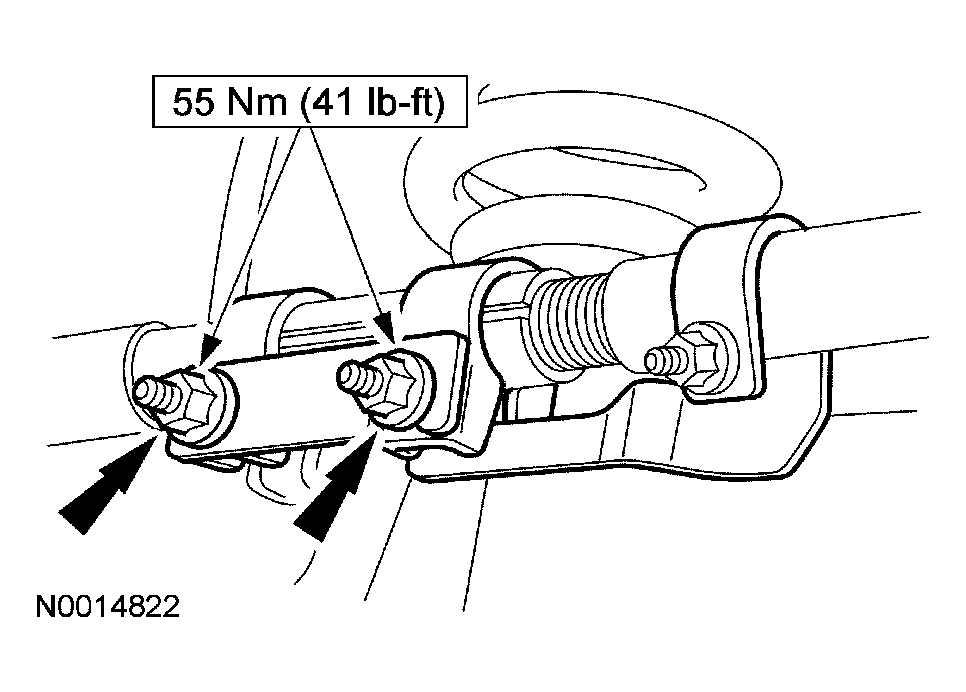

Fig 4: Positioning Tie-Rod Adjusting Sleeves With Torque Specifications
Courtesy of FORD MOTOR CO.
Recheck the toe settings. For additional information, refer to SPECIFICATIONS in this article.
If necessary, adjust the steering wheel angle.
- Turn the steering wheel to position the wheels in the straight-ahead position.
- Loosen the nuts on the drag link adjuster.
- Rotate the adjuster sleeve to correct the steering wheel angle.
- Tighten the nuts.
Fig 5: Adjusting Steering Wheel Angle With Torque Specifications
Courtesy of FORD MOTOR CO.
