Passenger Air Bag Module: Installation

Position the passenger air bag module into the instrument panel. Install the passenger air bag module retaining nuts and bolts.

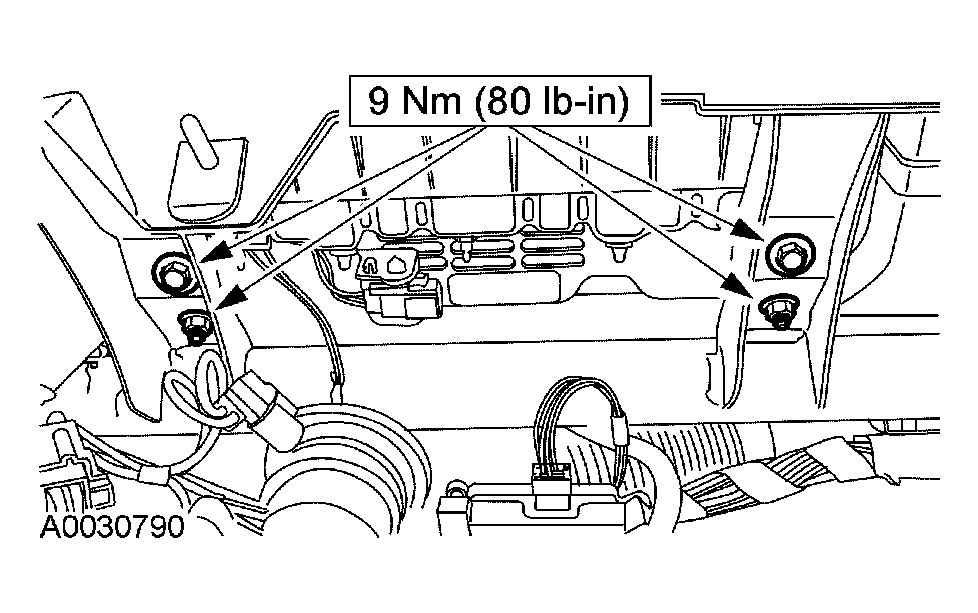

Fig 1: Passenger Air Bag Module Retaining Nuts And Bolts With Torque Specification
Courtesy of FORD MOTOR CO.
Install the passenger air bag module door.
- Align the passenger air bag module door and push in seating the retaining clips.
  - Place six new offset fasteners onto the deployment door.

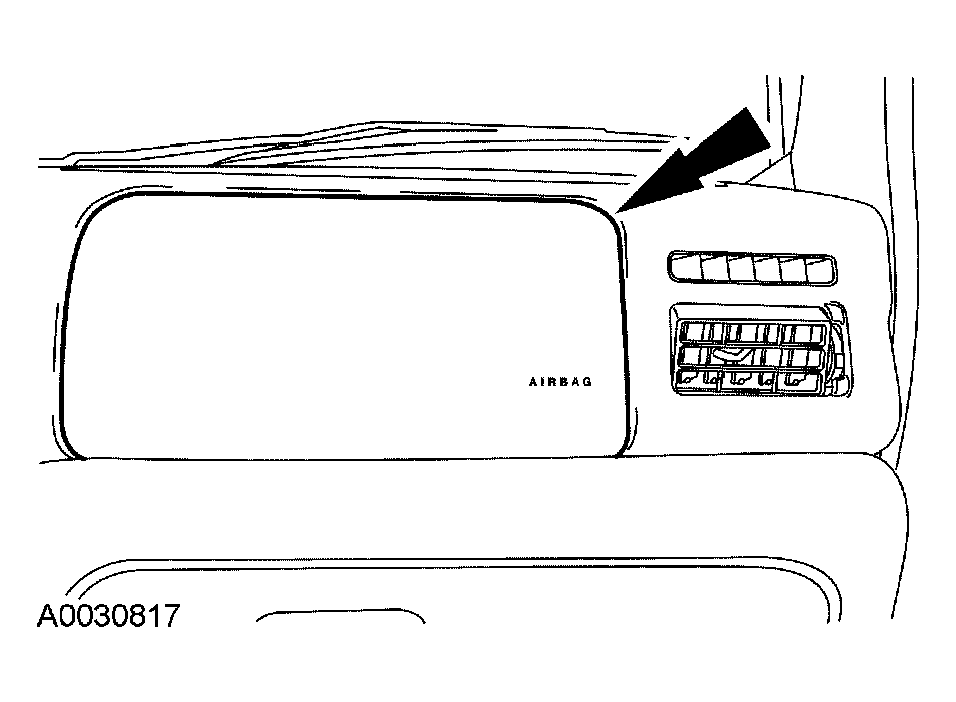

Fig 2: Installing Passenger Air Bag Module Door
Courtesy of FORD MOTOR CO.
Connect the passenger air bag module electrical connector.

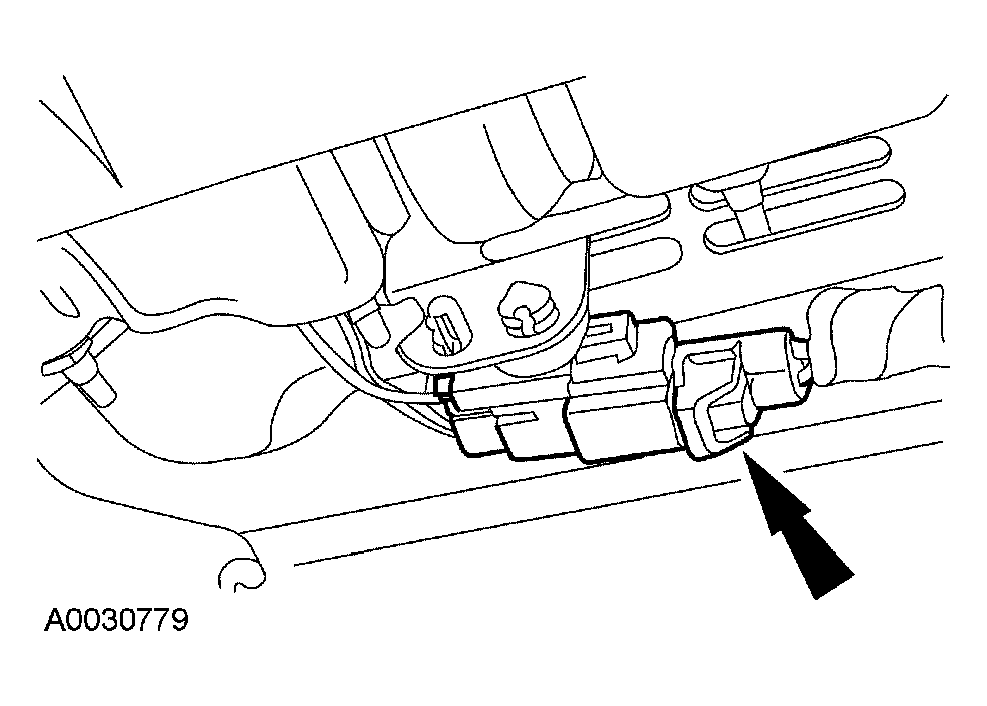

Fig 3: Locating Passenger Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.
Close the glove compartment.
Repower the system. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this article.
