Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Install the gears with marks pointing outward.
    Fig 1: Identifying Inner And Outer Oil Pump Drive Rotors With Alignment Marks
    G03887281Courtesy of FORD MOTOR CO.
  1. Lubricate the inner gear with lithium assembly grease and install onto the crankshaft. Lubricate the outer gear with lithium assembly grease and mesh with the inner gear rotor in the oil pump housing. Wipe off the excess assembly grease.
    2. NOTE: Install a new O-ring seal.

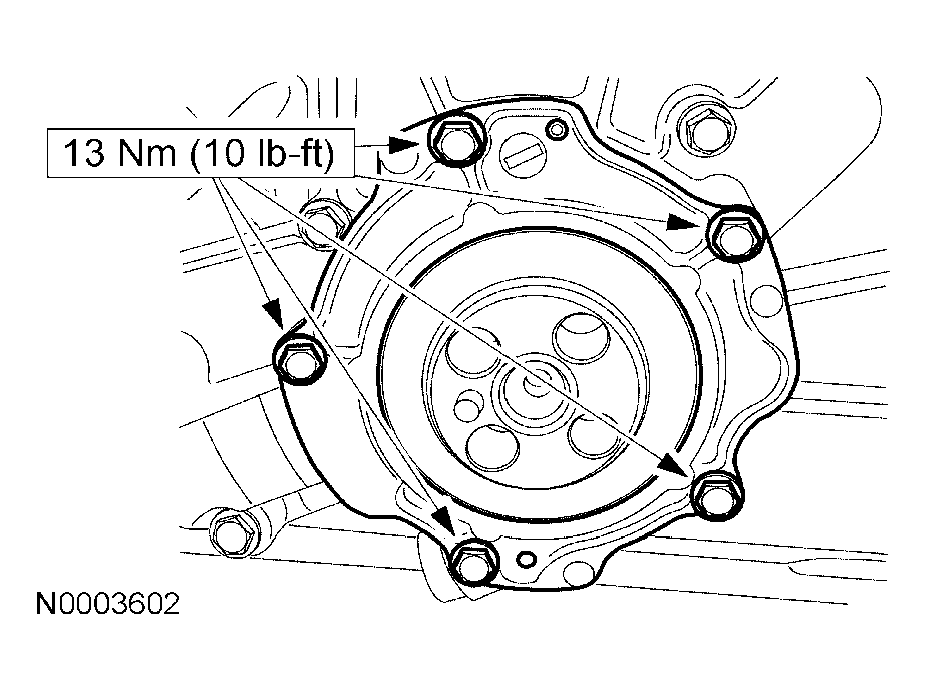

    Fig 2: Installing Gerotor Cover Bolts With Torque Specifications
    G03907146Courtesy of FORD MOTOR CO.
  2. Install the gerotor cover and bolts.
  3. Install the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT SEAL  in this article.
