Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil pump inlet strainer.

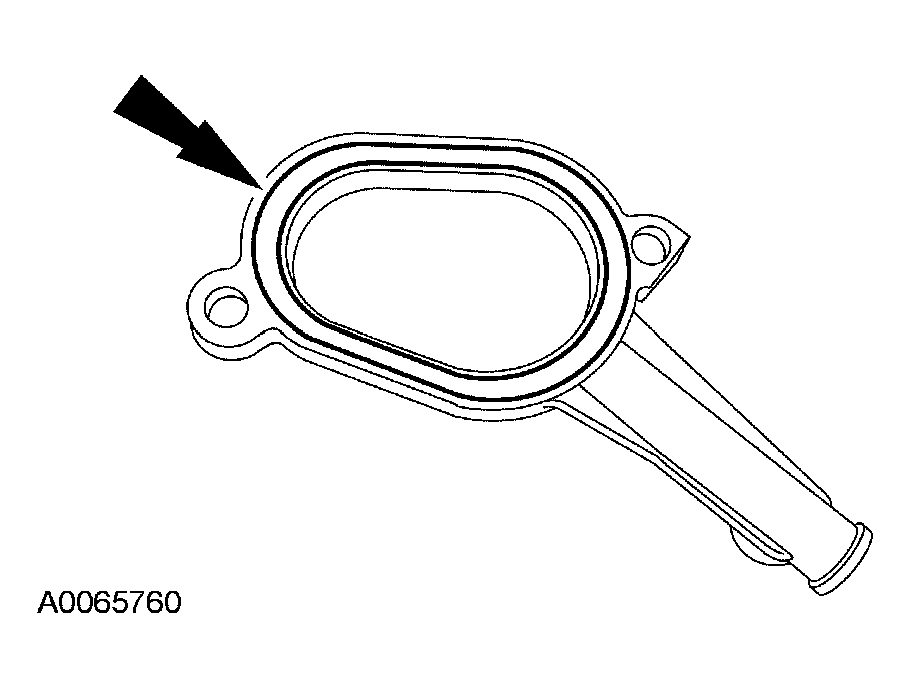

Fig 1: Identifying Oil Pump Inlet Strainer
Courtesy of FORD MOTOR CO.
Install the gasket in the oil cooler assembly cover.

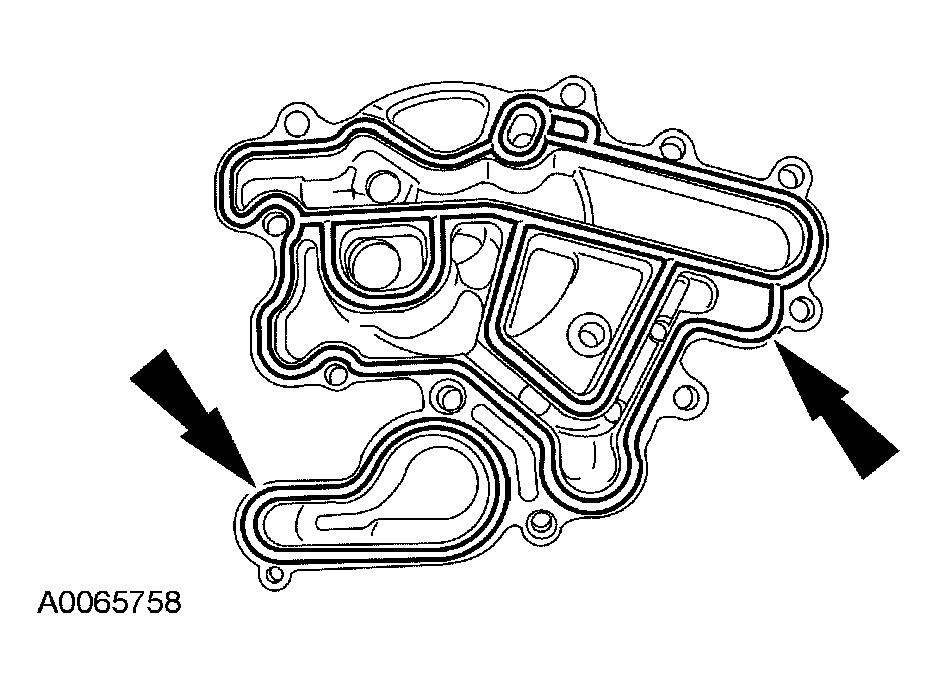

Fig 2: Installing Gasket In Oil Cooler Assembly Cover
Courtesy of FORD MOTOR CO.

CAUTION: In the event of a catastrophic engine failure, always install a new oil cooler cover assembly (with oil cooler). Foreign material cannot be removed from the oil cooler.

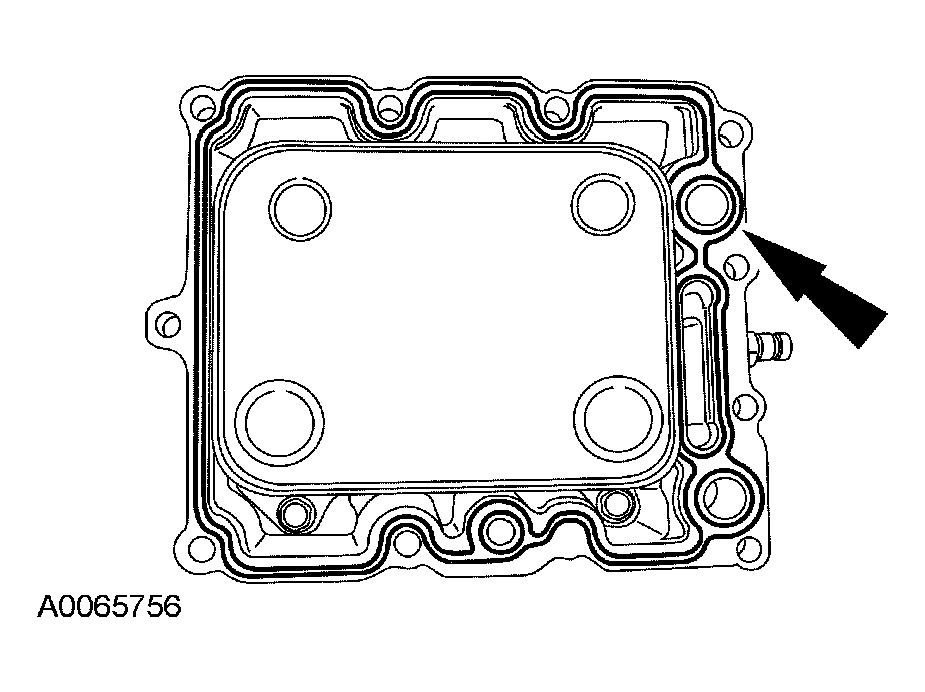

Fig 3: Installing Oil Cooler Assembly Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Install the oil cooler assembly and the bolts.
Install the gasket in the oil filter base.

Fig 4: Installing Gasket In Oil Filter Base
Courtesy of FORD MOTOR CO.

NOTE: The old oil cooler cover bolts or new self-tapping bolts must be used to cut the threads in the new oil cooler cover.

Fig 5: Installing Oil Filter Base Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Install the oil filter base and the bolts.
Install the seal on the EGR cooler coolant supply port cover.

Fig 6: Installing Seal On EGR Cooler Coolant Supply Port Cover
Courtesy of FORD MOTOR CO.
Install the EGR cooler coolant supply port cover and the bolts.

Fig 7: Installing EGR Cooler Coolant Supply Port Cover Bolts With Torque Specifications
Courtesy of FORD MOTOR CO.
Install the intake manifold. For additional information, refer to INTAKE MANIFOLD in this article.
