Removal and Installation

NOTE: Driver side shown, passenger side and rear door similar.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

NOTE: The left front door with power windows and power mirror is shown. The right front door with power windows is similar.

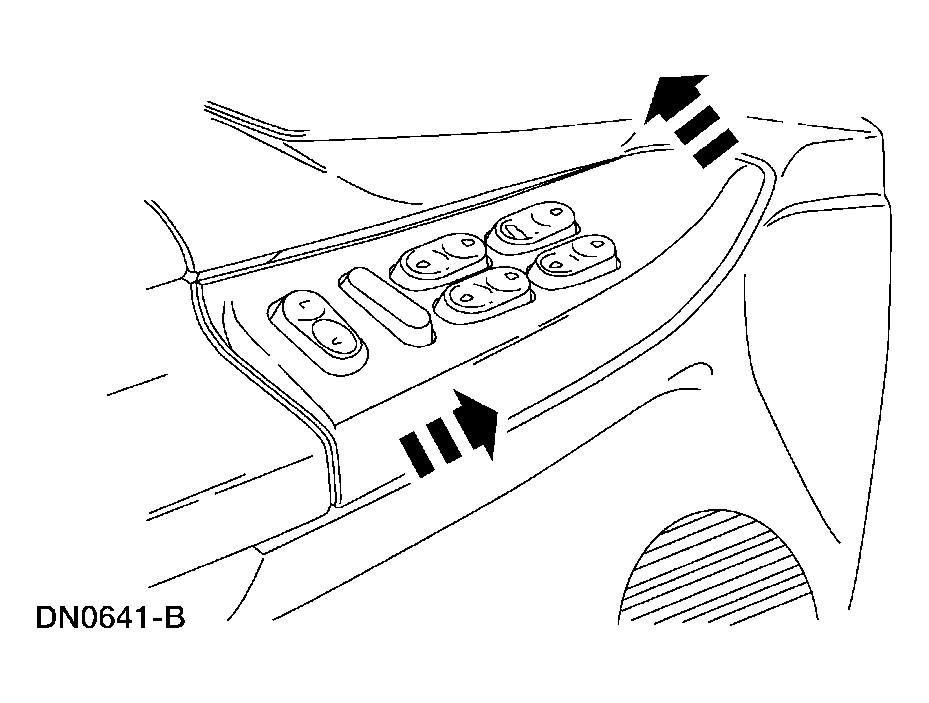

Fig 1: Removing Door Command Center From Door

Courtesy of FORD MOTOR CO.

Remove the door command center from the door.
Disconnect the electrical connectors.

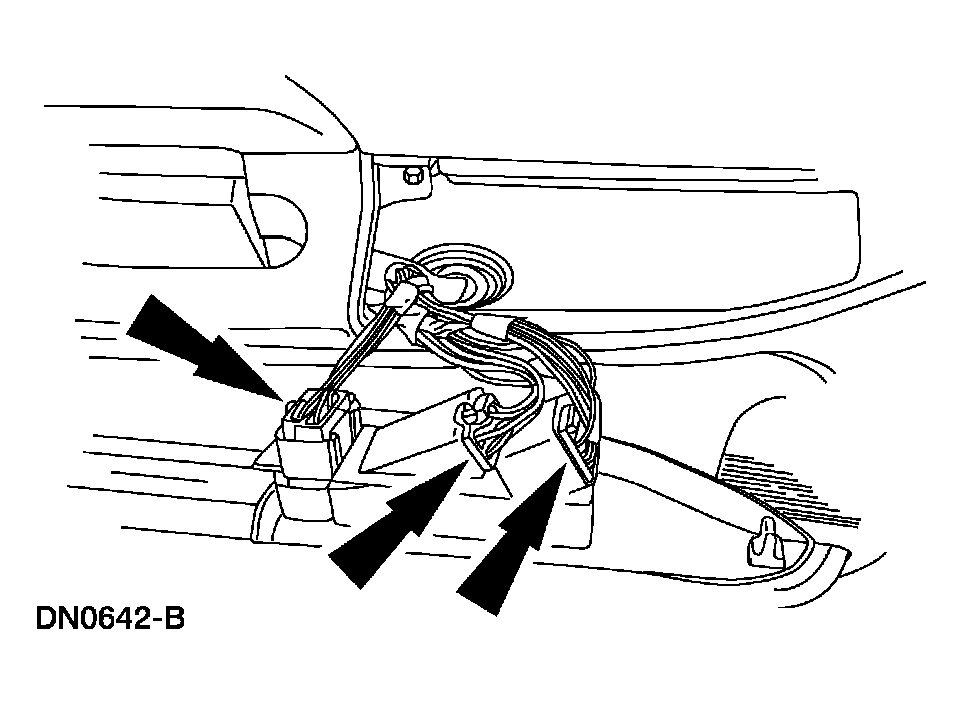

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the door command center from the vehicle.
Remove the retaining clips on the mirror switch and remove the switch.
To install, reverse the removal procedure.
