Generator Connector End View (C102C)

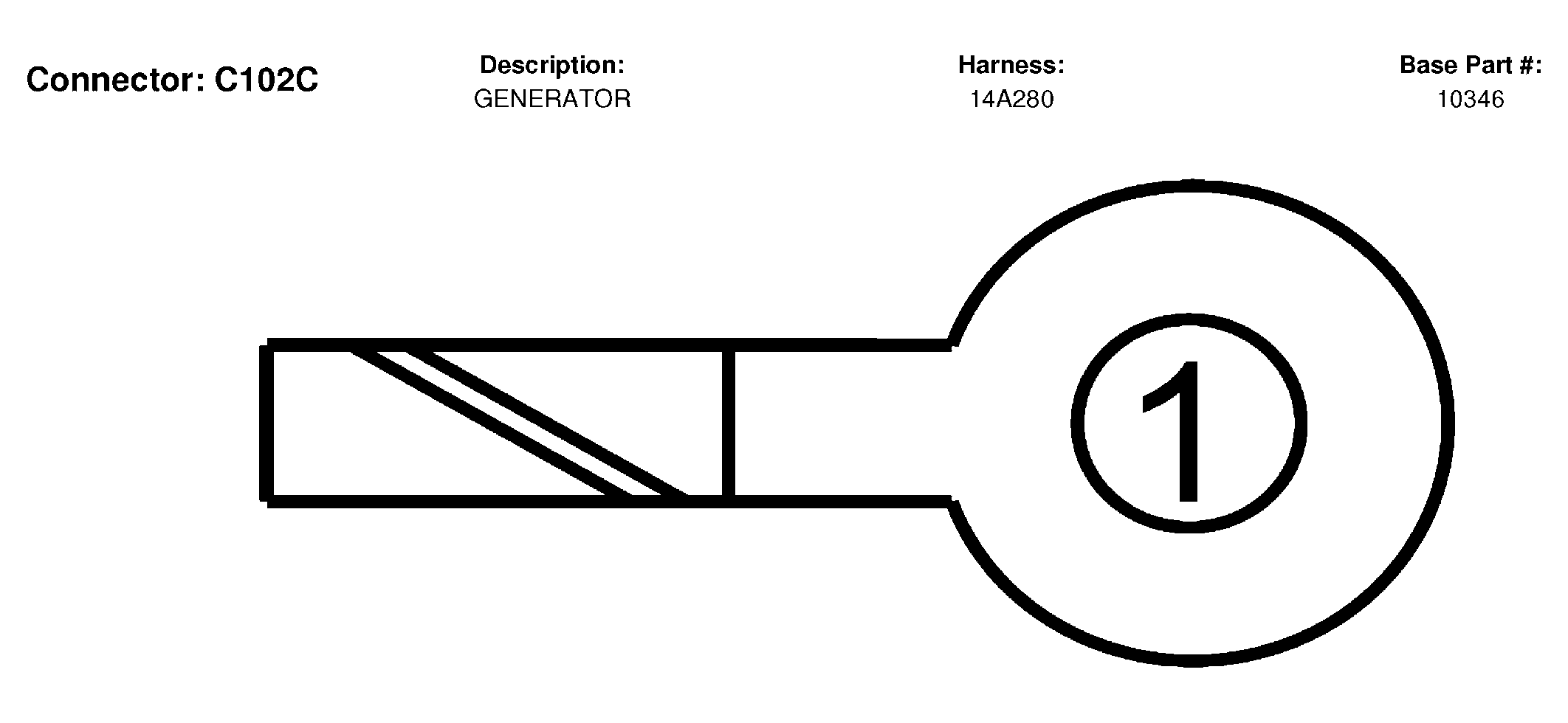

Fig 1: Generator Connector End View (C102C)
G03993185Courtesy of FORD MOTOR CO.
C102C CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 38 (BK-OG) 06 Voltage supplied at all times (overload protected)
