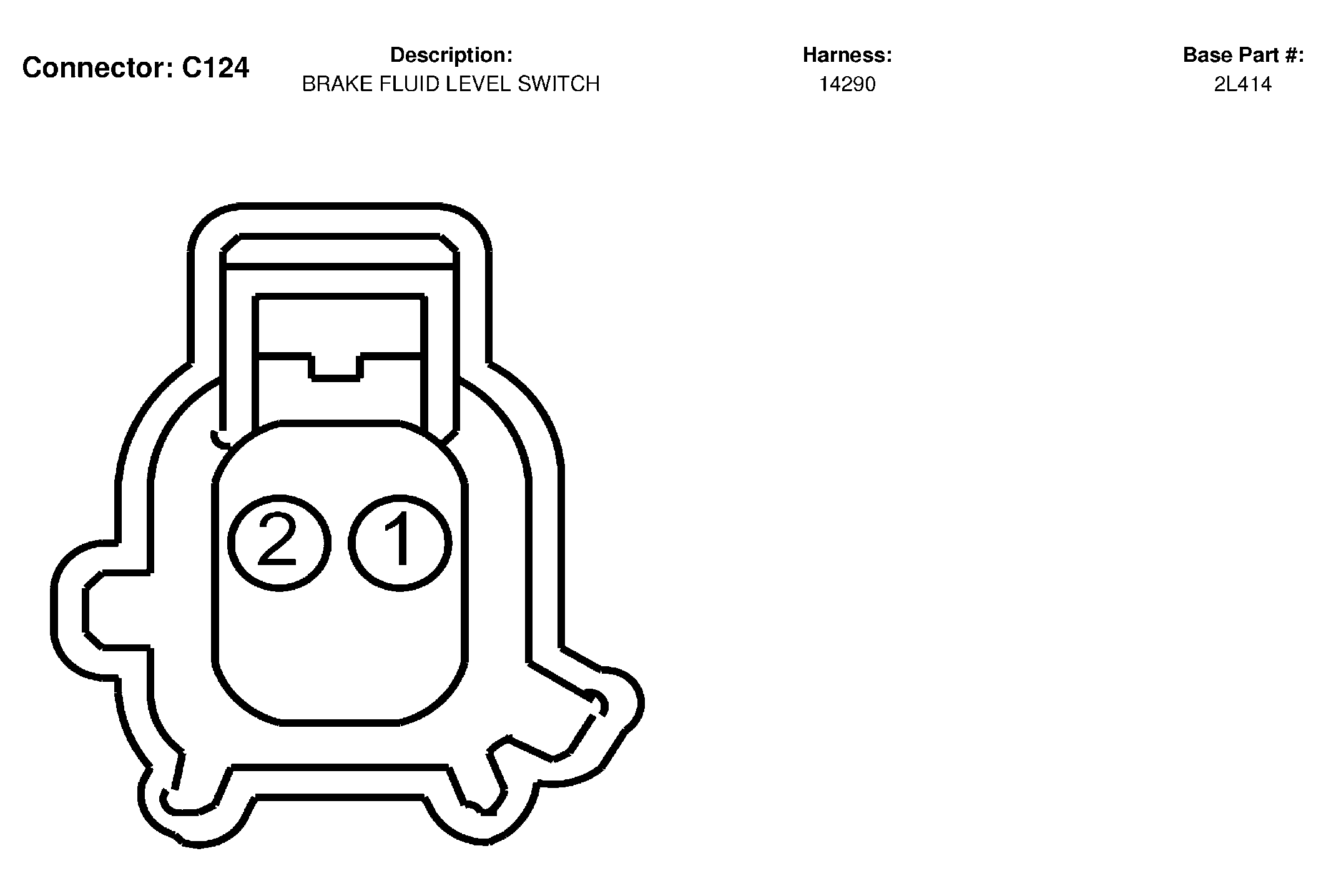

Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO. C124 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
512 (TN-LG) |
20 |
Brake fluid level switch, return |
|
| 2 |
128 (VT-YE) |
20 |
Brake fluid level switch signal |
|
