Forward/Coast/Direct Clutches: Material

MATERIAL SPECIFICATION CHART

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®

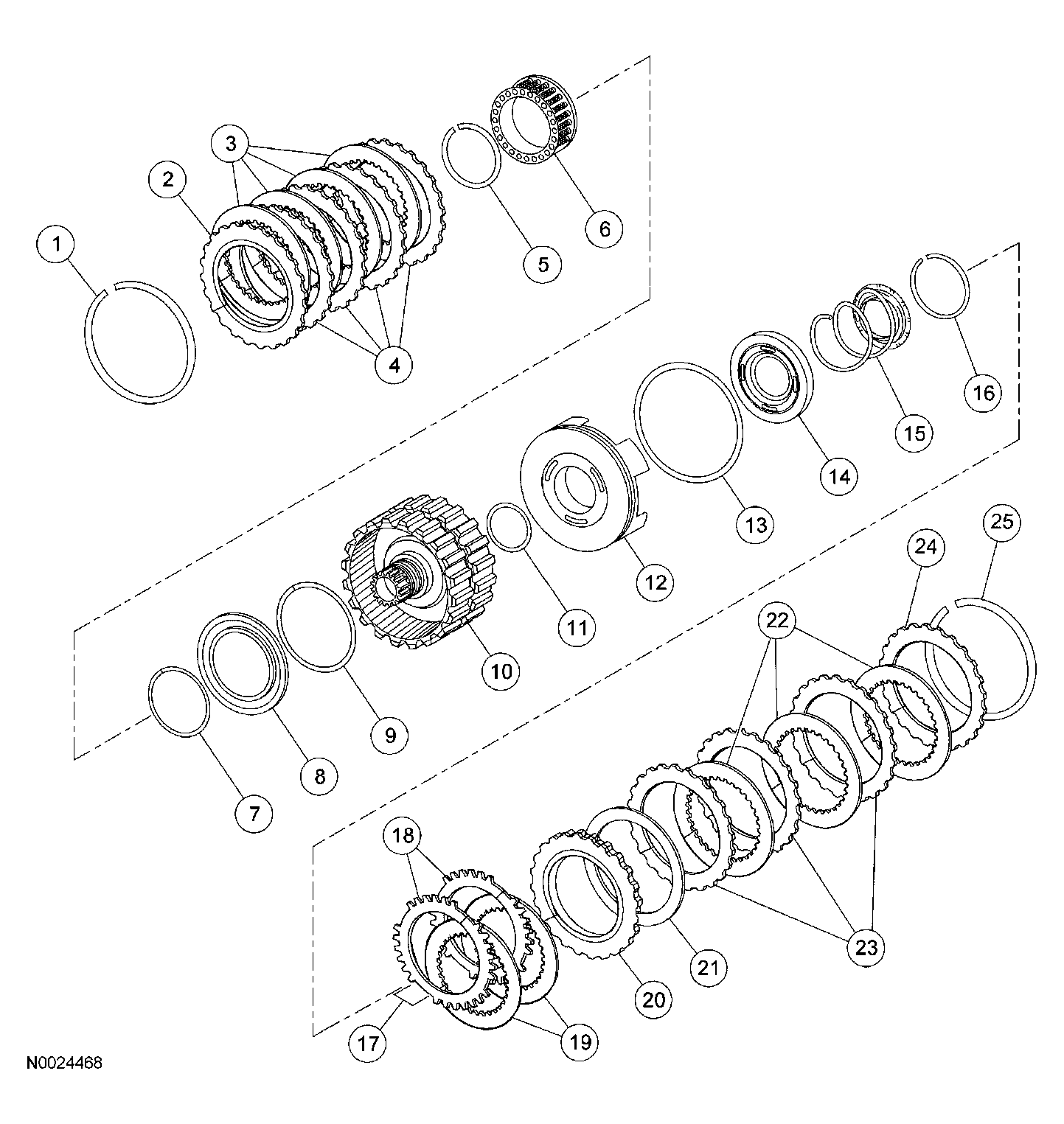

Fig 1: Disassembling Forward/Coast/Direct Clutches
G03901000Courtesy of FORD MOTOR CO.

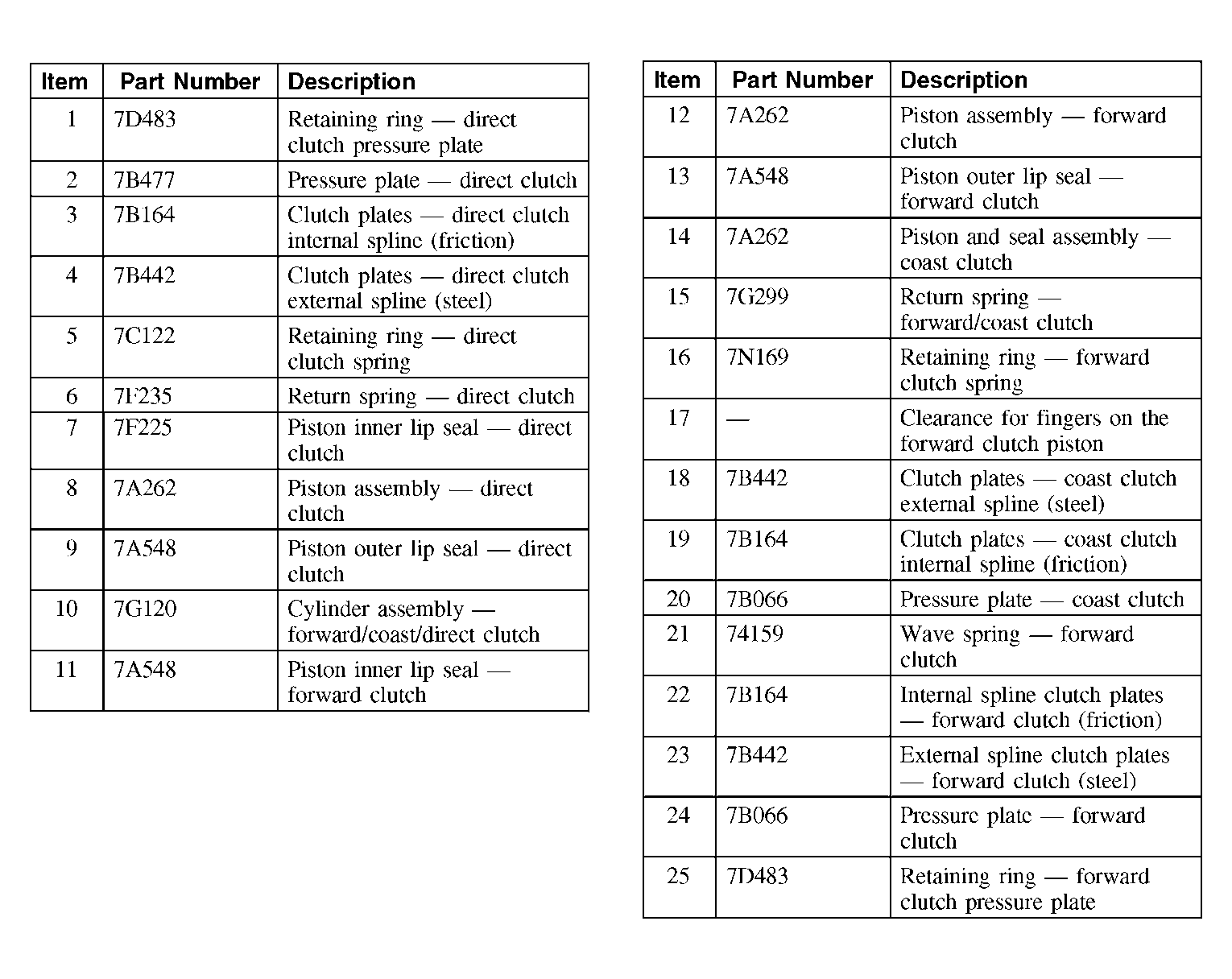

Fig 2: Forward/Coast/Direct Clutches Parts Description Chart
G03901001Courtesy of FORD MOTOR CO.
