Home >> Ford >> 2005 >> Escape Base, 3.0 1, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor - 2.3L >> Notes

Starter Motor - 2.3L: Notes

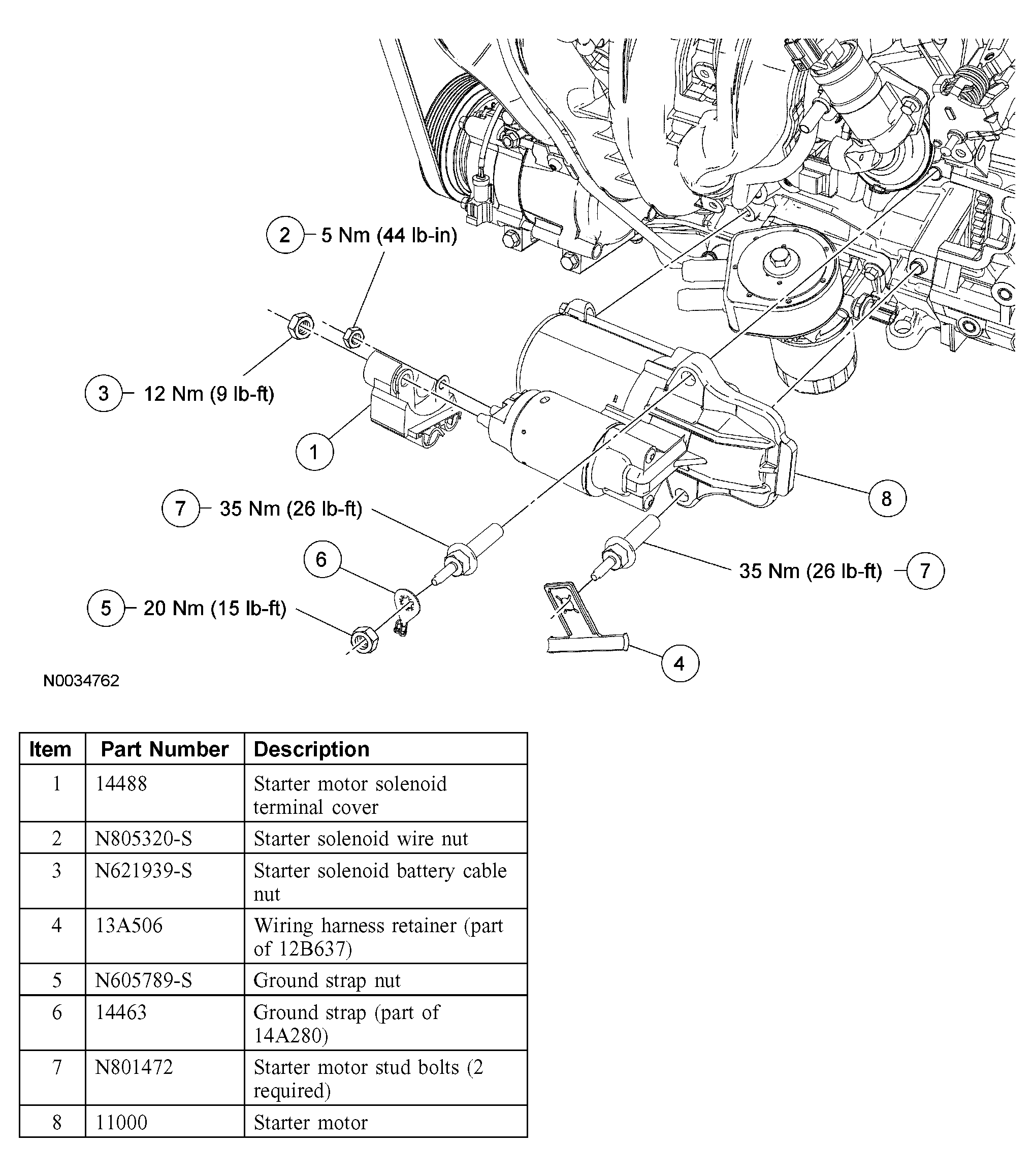

Fig 1: Removing Starter Motor (2.3L) With Torque Specifications

G03900433

Courtesy of FORD MOTOR CO.
